- Page 1 GS748T Smart Switch Hardware Installation Guide NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA 202-10232-01 January 2007...
-
Page 2: Statement Of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. -
Page 3: Canadian Department Of Communications Radio Interference Regulations
EN 55 022 and EN 55 024 Statements This is to certify that the NETGEAR GS748T Gigabit Smart Switch is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class A (CISPR 22) and EN 55 024. - Page 4 95054, declare under our sole responsibility that the model FS728TP: ProSafe™ 24 Port 10/100 Smart Switch with 4 Gigabit Ports and 24 Port PoE complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: a) This device may not cause harmful interference and b) This device must accept any interference received, including interference that may cause undesired operation."...
-
Page 5: Table Of Contents
Backbone Switching ...3-2 Chapter 4 Installation Step 2: Installing the Switch ...4-2 Installing the Switch on a Flat Surface ...4-2 Installing the Switch in a Rack ...4-2 Step 3: Checking the Installation ...4-3 Step 4: Connecting Devices to the Switch ...4-3 Step 5: Installing a SFP GBIC Module ...4-4... - Page 6 Appendix A Troubleshooting Troubleshooting Chart ... A-1 Additional Troubleshooting Suggestions ... A-2 Network Adapter Cards ... A-2 Configuration ... A-2 Switch Integrity ... A-2 Appendix B Technical Specifications Appendix C Glossary v1.0, January 2007...
-
Page 7: About This Manual
The NETGEAR ® GS748T Smart Switch™ Hardware Installation Guide describes how to install, configure, and troubleshoot the GS748T Gigabit Smart Switch. The information in this manual is intended for readers with intermediate computer and Internet skills. Conventions, Formats, and Scope The conventions, formats, and scope of this manual are described in the following paragraphs: •... -
Page 8: How To Use This Manual
• button to access the full NETGEAR, Inc. online knowledge base for the product model. • Links to PDF versions of the full manual and individual chapters. -
Page 9: How To Print This Manual
Click the print icon in the upper left of your browser window. Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature. GS748T Smart Switch Hardware Installation Guide v1.0, January 2007... -
Page 10: Revision History
GS748T Smart Switch Hardware Installation Guide Revision History Document Part Version Number Number 202-10232-01 Description Document created v1.0, January 2007... -
Page 11: Introduction

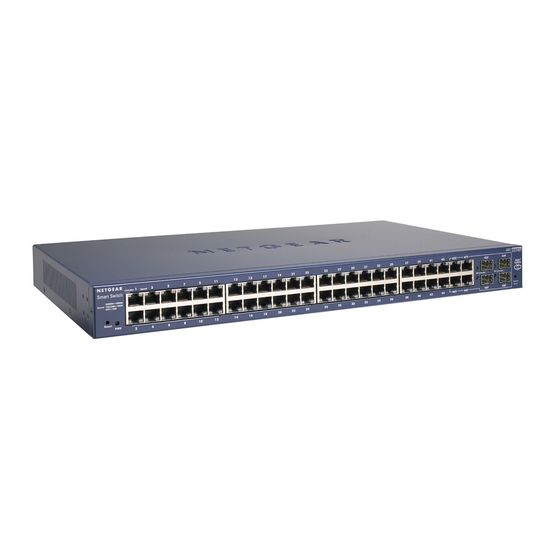

Congratulations on your purchase of the NETGEAR GS748T Gigabit Smart Switch! Your NETGEAR Switch is a state-of-the-art, high-performance, IEEE-compliant network solution designed for users who require a large number of ports and want the power of Gigabit connectivity to eliminate bottlenecks, boost performance, and increase productivity. There are 48 twisted-paired ports with 4 SFP GBIC slots on the front panel of the switch which support non-stop 10/100/1000 networks. -
Page 12: Overview
(CoS) for traffic prioritization. These features, and more, enable you better to understand and control your network. Your NETGEAR GS748T Gigabit Smart Switch can be free-standing or rack-mounted in a wiring closet or equipment room. It is IEEE-compliant and offers low latency for high-speed networking. -
Page 13: Features
Features The following list identifies the key features of the NETGEAR GS748T Gigabit Smart Switch. • Forty-eight 10/100/1000 Mbps auto-sensing Gigabit-Ethernet switching ports • Four SFP GBIC combo Gigabit Ethernet slots for optional fiber connectivity • Reset Button • Factory Defaults Button •... - Page 14 GS748T Smart Switch Hardware Installation Guide • Full-duplex IEEE 802.3x pause frame flow control • LED indicators for port status monitoring: • Power LED indicates power on/off status • Link/Act LED indicates link status and activity • SFP GBIC Link/Act LED indicates link status and activity •...
-
Page 15: Package Contents
Package Contents Figure 1-1 shows the package contents of the NETGEAR GS748T Gigabit Smart Switch. Package Contents Figure 1-1 Verify that your package contains the following: • GS748T Gigabit Smart Switch • Rubber footpads for tabletop installation • Power cord •... - Page 16 GS748T Smart Switch Hardware Installation Guide Introduction 1.0, January 2007...
-
Page 17: Physical Description
This chapter describes the hardware features of the NETGEAR GS748T Gigabit Smart Switch. Topics include: • Front and back panels • 10/100/1000 Mbps auto-sensing RJ-45 ports • SFP GBIC Module bay • LED descriptions • Reset button • Factory defaults button... -
Page 18: 10/100/1000 Mbps Rj-45 Ports
IEEE 802.3Z 1000 Base-SX Standard. LED Descriptions The front panel of the NETGEAR GS748T Gigabit Smart Switch comprises LEDs that provide a concise display of link, port speed, and activity. The following table summarizes the function of these LEDs. -
Page 19: Reset Button
This action is equivalent to switching the unit power off and back on. The last saved configuration is loaded into the switch as it resets. To operate the reset button, insert a device such as a paper clip into the opening to press the recessed button. The front-panel LEDs should extinguish and light again as the switch performs its Power On Self Test (POST). -
Page 20: Restore Factory Defaults Button
Figure 2-3 Reset Button of the GS748T Gigabit Smart Switch Restore Factory Defaults Button The Restore Factory Default button of the GS748T Smart Switch enables you to clear the current settings and return the switch to its factory default configuration. This function clears all settings, including the password, VLAN settings, and port configurations. - Page 21 GS748T Smart Switch Hardware Installation Guide Figure 2-4 Restore Factory Defaults Button of the GS748T Gigabit Smart Switch Physical Description v1.0, January 2007...
- Page 22 GS748T Smart Switch Hardware Installation Guide Physical Description v1.0, January 2007...
-
Page 23: Applications
Backbone switching Desktop Switching Your NETGEAR GS748T Gigabit Smart Switch can be used as a desktop switch in a small network that gives users 1000 Mbps access to a file server. With full-duplex mode enabled, the switch port connected to the server or PC can provide 2000 Mbps throughput. -
Page 24: Backbone Switching
GS748T Smart Switch Hardware Installation Guide Backbone Switching You can use your GS748T Gigabit Smart Switch as a backbone switch in a small network that gives users high-speed access to servers and other network devices. Figure 3-2 Example of Backbone Switching Applications v1.0, January 2007... -
Page 25: Installation
This chapter describes the installation procedures for your NETGEAR GS748T Gigabit Smart Switch. Switch installation involves the following steps: 1. Preparing the site 2. Installing the switch 3. Checking the installation 4. Connecting devices to the switch 5. Installing an SFP GBIC module 6. -
Page 26: Step 2: Installing The Switch
Installing the Switch in a Rack To install the switch in a rack, use the 19-inch rack-mount kit (supplied with your switch) with the following procedure (refer to Figure 4-1, “ Mounting the Switch in a 1. -
Page 27: Step 3: Checking The Installation
4. Support the weight of the switch and use four pan-head screws with nylon washers to attach it to the rack; use a #2 Phillips screwdriver to tighten the screws. Figure 4-1 Mounting the Switch in a Rack Step 3: Checking the Installation Before you apply power, inspect the equipment thoroughly to: •... -
Page 28: Step 5: Installing A Sfp Gbic Module
The following procedure describes how to install an optional SFP GBIC module into one of the SFP GBIC module bays of the switch. Note: Contact your NETGEAR sales office to buy these modules. If you do not want to install a SFP GBIC module, skip this procedure. -
Page 29: Step 6: Applying Ac Power
Figure 4-3 Installing a SFP GBIC Module into GS748T Step 6: Applying AC Power Because he NETGEAR GS748T Gigabit Smart Switch has no ON/OFF switch, AC power must be controlled by means of the IEC power cord connection. Select an appropriate unswitched, grounded AC facility outlet so as to avoid any future inadvertent power interruptions. -
Page 30: Step 7: Management Through A Web Browser Or Utility Program (Initial Configuration)
As a result, you can improve the overall performance of your network. After you power-up the switch for the first time, you can configure it using a Web browser or a utility program called Smartwizard Discovery. For more information about managing the switch, see the User Manual on the Smart Switch Resource CD. -
Page 31: Appendix A Troubleshooting
This chapter provides information about troubleshooting the NETGEAR GS748T Gigabit Smart Switch. Information is supplied as: • A Troubleshooting chart • Additional troubleshooting suggestions Troubleshooting Chart Table A-1 lists symptoms, causes, and solutions of possible problems. Table A-1. Troubleshooting Chart... -
Page 32: Additional Troubleshooting Suggestions
Ethernet specification limitations. Switch Integrity If required, verify the integrity of the switch by resetting it. To do this, use the Tools> Reset command or remove AC power from the switch and then reapply it. If the problem persists, contact NETGEAR technical support. -
Page 33: Technical Specifications
Appendix B Technical Specifications This appendix provides technical specifications for the NETGEAR GS748T Gigabit Smart Switch. Network Protocol and Standards Compatibility IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000Base-X IEEE 802.3x flow control Management IEEE 802.1Q Static VLAN (Up to 256) Port-based VLAN (Up to 48) IEEE 802.1p Class of Service (CoS) - Page 34 GS748T Smart Switch Hardware Installation Guide Performance Specifications Forwarding modes: Store-and-forward Bandwidth: 96 Gbps Network latency: Less than 20 microseconds for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission Buffer memory: 512 KB embedded memory per unit...
- Page 35 GS748T Smart Switch Hardware Installation Guide Electromagnetic Immunity EN 55022 (CISPR 22), Class A Safety CE mark, commercial CUL 60950 (Listed)/ EN60950 (Low Voltage Directive)page 3, see page 3, see Modules AGM731F 1000BASE-SX SFP GBIC for multimode fiber AGM732F 1000BASE-LX SFP GBIC for single mode fiber Technical Specifications v1.0, January 2007...
- Page 36 GS748T Smart Switch Hardware Installation Guide Technical Specifications v1.0, January 2007...
-
Page 37: Appendix C Glossary
Class of Service A term to describe treating different types of traffic with different levels of service priority. Higher priority traffic gets faster treatment during times of switch congestion Collision A term used to describe two colliding packets in an Ethernet network. - Page 38 Flow control A congestion- control mechanism. Congestion is caused by devices sending traffic to already overloaded port on a switch. Flow control prevents packet loss and temporarily inhibits devices from generating more traffic until the period of congestion ends.
- Page 39 VLAN Virtual LAN. A logical association that allows users to communicate as if they were physically connected to a single LAN, independent of the actual physical configuration of the network. Glossary GS748T Smart Switch Hardware Installation Guide v1.0, January 2007...
- Page 40 GS748T Smart Switch Hardware Installation Guide Glossary v1.0, January 2007...
- Page 42 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA January 2007...
