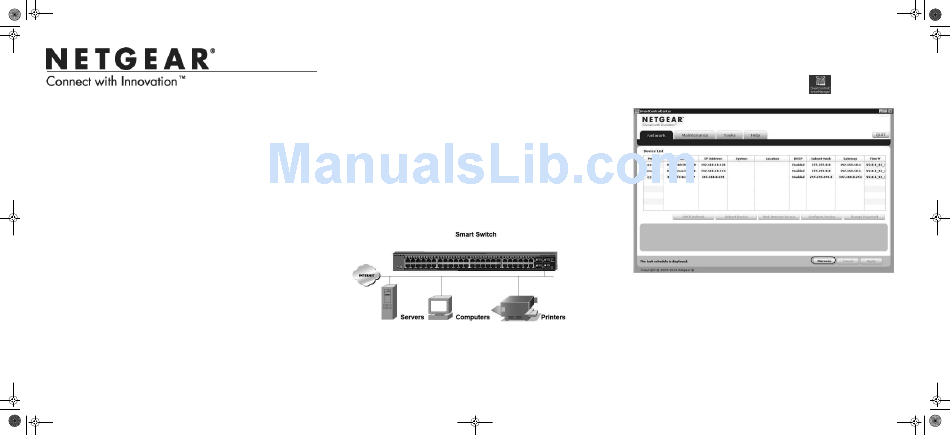

GS748Tv4 IG_10Nov10.fm Page 1 Friday, November 19, 2010 11:25 AM
NETGEAR GS748T Smart Switch™

Start Here

Verify Package Contents

NETGEAR Smart Switch
Rubber footpads for tabletop installation
Power cord
Rack-mount kit for installing the switch in a 19-inch rack
Installation Guide
Smart Switch Resource CD that includes the Smart Control Center Utility and
GS748T Hardware Installation Guide. (A link to the online GS748T Software
Administration User's Manual is on the Resource CD.)
Then, Prepare a PC with an Ethernet adapter and a CD
ROM drive
Prepare a PC with an Ethernet adapter and a CD ROM drive.

Next, Install the Smart Control Center Utility on a PC

Installation Guide
1.
Insert the Resource CD into your CD drive.
2.
Run the Setup program to install the Smartwizard Discovery. The Installation
Wizard will guide you through the installation.

Next, Connect Your Smart Switch in the Correct Order

These instructions assume you are using DHCP in your network. If you are using
static IP addressing in your network, configure the switch IP address before
connecting it to your network. In the absence of a DHCP server, the switch will
default to 192.168.0.239 for its IP address. To configure the switch before
connecting it to your network:
1.
Set up the PC with a Static IP address in the 192.168.0.x subnet, and connect
the PC to the switch. Then, use the Smart Control Center Utility to configure
the switch.
2.
Connect each PC to an RJ-45 network port on the switch front panel.
Use category 5 (Cat5) unshielded twisted-pair (UTP) cable terminated with an
RJ-45 connector to make these connections.
3.
Connect the switch to your network.
4.
Power on the switch.
5.
Verify that the PC with the Smart Control Center Utility is on the same subnet
as the switch.
Now, Configure the Switch with the Smart Control
Center Utility
1.
Double-click the Smart Control Center Utility icon
Windows Start menu Programs to run the utility and view this screen.
2.
Click Discover to find your switch in the network.
on your desktop or in
