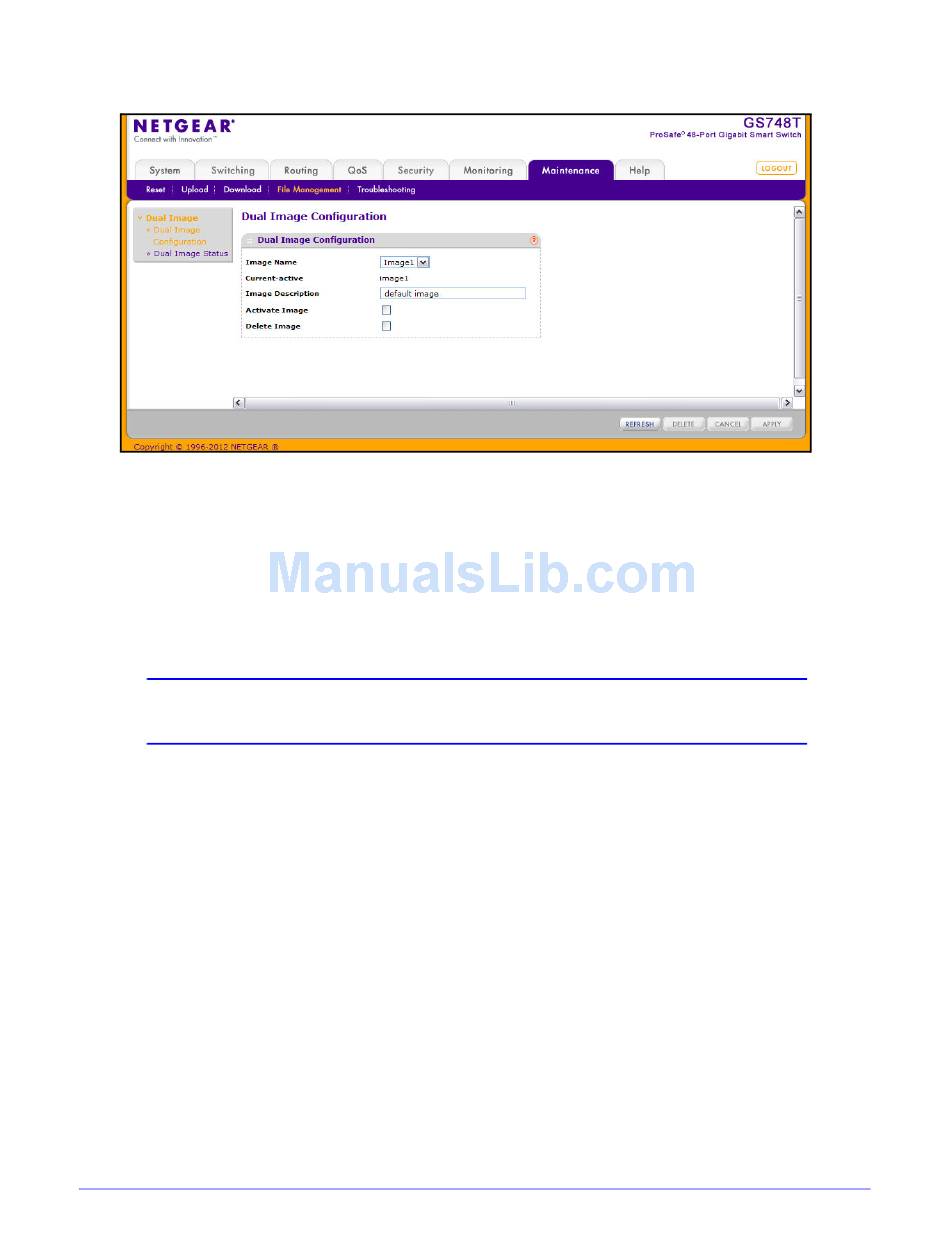

To configure Dual Image settings:
1. Select the image to configure.
The Current-active field displays the name of the active image.
2. To configure a descriptive name for the selected software image, type the name in the
Image Description field.
3. To set the selected image as the active image, select the Active Image check box.
Note: After activating an image, you must perform a system reset of the
switch in order to run the new code.
4. To remove the selected image from permanent storage on the switch, select the Delete
Image check box. You cannot delete the active image.
5. Click Cancel to cancel the operation on the screen and reset the data on the screen to the
latest value of the switch.
6. Click Apply to apply the settings to the switch.
