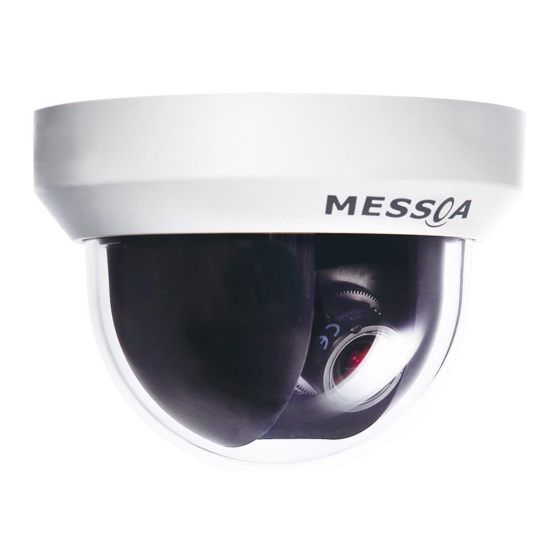

- Page 1 Mounting Installation Guide NDF820(PRO)/821(PRO) Dome Camera Rev A2...
-
Page 2: Table Of Contents
Mounting Installation Guide Table of Contents 1. Introduction .....................3 Before Installation ..................3 2. Ceiling Surface Mount................3 3. L-Type Wall Mount..................4 Dimensions – SAB749-1W ..............6 4. Cable Management Wall Mount.............7 Dimensions – SAB755................9 5. Pendant Mount ..................10 Dimensions – SAB755M................11 ... -
Page 3: Introduction
This mounting installation guide is intended to provide installers with basic instructions of how to mount the NDF820(PRO)/NDF821(PRO)* dome camera (hereafter referred to as the camera) using optional accessories from MESSOA. If you are using other specialized mounting accessories or tools, always refer to the instruction document supplied with that product. -
Page 4: L-Type Wall Mount
Mounting Installation Guide 3. L-Type Wall Mount Before beginning the following procedure, please make sure to have these items ready: L-Type Wall Mount Bracket M4x20mm flathead (SAB749-1W) machine screw x4 (supplied with the camera) 1. Loosen the screw(s) that securing the dome cover to remove the dome cover. - Page 5 Mounting Installation Guide Note that by using the supplied M4x20 screws in Step 3, the screws will protrude from the bracket surface by about 12.5mm. 4. Adjust the lens to the desired angle. 5. Re-attach the inner liner and the dome cover.
-
Page 6: Dimensions - Sab749-1W
Mounting Installation Guide Dimensions – SAB749-1W 6 ... -
Page 7: Cable Management Wall Mount
Mounting Installation Guide 4. Cable Management Wall Mount Before beginning the following procedure, please make sure to have these items ready: Cable Management Wall Mount M4x20 flathead machine screw x4 Bracket (SAB755) (supplied with the camera) 1. Loosen the screw(s) that secure the dome cover to remove the dome cover. - Page 8 Mounting Installation Guide 3. Attach the camera to the dome cap using four M4x20 flathead machine screws (supplied with the camera). 4. Adjust the lens to the desired angle. 5. Re-attach the inner liner and the dome cove. 8 ...
-
Page 9: Dimensions - Sab755
Mounting Installation Guide Dimensions – SAB755 ... -
Page 10: Pendant Mount
Mounting Installation Guide 5. Pendant Mount Before beginning the following procedure, please make sure to have these items ready: Dome Cap M4x20 flathead machine Pendant pipe (SAB755M) screw x4 (supplied with the (User-supplied) camera) 1. Remove the dome cover and the inner liner. -
Page 11: Dimensions - Sab755M
Mounting Installation Guide 3. Adjust the lens to the desired angle before next step. 4. Re-attach the inner liner and dome cover. Dimensions – SAB755M ...
