Please read this quick start guide thoroughly before use!

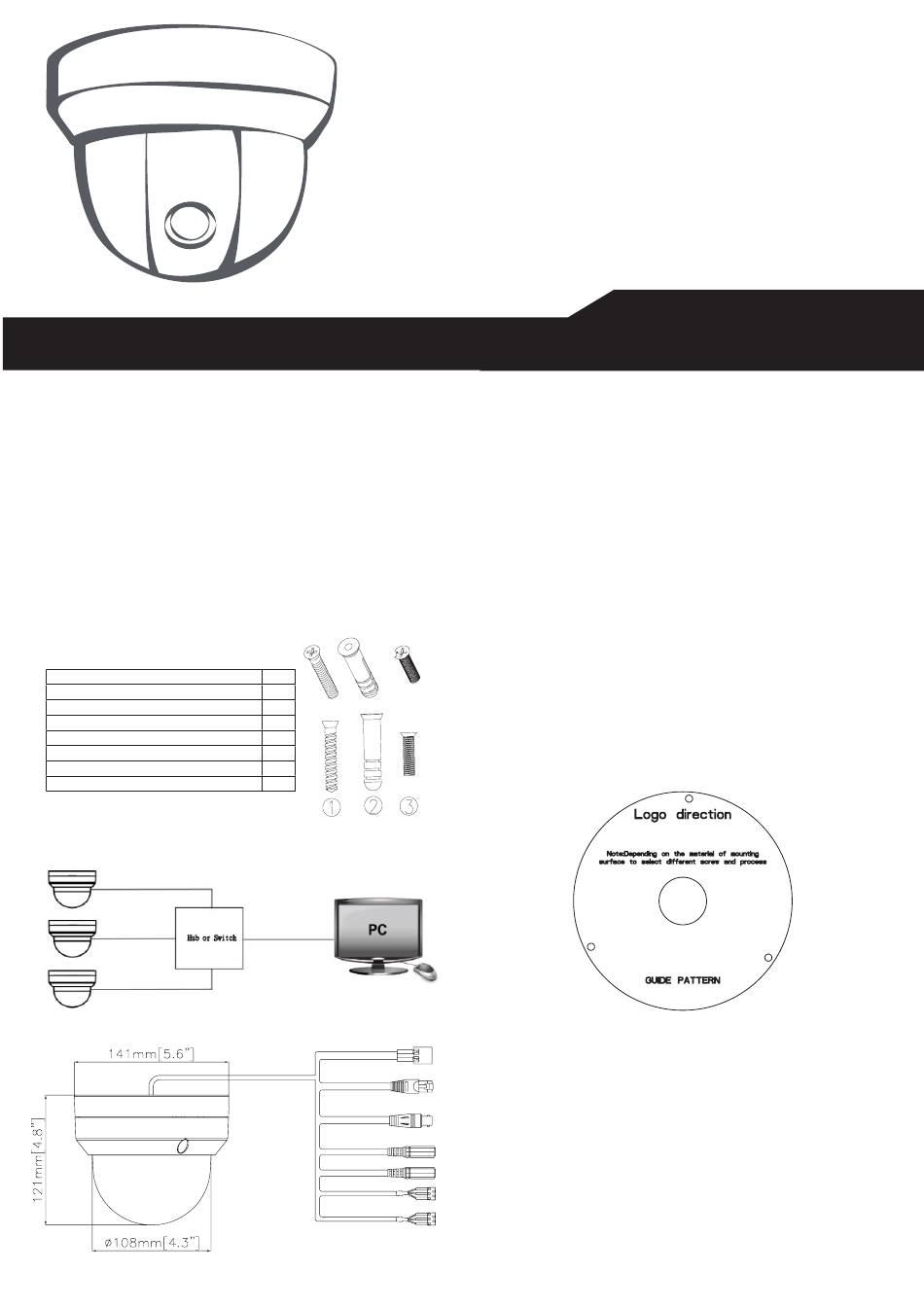

FIXED OUTDOOR DOME NETWORK CAMERA

• SAFETY

1. This quick start guide is designed for users who have adequate
knowledge of network camera.
2. Do not touch the sensor imaging surface. Use soft cloth moistened
with alcohol to clean the surface if it is touched accidentally.
3. Ensure the supply voltage is correct as specified for the
particular variant of camera before operation.
4. Do not attempt to service this unit yourself unless you are
authorised to do so. Opening the camera may expose you to
dangerous voltages or other hazards. Refer all servicing to qualified
personnel only.
5. For more detailed installation and operation, please refer to the full
operating instructions on CD.

• PACKAGE CONTENTS

Network Dome Camera
Quick Start Guide
CD-ROM (User Manual & IP Finder)
Guide Pattern Sticker
RJ45 Female / Female Coupler
(1) Flat Head Screw (Tapping Type)
(2) Plastic Anchor
(3) Flat Head Screw (Machine Type)

• CONNECTION CONCEPT

• CONNECTORS AND FUNCTIONS

x1
x1
x1
x1
x1
x3
x3
x3
Quick Start Guide
P32-831020-000A 831 A2
1. Power In (Red+/Black-): power connector, Non-heater model:
DC12V/AC24V, Heater model: DC24V/AC24V
2. RJ-45 Ethernet Connector: network connection. Support PoE (Power
over Ethernet) cable. (Note: Heater model does NOT support PoE)
3. BNC: video output
4. Audio Out (Green): audio output
5. Audio In (Red): audio input
6. Alarm Out (Orange): alarm signal output port
Reserved (Green)
RS485 (Yellow)
7. GND: ground (electricity) in electrical circuits
Alarm In 1 (Red): alarm signal input port
Alarm In 2 (Brown): alarm signal input port

• CAMERA INSTALLATION

Mounting the Camera- Ceiling Mount
1. Remove the dome cover and the inner liner.
2. Use the Guide Pattern Sticker to drill the mounting holes.
3. Connect the wiring and optionally insert the SD card.
1
4. Secure the camera base to the surface.
2
For cement surface: Insert the provided plastic anchors into the
three drilled holes. Then secure the camera base to the mounting
3
surface with the provided tapping type screws.
4
For metal plate surface: Do not use the plastic anchors. Just
secure the camera base to the mounting surface with the provided
5
machine type screws.
6
5. Adjust the camera position and focus.
7
6. Install the inner liner and then replace the dome cover.
