Summary of Contents for Messoa NDF831

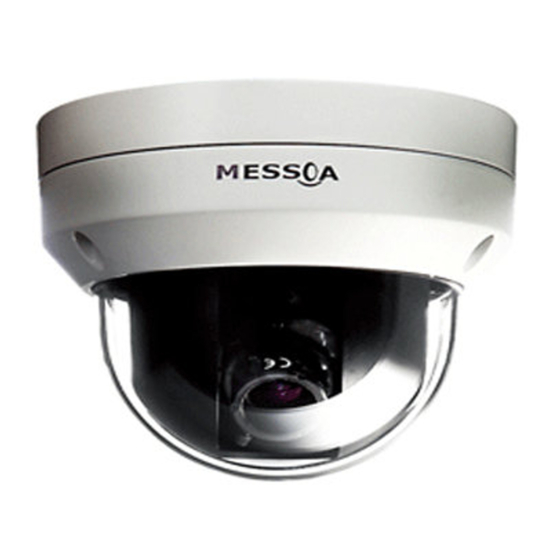

- Page 1 Mounting Installation Guide NDF831/NDR891 Dome Camera Rev A1...
- Page 2 Mounting Installation Guide Table of Contents 1. Introduction .....................3 Before Installation ..................3 2. Surface Mount ..................3 3. Cable Management Wall Mount.............4 Dimensions – SAB755BP................5 2 ...
-
Page 3: Before Installation
Note: Always use the screws as instructed by this guide to ensure proper installation. *The appearance of the NDF831 and NDR891 are very similar. The NDF831 will be used as the example in the illustration. This guide will describe the following mounting methods: ... - Page 4 Mounting Installation Guide 3. Cable Management Wall Mount Before beginning the following procedure, please make sure to have these items ready: Cable Management Wall Mount Bracket (SAB755BP) 1. Use the appropriate metal anchors/nuts (not provided) to attach the SAB755BP to the desired location.
- Page 5 Mounting Installation Guide Note: For waterproof it's suggested to apply sealant to the conduit adapter. You can do this before or after you secure the camera to the adapter. Sealant Dimensions – SAB755BP ...
