Pub. 42004-152B
G A I - T R O N I C S C O R P O R A T I O N
Desk-edge Subsets
Models 611C, 6115, 711-002, and 7115-002
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information which is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
Introduction
Models 711-002 Single-party and 7115-002
Multi-party Desk-edge Subsets are equipped with
handset press-bars for paging operation.
Models 611C Single-party and 6115 Multi-party
Desk-edge Subsets each contain a push-to-page
button on the subset.
Mounting and installation are the same for all of the
models. The only difference in operation is the use
of either the page push button or the press-bar for
paging, depending on the unit.

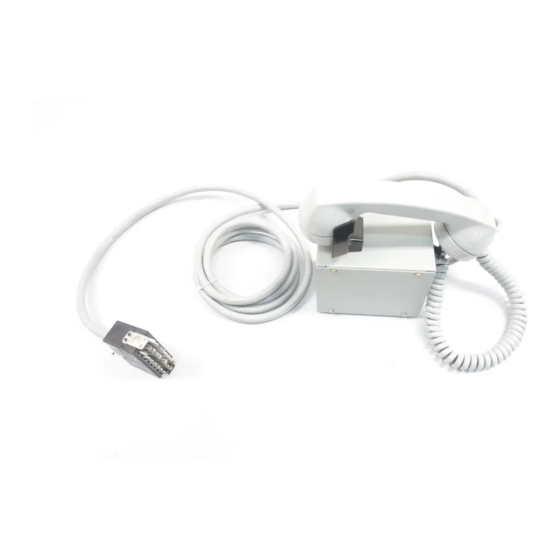

Desk-edge subsets are housed in rugged, compact
steel enclosures. The enclosures require a minimal
amount of space, and a mounting angle bracket is
provided to accommodate a wide variety of mounting
options.

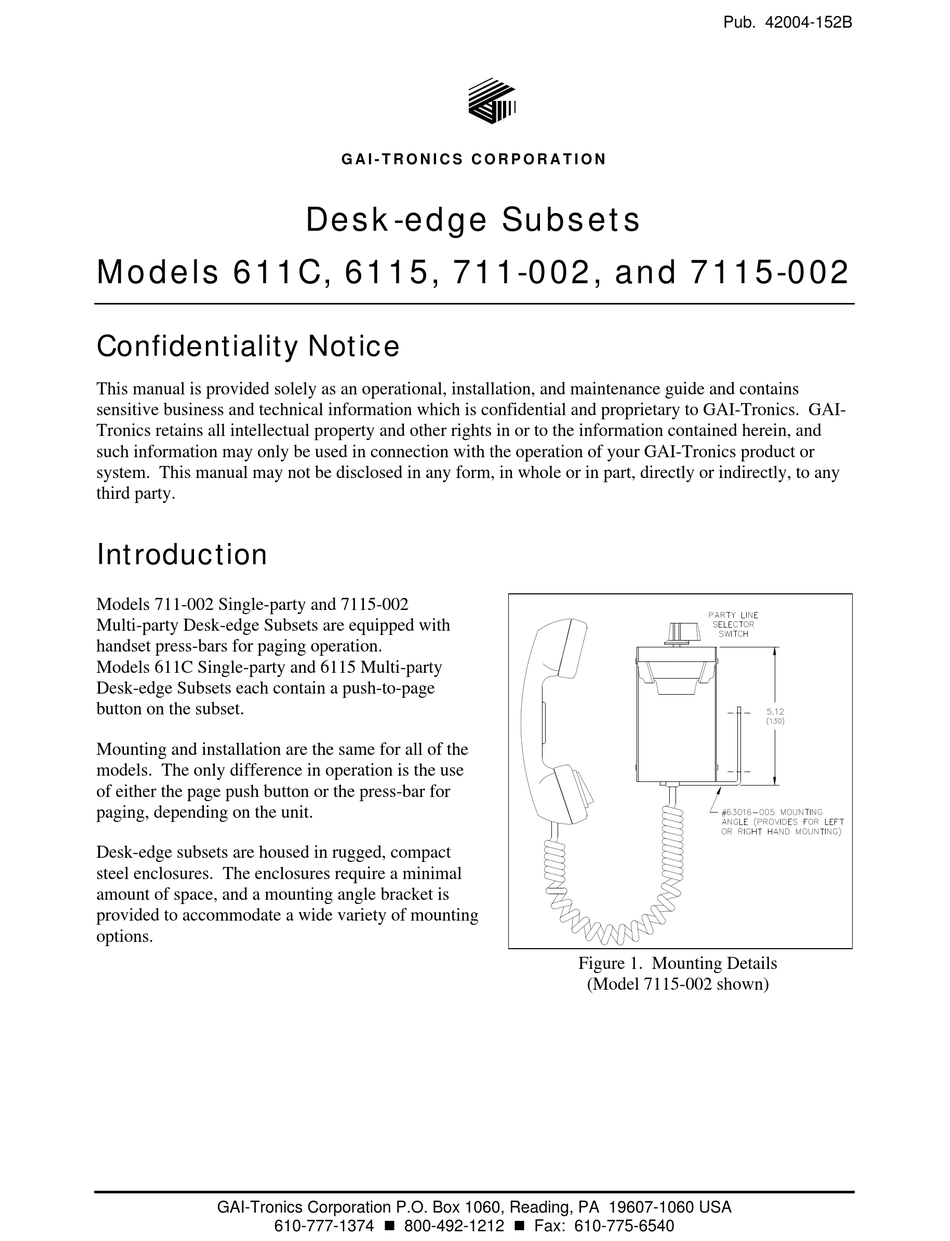

Figure 1. Mounting Details
(Model 7115-002 shown)
