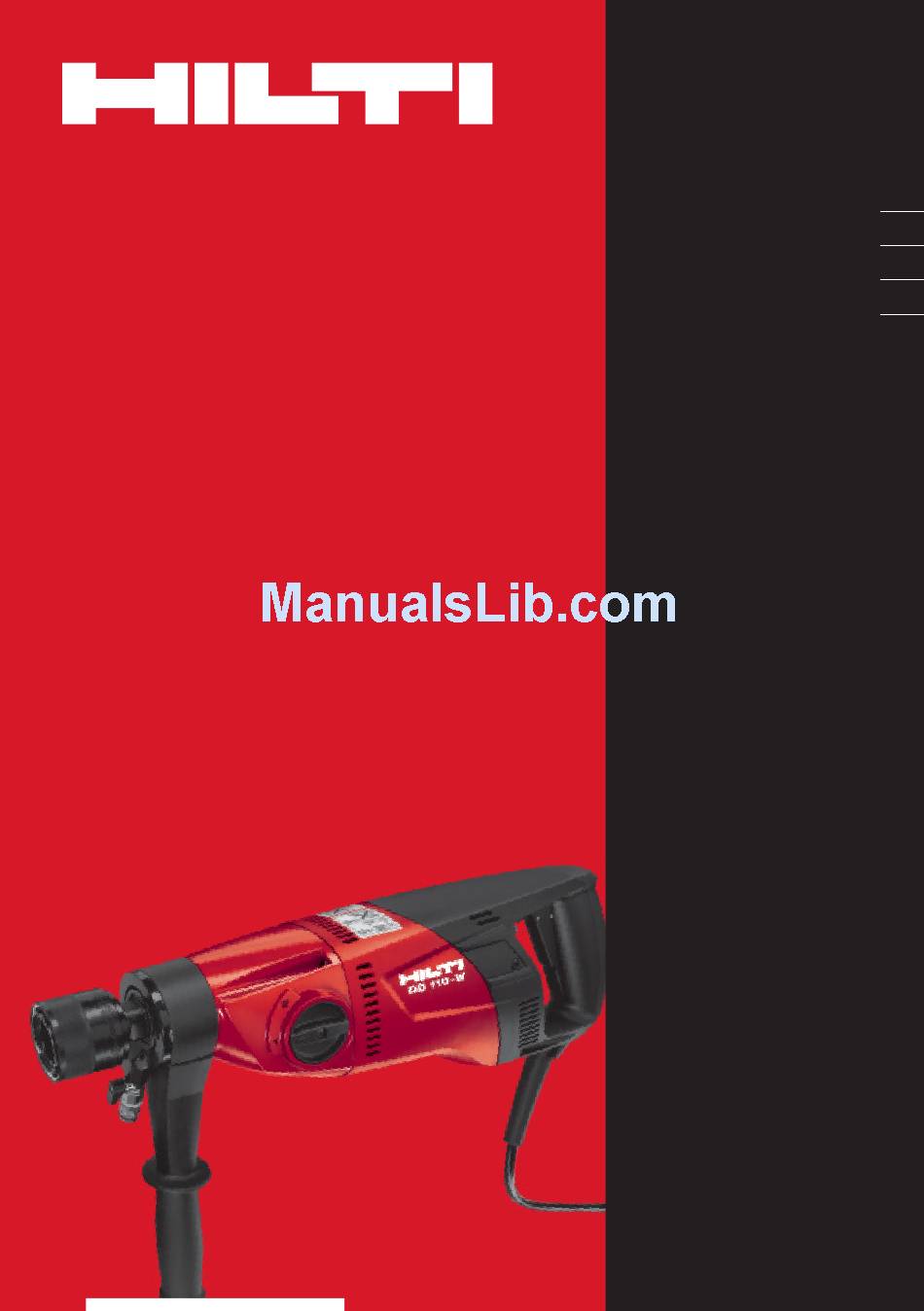

- Page 1 DD 110-W Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 16.05.2014 | Doc-Nr: PUB / 5127573 / 000 / 02...
- Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 16.05.2014 | Doc-Nr: PUB / 5127573 / 000 / 02...
- Page 3 Printed: 16.05.2014 | Doc-Nr: PUB / 5127573 / 000 / 02...
-
Page 4: Table Of Contents
In these operating instructions, the designation “the ma- Always keep these operating instructions to- chine” always refers to the DD 110-W diamond core gether with the machine. drilling machine. Ensure that the operating instructions are... -
Page 5: Description
Drilling into materials that produce conductive dust (e.g. magnesium) is not permissible. Use a suitable vacuum cleaner of a type recommended by Hilti whenever possible. To avoid injury, use only genuine Hilti core bits and DD 110-W accessories. Observe the safety rules and operating instructions for the accessories used. - Page 6 2.5 The items supplied as standard include: Power tool with side handle and chuck Operating instructions Hilti toolbox or cardboard box 2.6 Using extension cords Use only extension cords of a type approved for the application and with conductors of adequate gauge.
-
Page 7: Accessories
3 Accessories Designation Item number, description TPS theft protection system with company card, com- Option pany remote and TPS‑K key Dust removal system 315773 M16 chuck 315774 BI+ chuck 315791 BR chuck 315792 BT chuck 315793 Flow rate indicator 305939 Key chuck 315794 Keyless chuck... -
Page 8: Safety Instructions
5 Safety instructions protection used for appropriate conditions will reduce 5.1 General Power Tool Safety Warnings personal injuries. WARNING c) Prevent unintentional starting. Ensure the switch is in the off‐position before connecting to power Read all safety warnings and instructions. Failure source and/or battery pack, picking up or carrying to follow the warnings and instructions may result the tool. - Page 9 Wear protective gloves when changing core bits. approved, ready-made supply cord available from The core bit may become hot during use. Hilti Customer Service. Check extension cords at Children must be instructed not to play with the regular intervals and replace them if found to be machine.
-
Page 10: Before Use
CAUTION To avoid injury, use only genuine Hilti core bits and DD 110-W accessories. If using a machine with a BI+ chuck, only genuine Hilti core bits may be used with DANGER Do not use damaged core bits. Check the core bits for CAUTION chipping, cracks, or heavy wear each time before use. - Page 11 nificantly. This generally is the case when the segments Set the selector switch according to the core bit diame- reach a height of less than ¹⁄₁₆". ter used. Turn the selector switch to the recommended setting (see section “Description”) while rotating the core CAUTION bit by hand.
- Page 12 Open the chuck (BI+) by turning it in the direction of NOTE the open brackets symbol. A flow meter (accessory) may be fitted between the Push the diamond core bit into the chuck (BI+) from machine’s water supply connector and the water supply the front, turning the core bit until the teeth in the hose.
-
Page 13: Operation
7.1 TPS theft protection system (optional) ble.Have the machine repaired by trained personnel using genuine Hilti spare parts. NOTE Press the “Reset” button on the GFCI ground fault The machine may be equipped with the optional theft circuit interrupter. - Page 14 Plug the machine’s supply cord into the power outlet CAUTION and press the “reset” button on the GFCI. Please read the operating instructions for the vacuum Press the on / off switch on the machine. cleaner for information about disposal of the material When beginning drilling, apply only light pressure collected.
- Page 15 When beginning drilling, apply only light pressure Remove the hole-starting aid from the core bit (op- until the core bit has centered itself and then in- tional operation). crease the pressure. Drill to a depth of 3-5 mm to 10. Position the core bit in the guide kerf and then form a guide kerf (optional operation).
-
Page 16: Care And Maintenance
8 Care and maintenance CAUTION damaged or when the controls do not function faultlessly. If necessary, the power tool should be repaired by Hilti Disconnect the supply cord plug from the power out- let. Service. 8.1 Care of cutting tools and metal parts 8.4 Replacing the carbon brushes 8... - Page 17 See section: 8.4 Replacing the carbon brushes 8 The service indicator blinks. Motor speed error. Have the appliance repaired by Hilti Service. The machine doesn’t start, theft The power tool has not been un- Use the TPS key to unlock the power...
-
Page 18: Disposal
10 Disposal Most of the materials from which Hilti machines or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back old machines and appliances for recycling. Ask Hilti customer service or your Hilti representative for further information. - Page 19 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3543 | 0514 | 00-Pos. 3 | 1 Printed in Germany © 2014 Right of technical and programme changes reserved S. E. & O 351007 / A4 Printed: 16.05.2014 | Doc-Nr: PUB / 5127573 / 000 / 02...
