XVision XAM202-208 Instruction Manual

Colour multi apartment entry camera with 2, 4 or 8 call buttons
Hide thumbs

Advertisement

Quick Links

Download this manual
XAM202-208
Model:
Colour Multi Apartment Entry Camera
with 2, 4 or 8 Call Buttons

Before you begin

•
Please unpack the box carefully and identify that all the parts are present.
•
Do not cut the cables, this will void the warranty.
•
Make sure you use only the recommended power supply. Damage caused to the unit by
incorrect voltage or wiring is not covered by the warranty.
Model:
XAM202-208
Colour Multi Apartment Entry Camera
with 2, 4 or 8 Call Buttons
CCTV

Advertisement

loading
Need help?

Need help?

Do you have a question about the XAM202-208 and is the answer not in the manual?

Questions and answers

Related Manuals for XVision XAM202-208

Summary of Contents for XVision XAM202-208

  • Page 1: Before You Begin

    CCTV XAM202-208 Model: Colour Multi Apartment Entry Camera with 2, 4 or 8 Call Buttons Before you begin • Please unpack the box carefully and identify that all the parts are present. • Do not cut the cables, this will void the warranty.

  • Page 2: Safety Precautions

    Thank you for purchasing this Xvision Multi Apartment Entry Camera. Before operating this product, please read this instruction manual carefully. 1. Safety Precautions 2. Product Description The XAM202, 204 & 208 are an excellent value range of Colour Multi Apartment Cameras with multiple call buttons, designed for ease of use and maximum reliability.
  • Page 3 Multi monitor compatible, allows up to 3 Video Door Entry Monitors (wired in series) to be connected to each call button Compatible with Xvision Door Entry Monitors. One monitor required per call button Suitable for Internal or External use 4. Contents...

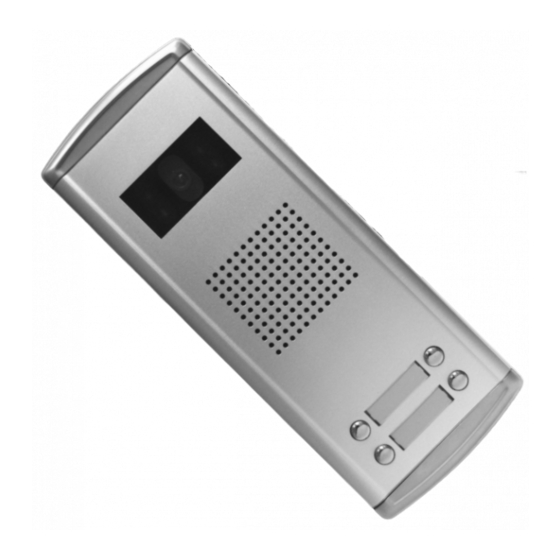

  • Page 4 5. Controls & Parts XAM202 Front Back 1. Camera 6. Camera Angle Adjust 2. Speaker 7. Release connection wire 3. Microphone 8. External Power (optional) 4. Apartment Call Buttons 9. Wiring Terminal Block 5. Apartment Name 10. Fixing hole...
  • Page 5 XAM204 Front Back 1. Camera 6. Camera Angle Adjust 2. Speaker 7. Release connection wire 3. Microphone 8. External Power (optional) 4. Apartment Call Buttons 9. Wiring Terminal Block 5. Apartment Name 10. Fixing hole...
  • Page 6 XAM208 Front Back 1. Camera 6. Camera Angle Adjust 2. Speaker 7. Release connection wire 3. Microphone 8. External Power (optional) 4. Apartment Call Buttons 9. Wiring Terminal Block 5. Apartment Name 10. Fixing hole...
  • Page 7 6. Installation 1. Choose a suitable location to mount the Multi Apartment Entry Camera. The handset should be mounted 1.50 to 1.70m from floor level. 2. Fix the mounting bracket to the wall. 3. Attach the unit to the mounting bracket. 4.
  • Page 8 6. Installation- Notes Use the following points to help you complete a trouble free installation: 1. Do not position the door entry camera in sunlight or where it may be affected by rain The unit is suitable for external use, however it should be mounted in an area where it is sheltered from rain and snow.

  • Page 9: Wiring Diagram

    7. System & Wiring Diagrams 3 Monitors to one Call Button Connection Terminal Functions: R: Red (Audio) B: Blue (GND) Y: Yellow (Power) W: White (Video) Connect to 12V DC Power Supply with minimum 300mA Regulated Output. Connect the RED cable to POSITIVE on the power supply BLUE...
  • Page 10 XAM204 Wiring Diagram Terminal Functions: R: Red (Audio) B: Blue (GND) Y: Yellow (Power) W: White (Video) Connect to 12V DC Power Supply with minimum 300mA Regulated Output. Connect the RED cable to POSITIVE on the power supply and BLUE to NEGATIVE on power supply.
  • Page 11 Specifications Model: XAM202/204/208 Camera Type: Colour Image Sensor: 1/3” Nightvision: Installation: 4 wire cabling Communication Type: Hands Free Max. Wiring Distance: 50m (165 feet) (22AWG, 0.65mm 4 wires) Operating Temperature: -5°C to +60°C Operating Voltage: 12V DC, 100mA...
  • Page 12 CCTV TECHNICAL SUPPORT: For Technical Support for any Xvision product please contact your local distributor. LIMITED WARRANTY: This product is supplied with a 1 Year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.
