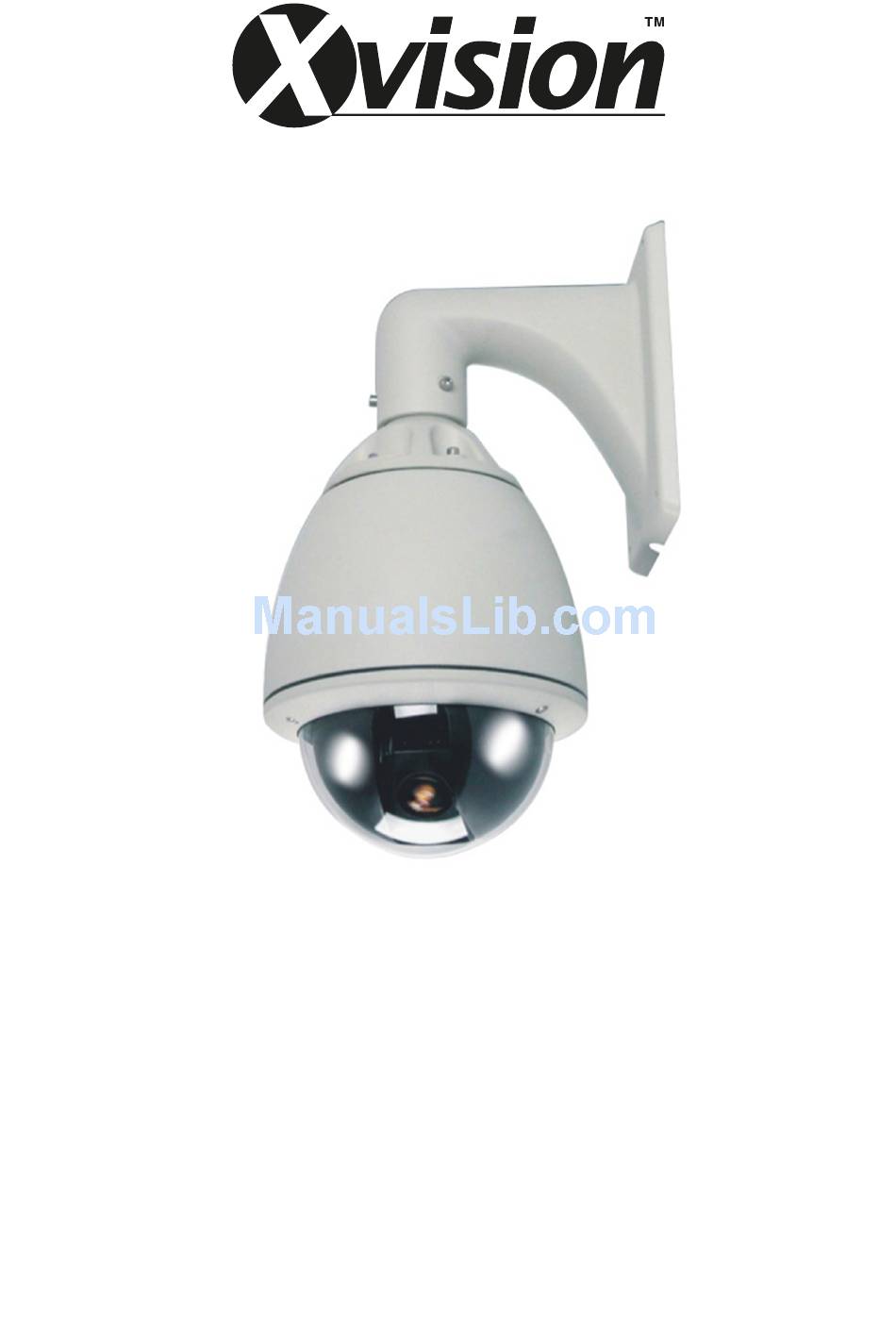

Page 1: User Manual

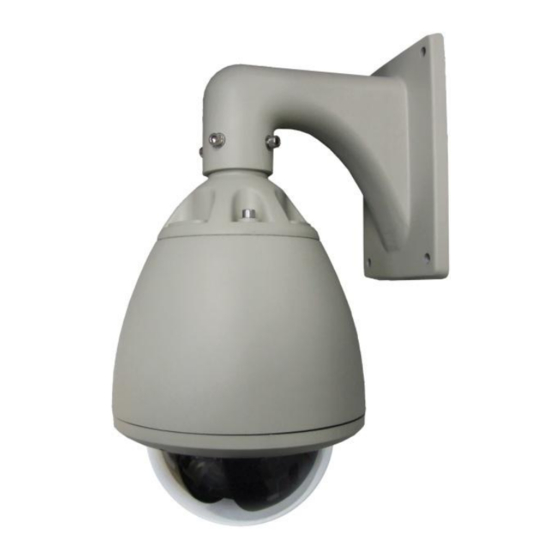

XSD27ZS High Resolution 600 TVL Speed Dome CCTV Camera 27x Optical Zoom User Manual... -
Page 2: Table Of Contents
XSD27ZS - Operating Manual Contents 1. OVERVIEW ............1.1 BRIEF INTRODUCTION AND APPLICATION ..................1.2 PRODUCT FEATURES ................1.3 TECHNICAL INDICATORS 2. HARDWARE INSTALLATION ..................................2.1 ADDRESS SETTING 3. OPERATION INSTRUCTION ............................3.1 MAPPING TABLE FOR PRESET LOCATION ................ - Page 3 XSD27ZS Operating Manual XSD27ZS - Operating Manual Contents ................3.3.8 ALARM LINKAGE ................. 3.3.9 DEFAULTED SETTING 4. TROUBLESHOOTING ................................4.1 TROUBLESHOOTING TABLE...
- Page 4 3. This equipment shall be installed at the site with good ventilation. 4. In case that this equipment does not work normally, please contact supplier and do not disassemble or reform this equipment (Xvision will not take any responsibility for the problem resulted from unapproved reformation or repair).
-
Page 5: Overview
XSD27ZS - Operating Manual OVERVIEW 1.1 BRIEF INTRODUCTION AND APPLICATION As a high-end monitoring product, the integrated smart high-speed dome camera features strong, stable and reliable function, easy operation and installation, etc. It has a good cost performance, and has become the mainstream product in monitoring industry. -
Page 6: Technical Indicators
XSD27ZS - Operating Manual 1.3 TECHNICAL INDICATORS Item Technical Indicator Video standard PAL/NTSC Horizontal rotation scope 360° continuous rotation Vertical rotation scope 0° ～ 90° automatic overturn Horizontal operation speed 0.1～ 300° /s Vertical operation speed 0.1～ 240° /s Prese location running 300°... -
Page 7: Hardware Installation
XSD27ZS - Operating Manual Item Technical Indicator Power-off memory Screen freeze Compatible camera Automatic Identification (LG/SONY/HITACH/CNB/SAMSUNG) Protection grade IP66 Lightining protection 4000V Working temp -35° C ～+35° C HARDWARE INSTALLATION Address setting The address of dome can be set in three ways: Address Dial Switch: when the soft address is closed, the dome address will be determined by the dial switch. - Page 8 XSD27ZS - Operating Manual XSD27ZS Operating Manual Comparison list of address dial switch: Address...
-
Page 9: Operation Instruction
XSD27ZS Operating Manual XSD27ZS - Operating Manual 3 . OPERATION INSTRUCTION 3.1 MAPPING TABLE FOR PRESET LOCATION Preset Location Function 95+CALL Entering the main menu XXX+PRESET Saving some presetting point XXX+CALL Calling some presetting point 40+CALL Operating the first group of preset location scanning... - Page 10 XSD27ZS - Operating Manual 58+CALL Saving the setting of the third group of pattern scanning 59+CALL Saving the setting of the third group of pattern scanning 60+CALL Saving the setting of the third group of pattern scanning 61+CALL Operating the first group of pattern scanning...
- Page 11 XSD27ZS - Operating Manual 82+CALL Closing the privacy shelter grid(for the machines with this function only) 83+CALL Starting backlight compensation (for the movement with this function only) 84+CALL Closing backlight compensation (for the movement with this function only) 85+CALL Starting image freezing function(for the movement with...
-
Page 12: Keyboard Operation
XSD27ZS - Operating Manual 103+CALL Switching linear scanning speed (fast, slow and medium) 105+CALL Starting digital zoom 106+CALL Closing digital zoom 107+CALL 、108+CALL Calling 107 followed by 108 and restarting the dome 109+CALL Starting communication fault indication 110+CALL Closing communication fault indication 3.2 KEYBOARD OPERATION... -
Page 13: Area Scanning
XSD27ZS - Operating Manual 3.2.2 AREA SCANNING There are two ways to set the area of scanning. Using special preset location order Setting of the left boundary: dome is controlled to ideal position and preset location 44 is called to set the left boundary of Region 1... -
Page 14: Menu Set
XSD27ZS - Operating Manual XSD27ZS Operating Manual 3.3 MENU SET 3.3.1 BASIC MENU OPERATION 1. Press control keyboard or use matrix to execute the command of ‘call 95th preset location’ to enter and set main menu 2. After the main menu page appears, press ‘up or down’ icon to move the cursor to the submenu option to be set and press ‘right’... -
Page 15: Camera Setting
XSD27ZS - Operating Manual XSD27ZS Operating Manual 5. Camera : Display the movement type of camera 6. Date of Manufacture: August 2012 7. Manufacturer: Xvision 8. Exit: Exit the sub menu of system information 3.3.4 CAMERA SETTING 1. Zoom Speed: Fast, medium and slow 2. -
Page 16: Scanning Set
XSD27ZS - Operating Manual XSD27ZS Operating Manual 7. Language Setting: English and Chinese 8. Soft Address On and Off: On and Off 9. Soft Address: 001-255 10. Exit: Exit the sub menu without saving the modification 11. Save: Save the settings and exit sub menu 3.3.6 SCANNING SET... -
Page 17: Defaulted Setting
XSD27ZS - Operating Manual XSD27ZS Operating Manual 4. Disarming Time (Hours: Minutes) 5. Presetting Scanning: Linkage preset location scanning No. (0-4) 0 means the scanning without linking presetting 6. Pattern Scanning: Linkage pattern scanning No. (04) 0 means the pattern scanning without linking 7. - Page 18 XSD27ZS - Operating Manual XSD27ZS Operating Manual Phenomenon Possible Cause Countermeasures Error video lines Correct it Normal self-inspection but no Poor video line connection Eliminate it image Camera damage Change it Error connection of control Correct it signal line Unmatched dome address...
