Programming Guide
Publication Number: PGC01107-1110
Apr. 2009
© 2008 RIGOL Technologies, Inc. All Rights Reserved.
DM3000 Series Digital Multimeter
RIGOL

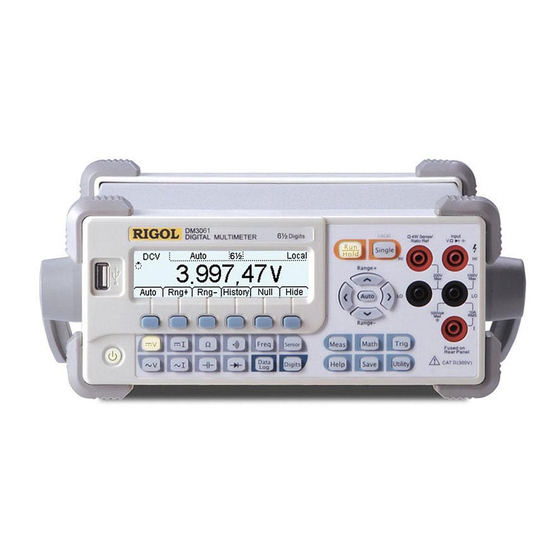

DM3061/2/3/4
DM3051/2/3/4
