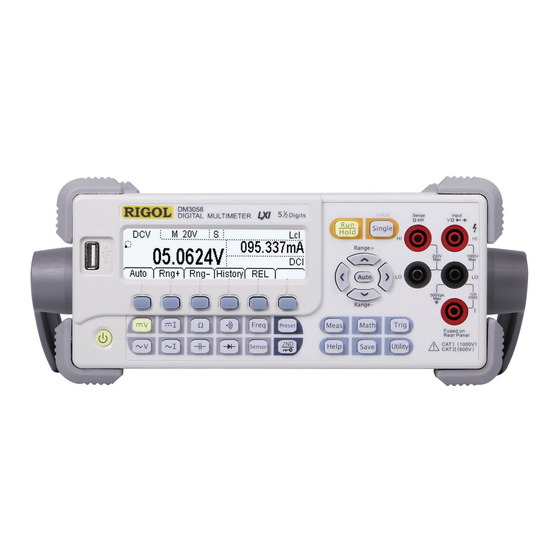

Rigol DM3058 Calibration Manual
Hide thumbs
Also See for DM3058:
- Programming manual (264 pages) ,
- User manual (132 pages) ,
- Performance verification manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rigol DM3058
Summary of Contents for Rigol DM3058
- Page 1 RIGOL Calibration Guide DM3058/DM3058E Digital Multimeter Feb. 2015 RIGOL Technologies, Inc.
- Page 3 Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material.
-
Page 4: Safety Requirement
Please use the specified fuses. Avoid Circuit or Wire Exposure. Do not touch exposed junctions and components when the unit is powered. Do Not Operate With Suspected Failures. If you suspect damage occurs to the instrument, have it inspected by RIGOL DM3058/DM3058E Calibration Guide... - Page 5 RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. Keep Well Ventilation. Inadequate ventilation may cause an increase of instrument temperature which would cause damage to the instrument. So please keep the instrument well ventilated and inspect the intake and fan regularly.
-
Page 6: Safety Terms And Symbols
It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Symbols Used on the Product. These symbols may appear on the product: Hazardous Safety Protective Chassis Test Warning Earth Ground Ground Voltage Terminal DM3058/DM3058E Calibration Guide... -
Page 7: Allgemeine Sicherheits Informationen
Der Betrieb mit offenen oder entfernten Gehäuseteilen ist nicht zulässig. Nichts in entsprechende Öffnungen stecken (Lüfter z.B.) Passende Sicherung verwenden. Setzen Sie nur die spezifikationsgemäßen Sicherungen ein. Vermeiden Sie ungeschützte Verbindungen. Berühren Sie keine unisolierten Verbindungen oder Baugruppen, während das Gerät in Betrieb ist. DM3058/DM3058E Calibration Guide... - Page 8 Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät wieder betreiben, dass eine Untersuchung durch RIGOL autorisiertem Personal durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal durchgeführt werden. Belüftung sicherstellen.
-
Page 9: Sicherheits Begriffe Und Symbole
Verletzung oder Gefährdung hin und bedeutet, dass eine mögliche Beschädigung des Instruments oder anderer Gegenstände auftreten kann. Symbole auf dem Produkt. Diese Symbole können auf dem Produkt erscheinen: Gefährliche Sicherheits- Schutz-erde Gehäusemasse Erde Spannung Hinweis DM3058/DM3058E Calibration Guide... -
Page 10: Document Overview
RIGOL Document Overview This manual introduces how to perform user calibration of RIGOL DM3058/DM3058E digital multimeter. For the operation methods mentioned during the calibration process, please refer to the User's Guide of this product. The Main topics of this manual:... -
Page 11: Table Of Contents
Input Connection ..................1-3 Chapter 2 Calibration ................2-1 Calibration Explanation ................2-1 DC Voltage, DC Current and Resistance Calibrations ........2-1 AC Voltage and AC Current Calibrations ............. 2-3 Frequency Calibration ................2-4 Capacitance Calibration ................2-5 DM3058/DM3058E Calibration Guide... -
Page 13: Chapter 1 Calibration Overview
The default calibration password is "DMCAL". Modify the password You can use the direction keys at the front panel of DM3058/DM3058E to input the password. The up and down direction keys are used to select the character; press the up/down direction key to switch among "0 to 9", "A to Z" and "space". The left and right direction keys are used to move the cursor. -
Page 14: Calibration Devices
Calibration Devices You are recommended to use the devices listed in Table 1-1 to calibrate DM3058/DM3058E digital multimeter. If you do not have these devices, please use other devices that can meet the "Precision Requirement" in the table below. Table 1-1 Recommended Devices... -
Page 15: Input Connection
7. Ground the shield of the twisted pair and the shield of the coaxial cable. Unless otherwise noted, ground the LO terminal of the calibrator. As DM3058/DM3058E digital multimeter is a high-precision measuring instrument, special care should be paid during the verification and calibration to avoid causing additional error. -
Page 17: Chapter 2 Calibration
RIGOL Chapter 2 Calibration Calibration Explanation The DM3058/DM3058E calibration consists of user calibration and factory calibration. The calibration parameters acquired from the calibration performed by RIGOL factory or the RIGOL authorized third-party organizations are stored as the factory calibration parameters. The calibration parameters acquired by performing the calibration operations mentioned below are the user calibration parameters which will not overwrite the factory calibration parameters. - Page 18 6. After the above calibrations finish, press Save to save the calibration parameters. Note Special care should be paid during the calibration process to avoid affecting the performance of the instrument. Please read the "Test Conditions" before performing the calibration. DM3058/DM3058E Calibration Guide...
-
Page 19: Ac Voltage And Ac Current Calibrations
Then, press Middle to perform the half range calibration; the half range calibration parameters will be displayed in the Cal M table after the half range calibration finishes. DM3058/DM3058E Calibration Guide... -
Page 20: Frequency Calibration
Then, press Gain to perform the gain calibration; the gain calibration parameters will be displayed in the Cal G table after the gain calibration finishes. After the gain calibration finishes, press Save to save the calibration parameters. DM3058/DM3058E Calibration Guide... -
Page 21: Capacitance Calibration
Gain Calibration Function Range Scale Input Input Capacitance 2 nF Open 2 nF Open 20 nF 20 nF 200 nF Open 200 nF 2 μF Open 2 μF 200 μF Open 200 μF 10000 μF Open 10000 μF DM3058/DM3058E Calibration Guide...
