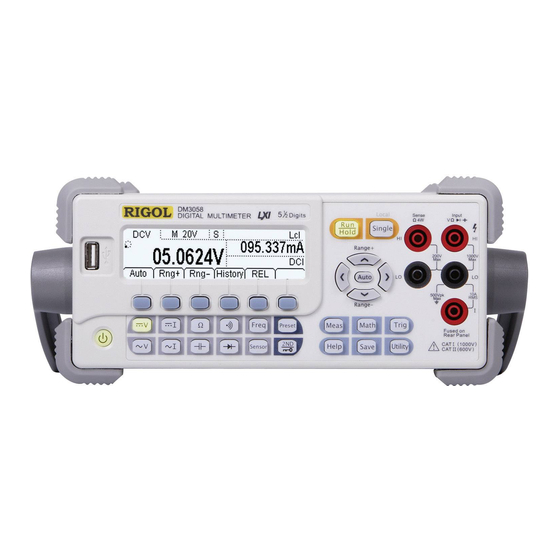

Rigol DM3058 Quick Manual
Digital multimeter
Hide thumbs
Also See for DM3058:
- Programming manual (264 pages) ,
- User manual (132 pages) ,
- Performance verification manual (27 pages)
Related Manuals for Rigol DM3058
Summary of Contents for Rigol DM3058
- Page 1 Quick Guide RIGOL Publication number QGA03108-1110 Jan. 2013 DM3058/DM3058E Digital Multimeter © 2008 RIGOL Technologies, Inc. All Rights Reserved...
- Page 3 P.R. China. Information in this publication replaces all previous corresponding material. RIGOL reserves the right to modify or change part of or all the specifications and pricing policies at company’s sole decision. NOTE: RIGOL is registered trademark of RIGOL Technologies, Inc.
-
Page 4: Safety Notice
HI and LO terminals are used for Voltage, Resistance, Capacitance, Continuity, Frequency and Diodes measurement. Two protection limitations are defined: 1) HI-LO protection limitation: 1000VDC or 750VAC. It is the maximum measurable voltage. The limitation can be expressed as 1000Vpk. Quick Guide for DM3058/DM3058E... - Page 5 DM3058/DM3058E may be used to make measurements with the HI and LO inputs connected to mains in such devices (up to 600VAC), or to the branch outlet itself.
- Page 6 CAUTION indicates that a potential damage to the instrument or other property might occur. Symbols on the Product. These symbols may appear on the product: Protective Hazardous Safety Chassis Test Earth Voltage Warning Ground Ground Terminal Quick Guide for DM3058/DM3058E...
-
Page 7: Table Of Contents
Necessary Inspection ............... 1 Handle Adjustment ..............4 To Connect Power Cord ............5 To Connect Test Lead .............. 7 To Connect USB, RS232, LAN and GPIB Ports ......13 Troubleshooting ..............14 Contact Us ................15 Quick Guide for DM3058/DM3058E... -
Page 9: Necessary Inspection
In case there is any mechanical damage or defect, notify the RIGOL Sales Representative. If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier as well as the RIGOL sales office. Keep the shipping materials for the carrier’s inspection. 3． Check the accessories. - Page 10 RIGOL Front Panel of the Instrument Front Panel II. Standard Accessory A Power Cord A USB Cable Two Test Leads Two Alligator Clips (Use with the test lead) Quick Guide for DM3058/DM3058E...
- Page 11 A CD-ROM* Backup Fuse A Quick Guide NOTE*: The CD-ROM includes《User’s Guide》and Application Software. III. Optional Accessories RS232 Cable Kelvin Test Clips NOTE: All the accessories (standard and optional) are available by contacting your local RIGOL office. Quick Guide for DM3058/DM3058E...
-
Page 12: Handle Adjustment
RIGOL Handle Adjustment To adjust the handle position of DM3058/DM3058E Multimeter, please grip the handle by the sides and pull it outward. Then, rotate the handle to the desired position as shown in the following figure. To Adjust the Handle... -
Page 13: To Connect Power Cord
User’ Guide to change the fuse if needed. 4． After the above inspections, the power key is still not lit, please contact RIGOL for help. Quick Guide for DM3058/DM3058E... -
Page 14: Power Selection
2． Choose the correct voltage shelves location in the voltage selected switches. 3． Enclose the seat of the fuse to the slot after placed the fuse. WARNING: To avoid electric shock or fire, do not use makeshift fuses or short-circuit the fuse holder. Quick Guide for DM3058/DM3058E... -
Page 15: To Connect Test Lead
HI Terminal, black test lead to the LO Terminal. DC Voltage 2． AC Voltage Measurement Connect test leads as shown in the following figure; red test lead to the HI Terminal, black test lead to the LO Terminal. AC Voltage Quick Guide for DM3058/DM3058E... - Page 16 HI Terminal, black test lead to the LO Terminal. DC Current 4． AC Current Measurement Connect test leads as shown in the following figure; red test lead to the HI Terminal, black test lead to the LO Terminal. AC Current Quick Guide for DM3058/DM3058E...
- Page 17 HI Terminal, black test lead to the LO Terminal. Resistance 6． 4-Wire Resistance Measurement Connect test leads as shown in the following figure; red test lead to the HI Terminal, black test lead to the LO Terminal. 4-Wire Sense HI Resistance 4-Wire Sense LO Quick Guide for DM3058/DM3058E...
- Page 18 Capacitance 8． Continuity Testing Connect test leads as shown in the following figure; red test lead to the HI Terminal, black test lead to the LO Terminal. Open or Closed Circuit Quick Guide for DM3058/DM3058E...
- Page 19 HI Terminal, black test lead to the LO Terminal. Forward Bias 10． Frequency/Period Measurement Connect test leads as shown in the following figure; red test lead to the HI Terminal, black test lead to the LO Terminal. AC Signal Quick Guide for DM3058/DM3058E...
- Page 20 RIGOL 11． Sensor Measurement Sensor Voltage, Resistance, thermocouple and Frequency Sensor Sensor Current Sensor Quick Guide for DM3058/DM3058E...
-
Page 21: To Connect Usb, Rs232, Lan And Gpib Ports
RIGOL To Connect USB, RS232, LAN and GPIB Ports DM3058/DM3058E has plenty of I/O ports. To use any of the ports, follow the next instruction. Connect USB Host Connect USB Device Connect RS232 Port Connect LAN Port* Connect GPIB Port* Note*: LAN and GPIB interfaces are only supported by DM3058. -
Page 22: Troubleshooting
(3) Check if the safety fuse has been blown, replace it if necessary. (4) Restart the instrument. (5) If it still can’t work properly, please contact RIGOL for help. 2． When connecting a current signal, the reading has not change: (1) Check if the test lead is correctly connected to current jack or the LO jack. -
Page 23: Contact Us
RIGOL Contact Us If you have any problem or requirement when using our products, please contact RIGOL Technologies, Inc. or your local distributors, or visit: www.rigol.com. Quick Guide for DM3058/DM3058E...
