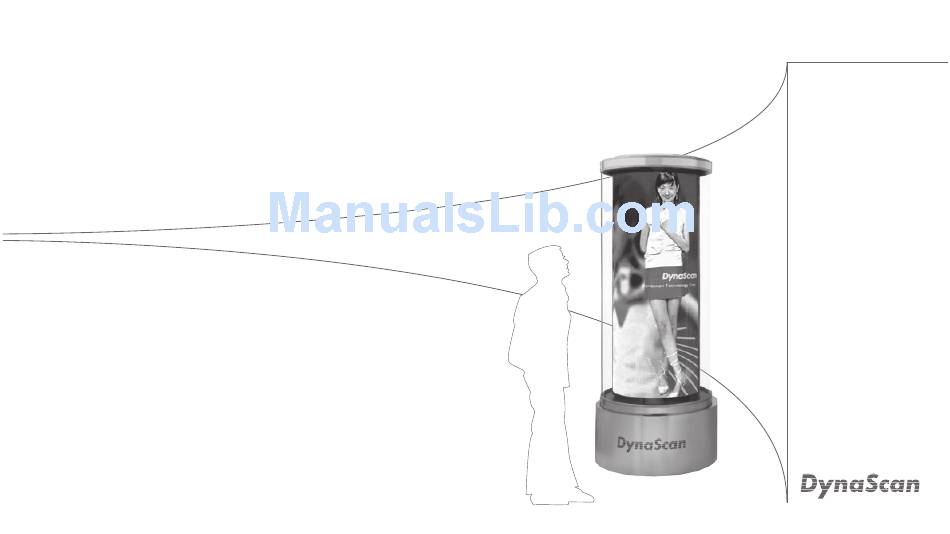

Page 1: Quick Start Guide

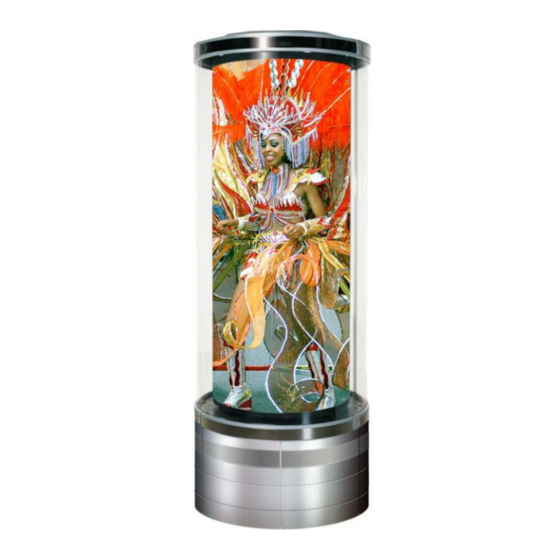

QUICK START GUIDE DS0613 / DS0616 Technology, Inc. - Page 2 U N I T O V ER V IE W Model Number: DS0613 DS0616 Physical Dimensions: 33” dia x 78”h 33” dia x 88”h [in metric]: 0.83m x 1.97m 0.83m x 2.23m Screen Size: 80”w x 50”h 80”w x 62”h [in metric]: 2.00m x 1.30m...
- Page 3 C O M PUT ER PANE L Computer Power Switch USB Port (x2) PS2 Port External VGA Monitor Port Main Power On/Off Switch Power Cord...
-
Page 4: Turning Off The Unit
- Plug external VGA monitor --> External VGA port (monitor is not mandatory but will help setting up easier) - Turn the unit on by flipping the main power switch - DynaScan content will then start up... - Page 5 T Y P E OF V ID EO S I GN AL D YNAS CAN RE C OGNI ZES - DS0613 / DS0616 will recognize a video signal that is 1024 x 768 at a 60Hz refresh rate through a DVI-D interface SAMPLE SOFTWARES (SCHEDULE EDITOR &...
- Page 6 - Under “Schedule”: - DynaScan in one full wrap, single screen - DynaScan in two screens with two different schedules - DynaScan in three screens with three different schedules - If you click on “One”, open the schedule file made - If you click on “TWO”/“THREE”, click...
- Page 7 744w x 197h pixels three-screen = 960w x 240h pixels - DynaScan Player supports: AVI, MPG1, MPG2 and Flash * May need to install some codec in order to support all formats 2 . 4 H OW TO M AKE DYN AS CA N S CRE EN SP I N...
- Page 8 DynaScan Technology, Inc. E. info@dynascanusa.com 7 Chrysler, Irvine, 92618, USA www.dynascanusa.com 949.421.0348 949.421.0353 / F.
