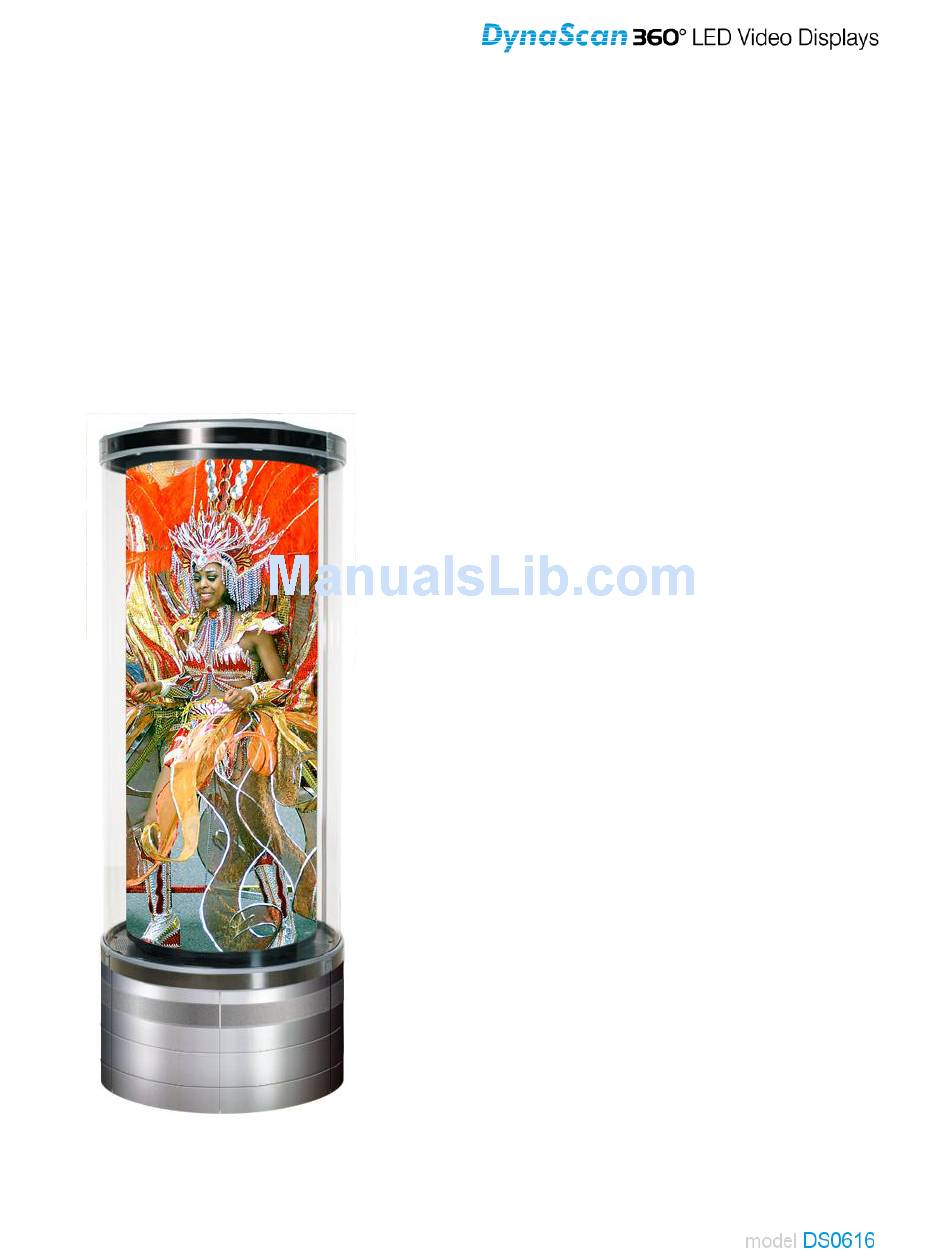

- Page 1 DS0616 Quick Start Guide...
-
Page 2: Table Of Contents
Installation ..............................6 Connecting a plug to the display ....................... 6 Permanent ground installation ......................... 7 Operation ..............................10 Functions of the DynaScan........................10 Power display ON/OFF ..........................10 Options ................................ 11 Digital Media Player ..........................11 Video Input Box ............................11 Maintenance ............................... -
Page 3: Safety Precaution
Safety Precaution Caution The display system is not meant for outdoor use. After shutting down the power to the display, do not touch the printed circuit boards (PCB) and their components to avoid electric shock. Checking any electrical wire or any components on the PCBs, turn off the power to the display and unplug the power cord from the power outlet. -
Page 4: Handling
Handling Unpacking the Unit Follow the diagrams below to unpack the crate. You will need a 13mm socket wrench. -
Page 6: Installation
Installation Connecting a plug to the display In the series of steps below shows how to connect a 220v plug to the display’s power cable. 1. Choose the correct plug for your outlet; insert the green wire (ground) as shown below. 2. -
Page 7: Permanent Ground Installation
Permanent ground installation Step 1. List of parts to mount display to the ground: (1) Ground mounting bracket x 3 pcs (2) Anchor x 3 pcs (3) Hexagon-socket-head-cap screw M10 * 30 x 6 pcs (4) Spring-Washerψ10 x 6 pcs (5) Washerψ10 x 6 pcs Ground Mounting... - Page 8 Step 2. Drive the three anchors into the ground with the angles shown below. Note: We recommend having the work done by a specialist. Step 3. Turn the screws to fix the ground mounting brackets. The positions are shown below. CAUTION: The washer needs to be placed into the bolt as shown below.
- Page 9 Step 4. Move the display to the preferred place and use the nuts to fasten the display to the ground. CAUTION: Ensure the nuts have been fastened with the anchor. SPRING-WASHER WASHER ANCHOR NOTE: Please follow the steps below to securely fasten the display to the ground.
-
Page 10: Operation
Operation Functions of the DynaScan Each component is labeled below: 1. Power ON/OFF LEDs for the DynaScan (controls the DynaScan spinning) 2. Circuit breaker reset button 3. Power cable Power display ON/OFF 1. Turn ON/OFF the display. Press the power switch (1). -
Page 11: Options
Options Digital Media Player Store, schedule and play video content directly from computer. Included user-friendly software provides full playback and monitoring control. The Digital Media Player includes both a multi- card reader for playback of removable media, as well as a video capture card for broadcast feeds from cable TV boxes, DVD players, video cameras, and even video gaming systems. -
Page 12: Maintenance
Cleaning the Screen Shield Use a clean, damp microfiber cloth to gently wipe the outer shield of the DynaScan display. If the screen shield is stained with oil or other contaminates that cannot be cleaned with clean water, you may need to use anti-static cleaner and soft, microfiber cloth to lightly wipe dirt and dust off the screen. -
Page 13: Cleaning Display Filters
Do not use any sort of acidic cleaners or detergents. If a replacement filter is needed, please contact your DynaScan dealer. The following DS0616 360 Degree LED Display filters to be cleaned are located on the base and top of the display. -
Page 14: Troubleshooting
DynaScan Technology, Inc. directly. Problem Recommended Solution Issue: DynaScan 360° display does not turn on. Check the connections of all cables, and plugs. Check if the power switches are in ON position. Check DynaScan display circuit breakers.
