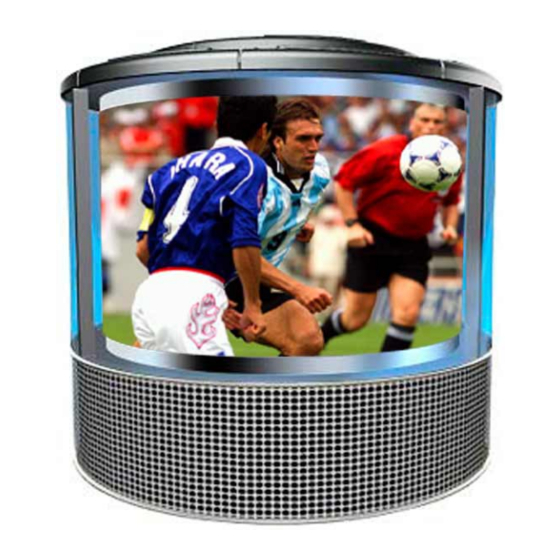

DynaScan DS3522
360º LED Video Display
Hardware User's Manual
Edition 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS3522 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynascan DS3522

Summary of Contents for Dynascan DS3522

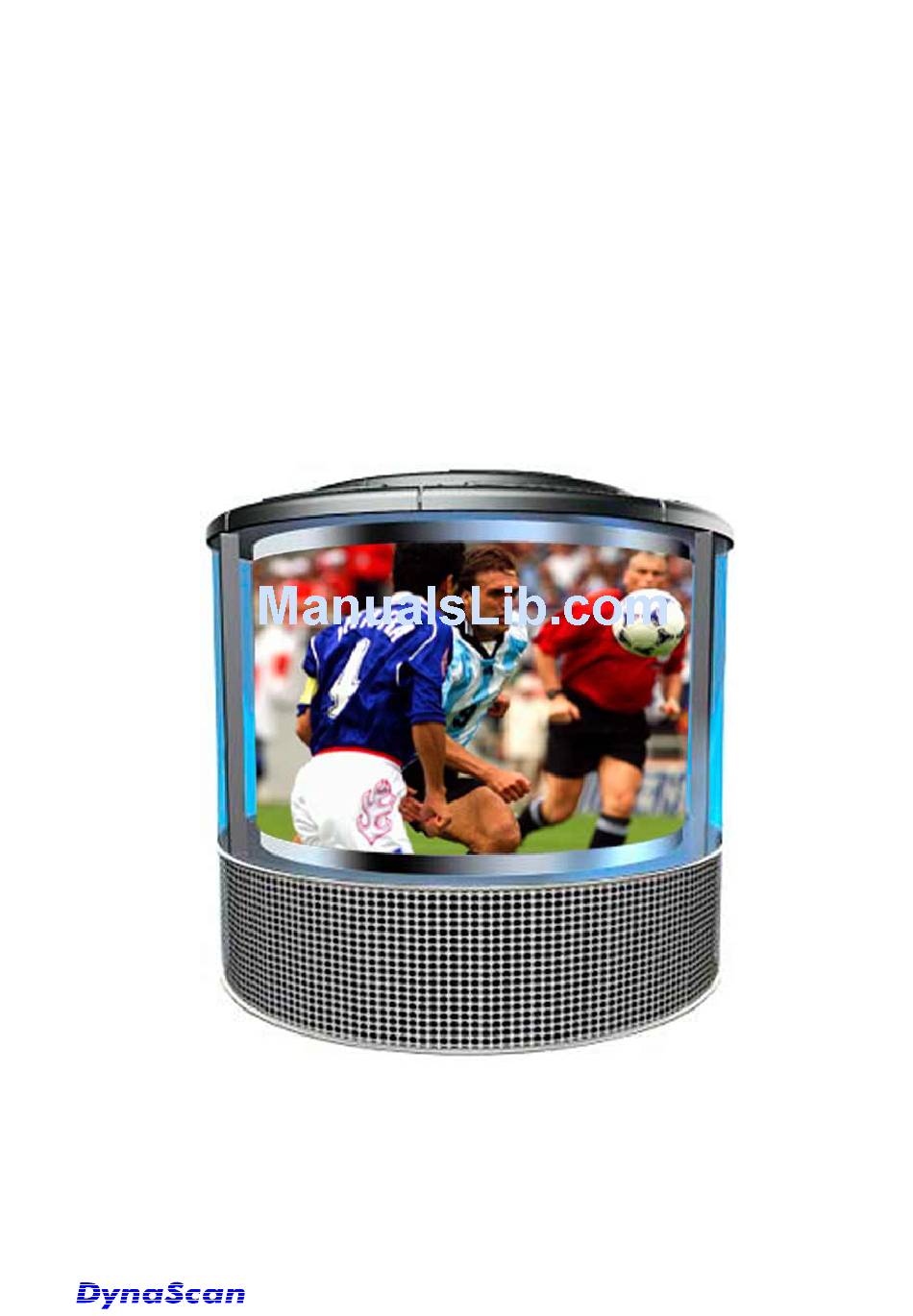

  • Page 1 DynaScan DS3522 360º LED Video Display Hardware User’s Manual Edition 1...

  • Page 2: Table Of Contents

    ........................16 PECIFICATIONS 5.2.1 Display ..........................16 5.2.2 PC ............................16 5.2.3 Cooler System Spec......................17 5.2.4 Fiber Cable Spec.........................18 ..........................19 IMENSIONS ........................20 E G A L O T I CE S ........................22 ISPOSAL OTICES ......................22 RODUCT ARRANTY Copyright © 2006 DynaScan Technology Corp.

  • Page 3: Important Safety Precautions

    If you have questions not mentioned in this manual, please feel free to consult local dealers or contact DynaScan directly for help. Our technical teams will be pleased to service you.
  • Page 4 Do not change default settings or try to adjust any devices inside the base under the guidance of professional technicians or engineers. Do not move the display system while operating. Copyright © 2006 DynaScan Technology Corp.
  • Page 5 PCB from being damaged by the electrostatic on the body through hands. Do not change default settings or try to adjust any devices inside the base without the guidance of professional technicians or engineers. Copyright © 2006 DynaScan Technology Corp.

  • Page 6: Document Conventions

    CAUTION: The symbol is intended to warn the user to be careful about something when completing a task. NOTE: Notes as References Please refer to Table of Contents for any specific information required. Copyright © 2006 DynaScan Technology Corp.

  • Page 7: A Tour Of The Display

    As a result, DynaScan Display creates larger viewing area for audiences and increases the variety of broadcasting effectiveness and the sense of modernization to its surroundings due to its creative and revolutionary design.

  • Page 8: Product Features

    Real pixel Unlike conventional display which red, blue and green color elements are separated, the DynaScan's flying red green and blue LEDs are turned on right at the same spot to create an effective pixel which makes the image perfectly crispy.

  • Page 9: Connectable External Multimedia Devices

    The DynaScan LED Display employs cutting-edge video transmission technology and hence presents its high compatibility. Linked to the ISC, the DynaScan LED display receives a variety of input signals such as TV signal and the signal from DVD, VCD, VHS & Beta VCRs, Video Cameras, Digital Cameras, Internet streams, satellite and cable TVs to render text, information, graphics animation, or relay live show and instant relay.

  • Page 10: System Connection Diagram

    1.4 System connection Diagram DVI Video Card Panel Link VGA Card Motion Capture Card Video Capture Card Raid Card Fiber Rx RS232 Fiber Tx DVI Port 3ψ4W AC 380V~420V 50/60Hz 80A Copyright © 2004 DynaScan Technology Corp.

  • Page 11: Hardware

    LED so as to make the pixel size of it as fine as possible. Main Board The main board controls on and off timing of the LED modules and processes the video signals transmitted from the PC. Copyright © 2004 DynaScan Technology Corp.
  • Page 12 Cooler System Monitor Board The board will detect the abnormal singles and transmit them to DVI Board. Encoder The encoder provides the data of the drum screen’s position to the main board by using optical positioning theory. Copyright © 2004 DynaScan Technology Corp.
  • Page 13 It controls the spin speed of the motor and can detect the abnormal status about it. Otherwise, it converts fixed frequency and fixed voltages to variable frequency and voltage so as to enable the motor to spin stably. Copyright © 2004 DynaScan Technology Corp.
  • Page 14 Giga Fiber receiver will convert the optic signals to DVI signal and then the DVI signals will be sent to rotating connector. It can also control the on/off of the power switch and detect any abnormal operations. Copyright © 2004 DynaScan Technology Corp.

  • Page 15: Computer Hardware

    Giga Fiber transmitter’s DVI DVI Port Video Out Port. Video Capture Card It captures the videos from external multimedia device such as DVD, VCD, LD, video player, satellite TV, digital camera and so on. Copyright © 2004 DynaScan Technology Corp.

  • Page 16: Functions Of The Ipc Panels

    Functions of the IPC panels 2.2.2.1 Front panel of the PC Reset Button Power button Hard Drive Slot cover Panel Look 2.2.2.2 Back panel of the PC DVI Port Audio Card USB Port Motion Capture Card Copyright © 2004 DynaScan Technology Corp.

  • Page 17: Fiber Line Connection

    Port of PC Connect to DVI Port of PC Connect with Fiber Line Adapter Fiber Rx Connect to DVI Board Connect to Converter Connect with Fiber line adapter Connect to 485 Single Port of DVI Board Copyright © 2004 DynaScan Technology Corp.

  • Page 18: Connection Of Speaker

    2.5 The important setting for using your own PC 1. The video output form must be DVI. 2. The screen resolution setting must be 1024 x 768, 32bit true color and refresh rate 60Hz. Copyright © 2004 DynaScan Technology Corp.

  • Page 19: Troubleshooting

    3.1 Q&A If you encounter any problems with the display, please double-check the following quick solutions. If this troubleshooting section does not solve your problems with regard to the display, please contact local dealers or DynaScan Technology Corp. directly. Problem: Recommended Solution: ◎...

  • Page 20: Maintenance Guide

    Simply use water to clean the screen shield whenever you feel dust or soil has shaded the screen shield to achieve crystal clear pictures. Use clean, soft, hairless cloth to wipe over the screen shield and the blind aluminum protected shield. Copyright © 2004 DynaScan Technology Corp.

  • Page 21: Appendices

    4 M If you prefer not to or unable to install heat dissipation fans on the decoration, please at least leave a 1.5 M ventilation at each side of the hexangular base. Copyright © 2004 DynaScan Technology Corp.

  • Page 22: Specifications

    Physical Weight： 3500Kg System Power Supply ： 3ψ4W AC 380V~420V 50/60Hz 80A Color Spectrum： R: 660nm G: 525nm B: 470nm Safe Ambient Temperature -20℃ ~ 40℃ 5.2.2 Please refer to the PC spec we shipped Copyright © 2004 DynaScan Technology Corp.

  • Page 23: Cooler System Spec

    50000 (BTU/h) shell Tube Type Heater Type Safety Device High Pressure Protection Low Pressure Protection Overload Protection Compressor Low-temperature Protection Power Line Number of wire/Cord’s 3.5mm Diameter Distributing Dimension 1565 x 900 x 845 Copyright © 2004 DynaScan Technology Corp.

  • Page 24: Fiber Cable Spec

    800mm x 600mm x 800 mm Indoor Devices: Four sets Unit Item Description Cooling capacity BTU/h 40000 1ψ 220V 50/60 Hz Power Supply Power Consumption Voltage Control Thermal Switch Dimension 1180mm x 990mm x 455mm 5.2.4 Fiber Cable Spec Copyright © 2004 DynaScan Technology Corp.

  • Page 25: Dimensions

    5.3 Dimensions The base is optional and customer-made. Copyright © 2004 DynaScan Technology Corp.

  • Page 26: Legal Notices

    TERM: This License shall continue for as long as you use the display system. However, this License will terminate automatically without notice from DynaScan if you violate any of its terms or conditions. You must agree, upon termination, to destroy all copies of the software.
  • Page 27 Except as expressly provided herein, DyanScan and its suppliers do not grant any express or implied rights to use any product related hardware and software. DynaScan is registered trademark of DynaScan Technology Corp. in R.O.C and\or other countries. Microsoft is registered trademark of Microsoft Corp. Moonlight is registered trademark of Moonlight cordless Ltd. IBM is registered trademark of IBM Computer Inc.

  • Page 28: Disposal Notices

    2. Before contacting us, please prepare the followings: （1.） date of purchase documentation （2.）Your name （3.）your address（4.）brief description of the problem （5.）product serial number. 3. Send or ship the product with the original container to your DynaScan dealer, or any DynaScan service center. 4. Please contact us for any further questions.
  • Page 29 Kuei-Shan Township, Taoyuan County, Taiwan, R.O.C. TEL： +886-3-396-0541 FAX： +886-3-396-2965 DynaScan Technology Corporation 7F, No. 66, Hwa-Ya 1st Rd., Hwa-Ya Technical Park, Kuei-Shan Township, Taoyuan County, Taiwan, R.O.C. Tel: +886-3-396-0541 Fax: +886-3-396-2965 Edition 1, October 2004 Http://www.dynascan.com.tw info@dynascan.com.tw Copyright © 2004 DynaScan Technology Corp.
