Summary of Contents for Dynascan DS55LT4
-

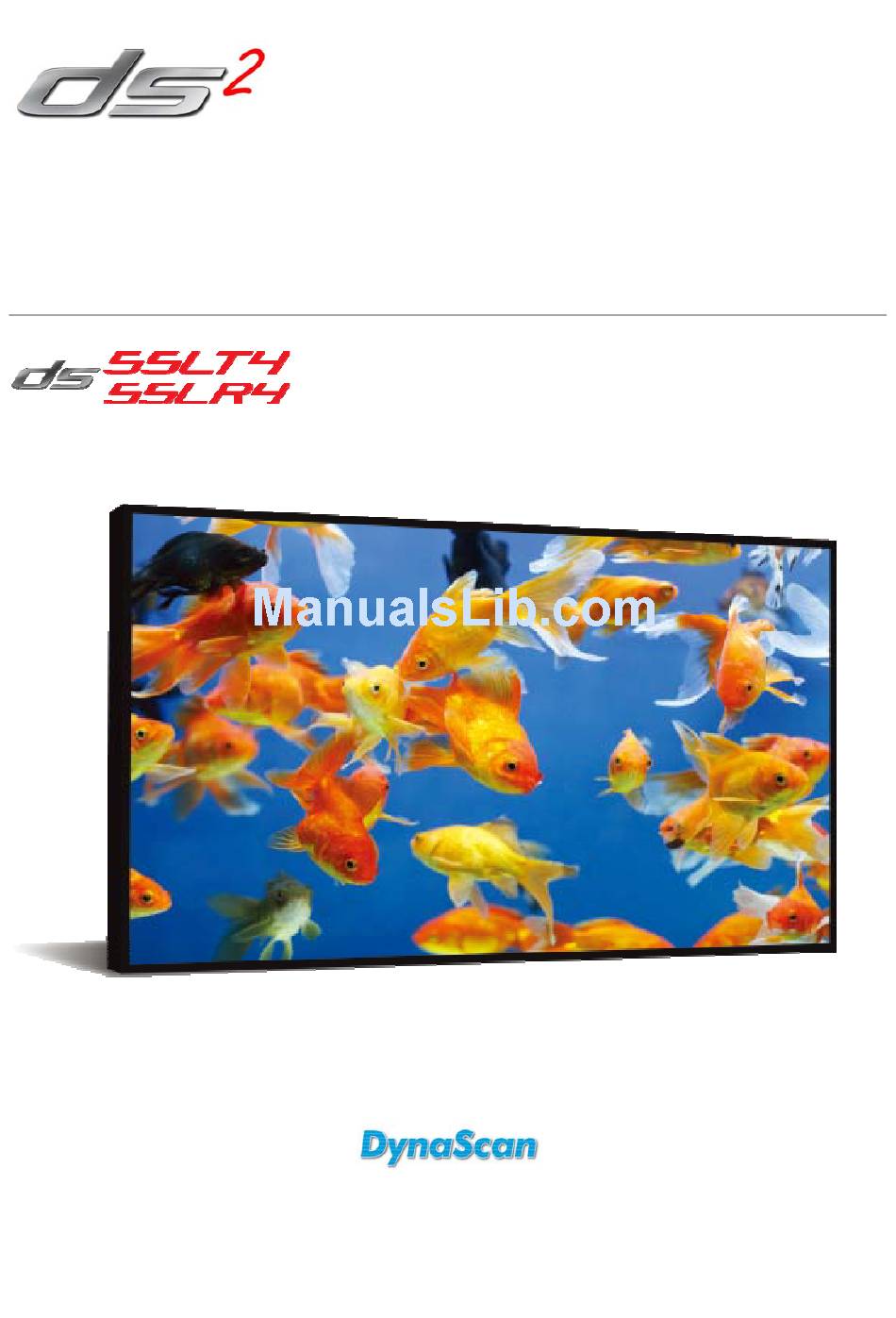

Page 1: User Manual
Professional LCDs User Manual Version 1.00 The use of diagrams and illustrations in the manual for reference only, actual product may be different. Product design and specifications are subject to change without notice... -
Page 2: Table Of Contents
Contents Safety Precautions................................3 Important Safety Information ............................4 Declaration of Conformity .............................6 Getting Started................................7 Contents..................................7 Installing and Replacing Remote Control Batteries ....................8 Installation..................................9 Mounting ...................................9 Connecting To a Power Source..........................13 Connecting an External Video Source........................13 Connecting Multiple Displays for Video Wall Applications..................14 Connector Positions..............................15 Operating Instructions..............................17 Powering On/Off the Display ..........................17... - Page 3 RS-232 Input................................25 Troubleshooting ................................26 Recycling and Energy Information..........................27 Material Contents Declaration ............................28 Limited Warranty.................................29 DS55 Series User Manual...
-
Page 4: Safety Precautions
Safety Precautions CAUTION Do not install display in a wet environment or place anything on the top of the display filled with liquid, such as vase or beverage. Do not install near flammable objects, such as gasoline or other volatile liquids. Do not install near any heat sources such as radiators or other heating devices. -
Page 5: Important Safety Information
Handle the LCD with care. Save the packaging materials for the next transport. Please clean the backside of the LCD at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. - Page 6 Cleaning the Panel Use a soft, lint-free cloth to gently wipe dust off the screen panel. Please do not use any hard material to wipe the panel. Please do not poke the panel with your hand or any sharp object (such as a pen or a nail) or exert excessive pressure to the panel to prevent damage to the panel.
-
Page 7: Declaration Of Conformity
We hereby certify that the Professional LCD DS55 Series is in compliance with Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004 /108 /EC IEC60950-1:2005+A1(2 Edition) EN 60950-1:2006+A1:2010 EN 55022:2006+A1:2007 Class A EN 61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 EN55024:1998+A1:2001+A2:2003 EN61000-4-2:2009 EN61000-4-3:2006+A1:2008+A2:2010 EN61000-4-4:2010 EN61000-4-5:2006 EN61000-4-6:2009 DynaScan Technology, Inc. EN61000-4-8:2010 EN61000-4-11:2004 EN61000-4-11:2004 DS55 Series User Manual... -
Page 8: Getting Started
Getting Started Contents Confirm the accessories below are included with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary by product. • DS55Lxx Professional LCD • Power cable x1 pcs •... -
Page 9: Installing And Replacing Remote Control Batteries
Installing and Replacing Remote Control Batteries 1. Open the battery compartment cover. 2. Insert 2 new AAA batteries. 3. Close the battery compartment cover. Warning: • Incorrect usage of batteries may cause leakage or explosion. • Pay attention to the polarity when installing batteries. •... -
Page 10: Installation
Installation The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover damages caused by improper installation and DynaScan shall not be held responsible in such incident. - Page 11 DS55LT4 DS55LR4 DS55 Series User Manual...
- Page 12 Orientation When used in the portrait orientation, the LCD should be rotated clockwise such that the left edge becomes the top edge. Installation Location The ceiling or the wall must have enough strength to support the LCD and its accessories. Do not install in a location with strong vibrations or is dusty.
- Page 13 When hanging from a ceiling Ensure that the ceiling is strong enough to support the LCD and it accessories. Also consider the effects of earthquake, unexpected vibration, and other external forces when evaluating the ceiling strength. The LCD should be secured to the building’s structural frame, such as a beam, and not to materials such as light steel frame or interior decoration.
-
Page 14: Connecting To A Power Source
Connecting To a Power Source Using the power cable provided, insert the female connector into the back of the display shown the in the diagram below. Connect the male end of the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. -
Page 15: Connecting Multiple Displays For Video Wall Applications
Use the OSD Menu to configure the size of the video wall and the position of each display. Note: The maximum number of DS55Lxx’s in a Video Wall is 36 (6 × 6). Note: The DynaScan “Video Wall” application is required to be installed on the PC in order to use the External Control feature. -
Page 16: Connector Positions
Connector Positions RS-232 (OUT) DVI (OUT) DVI (IN) RS-232 (IN) AC (IN) AC (OUT) DS55LT4 DS55 Series User Manual... - Page 17 DS55LR4 DS55 Series User Manual...
-
Page 18: Operating Instructions
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DS55LR4 model is at the front of the display with a receiving angle of 160 degrees. The IR receiver on the DS55LT4 model is at the back of the display with a receiving angle of 100 degrees. - Page 19 DS55LT4 DS55LR4 160° 100° Front Back DS55 Series User Manual...
- Page 20 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of the selected item LEFT Exit the current selection RIGHT Select the highlighted item DOWN...
-
Page 21: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION MENU OSD On / Off Move the cursor up or change the setting of the selected item DOWN Move the cursor down or change the setting of the selected item LEFT Exit the current selection RIGHT Select the highlighted item DS55 Series User Manual... -
Page 22: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the real panel control or remote control to display the OSD. Use the navigation arrows to select and adjust menu items. ITEM DEFAULT DESCRIPTION Change the orientation of the Menu. The Menu can be DISPLAY MODE LAN. - Page 23 ROW POSITION Vertical position in video wall. COLUMN POSITION Horizontal position in video wall. Adjusts the contrast. MODE 1 is the highest contras. OFF LOCAL DIMMING is the lowest contrast. GAMMA NATIVE Adjusts the Gamma value. Enables / disables the ability to use the remote to control the Menu.
-
Page 24: Specifications
Specifications MODEL DS55LT4 / DS55LR4 LCD Panel Size 54.64 inches Native Resolution 1920 x 1080 Brightness 2500 cd/m² (Typ.) 3,000:1 (Static) Contrast Ratio PANEL 1,000,000:1 (Dynamic) Response Time 10 ms (Typ.) 178° / 178° Viewing Angle Life Time 50,000 hrs (Typ.) -
Page 25: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 26: Rs-232 Output
RS-232 Output PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 RS-232 Input PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 DS55 Series User Manual... -
Page 27: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS55 Series User Manual... -
Page 28: Recycling And Energy Information
Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. Energy usage... -
Page 29: Material Contents Declaration
Material Contents Declaration Hazardous Substances Hexavalent Polybrominated Polybromodiphenyl Part Name Lead Mercury Cadmium Chromium Biphenyls Ethers PBDE PCBA CHASSIS ACCESSORY PACKAGE “O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. -
Page 30: Limited Warranty
DynaScan and its Authorized Service Providers are not liable for any damage to or loss of data or other information stored on any media, or any non-DynaScan product or part not covered by this warranty. This warranty does not apply: (a) to damage caused by natural disasters, accident, abuse, misuse, misapplication, neglect;... - Page 31 PROGRAM OR DATA STORED IN OR USED WITH DYNASCAN PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. DYNASCAN SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
- Page 32 Copyright © DynaScan Technology, Inc. All Rights Reserved.
