Summary of Contents for Dynascan DS491LT5

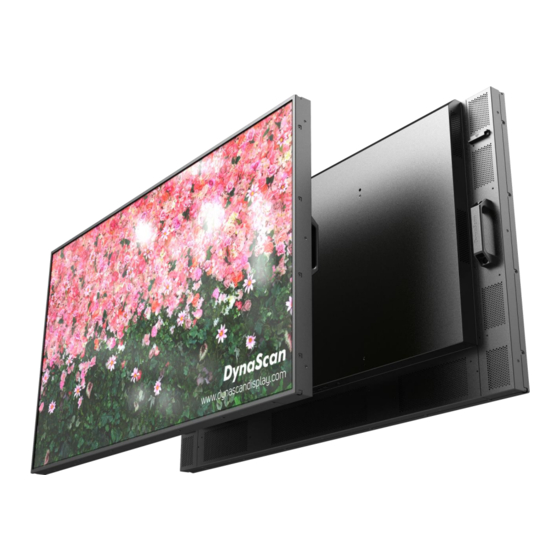

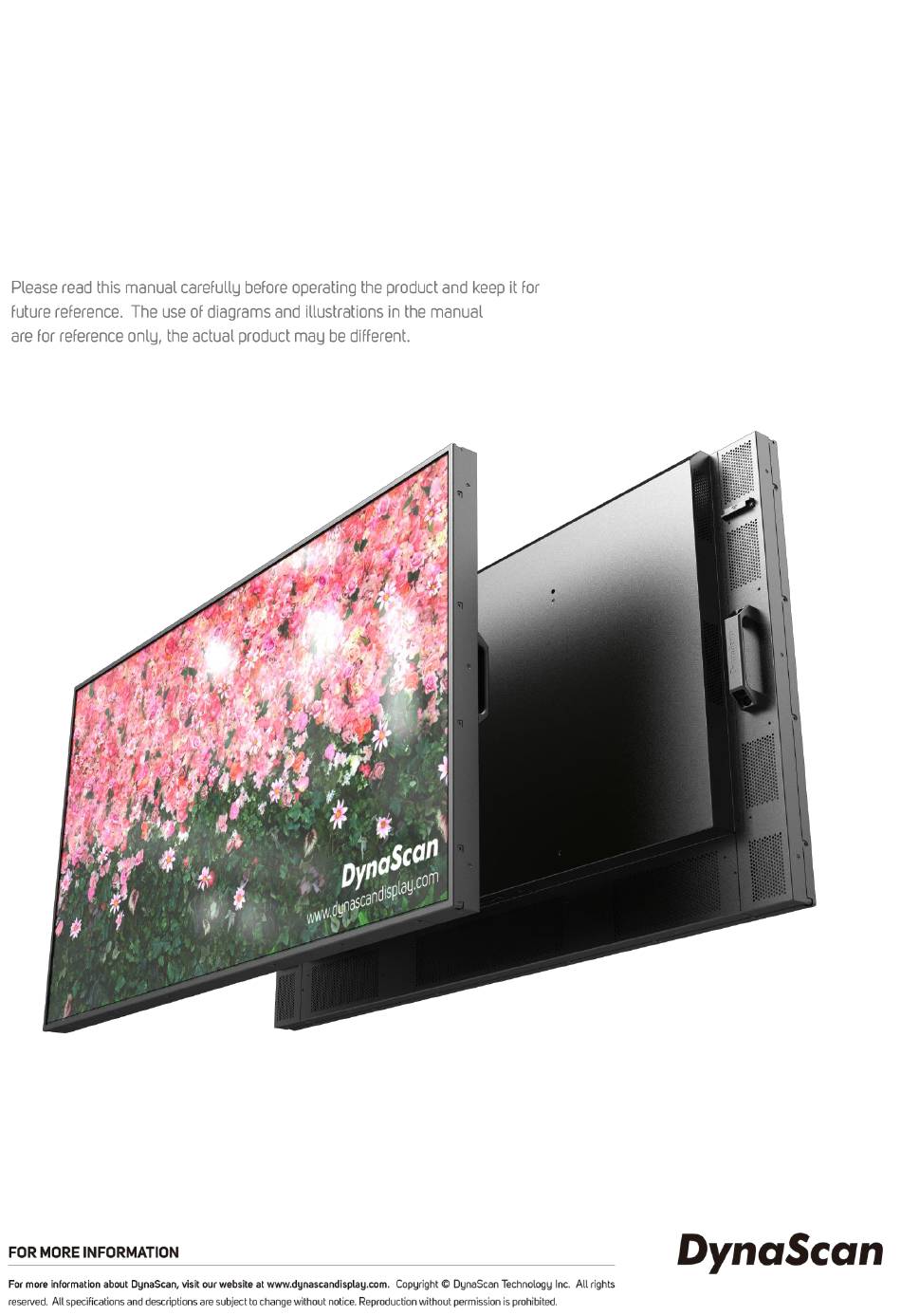

- Page 1 DS491LT5 USER MANUAL 49” Fanless High Brightness Digital Signage Display 64907 | V2.04...
- Page 2 Contents Material Contents Declaration ........................ 1 Recycling and Energy Information ......................1 Declaration of Conformity ........................2 Déclaration de conformité........................3 Safety Precautions ..........................4 Précautions relatives à la sécurité ......................5 Important Safety Information ........................6 Informations importantes relatives à la sécurité ..................7 Getting Started ............................
-
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
EN 55035 :2017 EN 300 328 V2.2.2 (2019-07) EN 301 489-1 V2.2.3 EN 62311 :2008 EN 301 489-17 V3.2.4 - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS491LT5 User Manual 2... -
Page 5: Déclaration De Conformité
EN 300 328 V2.2.2 (2019-07) EN 301 489-1 V2.2.3 EN 62311 :2008 EN 301 489-17 V3.2.4 - Bandes de fréquences et puissances a. WIFI 2,4G-2412~2462MHz. b. La puissance radiofréquence maximale transmise dans la bande 2,4 GHz est de 50 mW DS491LT5 User Manual 3... -
Page 6: Safety Precautions
Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DS491LT5 User Manual 4... -
Page 7: Précautions Relatives À La Sécurité
Le cordon d'alimentation ne doit pas être connecté à la surface du bâtiment, ni traverser les murs, les plafonds, les planchers et les ouvertures similaires du bâtiment. Le cordon d'alimentation doit être connecté à une prise électrique mise à la terre DS491LT5 User Manual 5... -
Page 8: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... - Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit : Cordon d'alimentation ou fiche d'alimentation endommagé.
-
Page 10: Getting Started
Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS491LT5 User Manual 8... -
Page 11: Bien Débuter
Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits. É cran LCD DS491LT5 Professional. Câble d'alimentation x 1 Télécommande x 1 Guide de démarrage rapide x 1... -
Page 12: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 13 <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) The orientation sticker can be found on the rear of display, which is for distinguishing the direction of installation. DS491LT5 User Manual 11...
- Page 14 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DS491LT5 User Manual 12...
-
Page 15: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 16: Connecting An External Video Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) on the back of the display shown the in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DS491LT5 User Manual 14... -
Page 17: Input/Output Terminals
Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device. *USB 3.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DS491LT5 User Manual 15... -
Page 18: Powering On/Off The Display
Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS491LT5 User Manual 16... -
Page 19: Using The Remote Control
IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet). NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS491LT5 User Manual 17... - Page 20 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DS491LT5 User Manual 18...
-
Page 21: Using The Built-In Keypad
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS491LT5 User Manual 19... -
Page 22: Navigating The On Screen Display (Osd) Menu
Set the Failover 3 input to display. Input Source Only effective in Main input source. If the display didn’t get both of commend Command Detection and the input signal, it will change to Failover1 input. 2. Picture DS491LT5 User Manual 20... - Page 23 Set the day of week. (Monday to Sunday) Time Time Zone Set the Time Zone. Power Control Automatic power on / off schedule function. Timer On Time 08:00 Set turn-on time. Off Time 18:00 Set turn-off time. DS491LT5 User Manual 21...
- Page 24 High Level Time 08:00 Set high level time. Low Level Time 18:00 Set low level time. Adjusts the contrast. UDR is the highest contrast. Local Dimming 1 is the lowest Local Dimming contrast. (Local Dimming 1/2, UDR) DS491LT5 User Manual 22...
- Page 25 Memory: Display will back to the last state when the power back after an outage. Set volume. Volume Range 100 – 0. Restore all settings to default. Reset Default Note: It does not modify CURRENT DATE, Setting CURRENT TIME, DATE OF WEEK, DS491LT5 User Manual 23...
- Page 26 The F/W version. LCD inner (backlight unit) temperature Cabinet Temp. monitoring. Ambient Temp. LCD Ambient temperature monitoring. The Extension Thermal Kit (ETK203) is for ETK Temp. ambient temperature monitoring. Some functions may not be available for all models. DS491LT5 User Manual 24...
-
Page 27: Specifications
IN *1 Audio OUT *1 I/O Ports USB port IN *1 RJ-45 IN *2 Micro SD Slot IN *1 Extension Connector IN *1 (ESK only) (Mini USB) Fuse Design and specifications are subject to change without notice. DS491LT5 User Manual 25... -
Page 28: Input Mode
60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1400 1050 60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz DS491LT5 User Manual 26... -
Page 29: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS491LT5 User Manual 27... -
Page 30: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS491LT5 User Manual 28... - Page 31 Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. DS491LT5 User Manual 29...
- Page 32 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS491LT5 User Manual 30...
