Summary of Contents for Dynascan DS32CR1

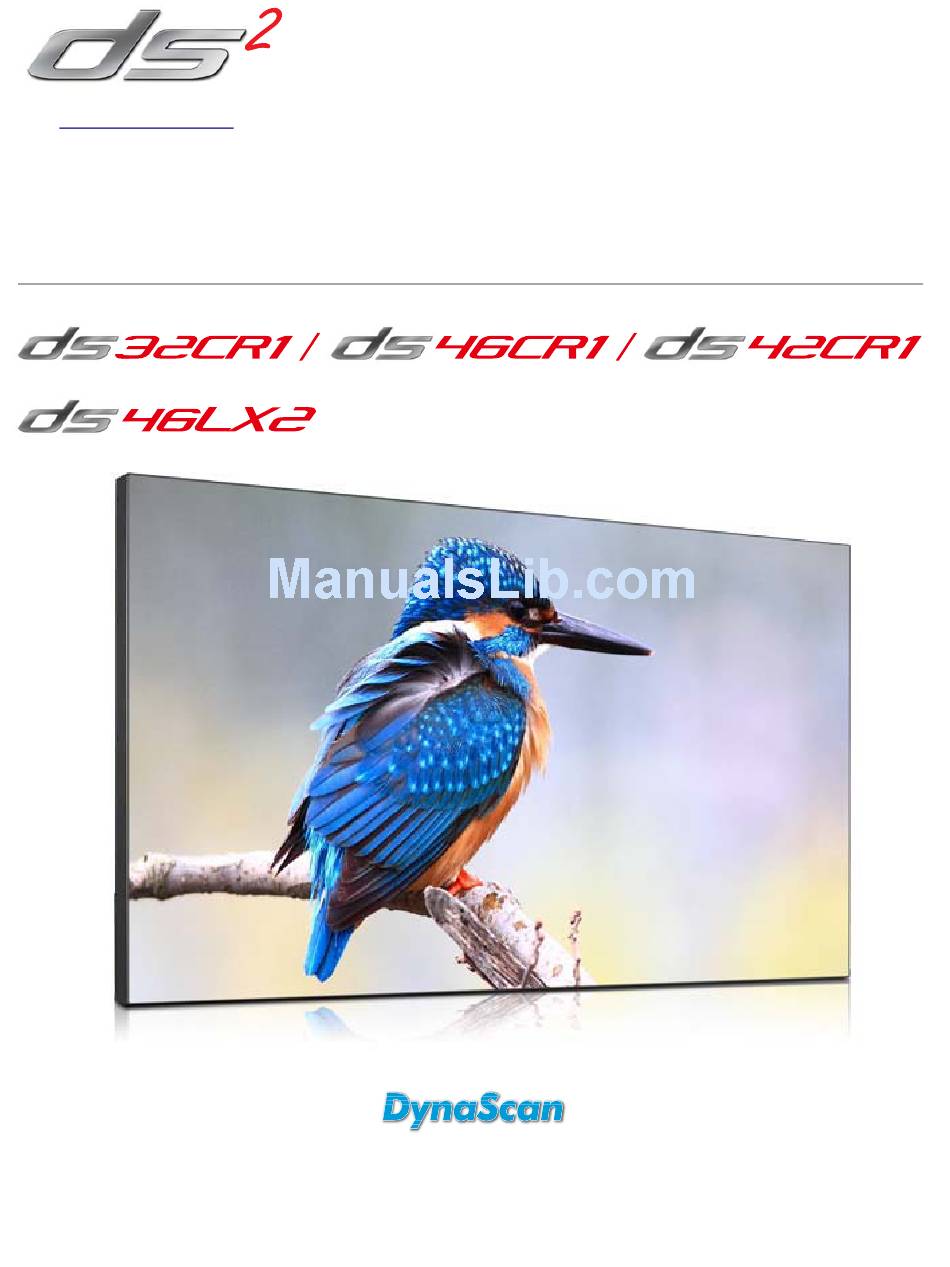

  • Page 1: User Manual

    Professional LCDs User Manual...
  • Page 2 DS32CR \DS42CR \DS46CR \DS46LX Series Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. How to connect a plug: Important: The wires in the mains lead are coloured in accordance with the following code: This apparatus is supplied with an approved moulded 13A plug. BLUE - “NEUTRAL”...

  • Page 3: Table Of Contents

    DS32CR \DS42CR \DS46CR \DS46LX Series Table Of Contents Unpacking and Installation ......................1 1.1. Unpacking ..........................1 1.2. Package Contents ........................1 1.3. Installation Notes ........................1 1.4. Installing and Removing Table Stands (optional) ..............2 1.5. Mounting on a Wall ........................3 Parts and Functions ........................5 2.1.
  • Page 4 DS32CR \DS42CR \DS46CR \DS46LX Series 4.2.5. CONFIGURATION1 menu ...................18 4.2.6. CONFIGURATION2 menu ...................19 4.2.7. CONFIGURATION3 menu ...................20 4.2.8. ADVANCED OPTION menu ..................21 Input Mode .............................23 Cleaning and Troubleshooting ....................24 6.1. Cleaning ..........................24 6.2. Troubleshooting ........................25 Technical Specifications ......................26...

  • Page 5: Unpacking And Installation

    DS32CR \DS42CR \DS46CR \DS46LX Series Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. •...

  • Page 6: Installing And Removing Table Stands (Optional)

    DS32CR \DS42CR \DS46CR \DS46LX Series 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Power off the display. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. After inserting the stand in the guide block, tighten the screws on both sides of the display. NOTE: The long-end side of the stand should face to the front while installing.

  • Page 7: Mounting On A Wall

    DS32CR \DS42CR \DS46CR \DS46LX Series To remove table stands: 1. Power off the display. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. Remove screws using a screwdriver and place them in a safe place for reuse. 1.5.
  • Page 8 DS32CR \DS42CR \DS46CR \DS46LX Series 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3.

  • Page 9: Parts And Functions

    DS32CR \DS42CR \DS46CR \DS46LX Series Parts and Functions 2.1. Control Panel DS46LX2 DS32CR \DS42CR \DS46CR series POWER button MENU button Use this button to turn the display on or put the display to Return to previous menu while OSD menu is on, or to standby.

  • Page 10: Input/Output Terminals

    DS32CR \DS42CR \DS46CR \DS46LX Series 2.2. Input/Output Terminals DS32CR1 DS42CR1 /DS46CR1 DS46LX2 DS32CR1 (OUT) (OUT) (OUT) (IN) (IN) DS42CR1 /DS46CR1 /DS46LX2 (OUT) (OUT) (OUT) (IN) ( N) MAIN POWER SWITCH AUDIO IN 1, 2, 3 Press to switch the main power on/off.

  • Page 11: Remote Control

    DS32CR \DS42CR \DS46CR \DS46LX Series 2.3. Remote Control [DISPLAY] button Press to turn on/off the information OSD displayed on the upper right corner of the screen. 2.3.1. General functions [ ] button • Press to move the selection left in OSD menu. POWER •...

  • Page 12: Inserting The Batteries In The Remote Control

    DS32CR \DS42CR \DS46CR \DS46LX Series 2.3.2. Inserting the batteries in the remote 2.3.4. Operating range of the remote control control Point the top of the remote control toward the display’s remote control sensor when pressing a button. The remote control is powered by two 1.5V AAA batteries. •...

  • Page 13: Connecting External Equipment

    DS32CR \DS42CR \DS46CR \DS46LX Series Connecting External Equipment 3.1. Using the Switch Cover A cover for the power switch is provided to prevent the display from being turned on or off accidentally. To lock the cover into position: 1. Align and insert the cover to the indentation located beside the main switch. 2.

  • Page 14: Connecting External Equipment (Dvd/Vcr/Vcd)

    DS32CR \DS42CR \DS46CR \DS46LX Series 3.2. Connecting External Equipment (DVD/VCR/VCD) 3.2.1. Using COMPONENT video input COMPONENT (YPbPr) Audio Output DVD / VCR / VCD COMPONENT (YPbPr) To [AUDIO IN 2, 3] 3.2.2. Using HDMI video input DVD / VCR / VCD HDMI connector HDMI connector...

  • Page 15: Connecting A Pc

    DS32CR \DS42CR \DS46CR \DS46LX Series 3.3. Connecting a PC 3.3.1. Using VGA input From analog VGA output Mini D-Sub 15 pin From audio output PC or IBM compatible To [AUDIO IN 1, 2, 3] To [VGA IN] 3.3.2. Using DVI input From DVI output From audio output PC or IBM compatible...

  • Page 16: Using Hdmi Input

    DS32CR \DS42CR \DS46CR \DS46LX Series 3.3.3. Using HDMI input From HDMI output PC or IBM compatible To [HDMI IN]...

  • Page 17: External Audio Connection

    DS32CR \DS42CR \DS46CR \DS46LX Series 3.4. External Audio Connection 3.4.1. Connecting external speakers External speaker 3.4.2. Connecting an external audio device To [AUDIO OUT] Audio In Stereo Amplifier...

  • Page 18: Connecting Multiple Displays In A Daisy-Chain Configuration

    DS32CR \DS42CR \DS46CR \DS46LX Series 3.5. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.5.1. Video connection Connect one of the following: • Connect the [RS232C OUT] connector of display 1 to the [RS232C IN] connector of display 2. •...

  • Page 19: Osd Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series OSD Menu 4.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is 4.2.1. PICTURE menu shown below. You can use it as a reference for further adjusting your display. PICTURE 4.1. Navigating the OSD Menu BRIGHTNESS CONTRAST...

  • Page 20: Screen Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series GAMMA SELECTION H POSITION Gamma is what controls the overall brightness of an image. Press the [ ] button to move the image to the right, or [ ] to Images which are not corrected properly can appear too white move the image to the left.

  • Page 21: Audio Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series AUDIO RESET H ZOOM Expands the horizontal size of the image Reset all settings in the AUDIO menu to factory preset values. only. 4.2.4. PIP menu V ZOOM Expands the vertical size of the image only.

  • Page 22: Configuration1 Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series (O: PIP function available, X: PIP function unavailable) SCHEDULE By pressing the [PIP ON/OFF] button on the remote control, you TODAY 2011 . 08 . 04 20 : 19 : 55 can change the mode in the order shown below: SBS ASPECT SBS FULL INPUT...

  • Page 23: Configuration2 Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series DATE AND TIME OSD V POSITION Adjust the current date and time for the display’s internal clock. Adjust the vertical position of the OSD menu. DATE AND TIME INFORMATION OSD Set the period of time the information OSD displayed on the YEAR 2011 upper right corner of the screen.

  • Page 24: Configuration3 Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series Example: 5 x 5 screen matrix (25 displays) not compliant with it, images may not be displayed H MONITORS = 5 displays correctly. V MONITORS = 5 displays CONFIGURATION2 RESET H MONITORS Reset all settings in the CONFIGURATION2 menu to factory preset values.

  • Page 25: Advanced Option Menu

    DS32CR \DS42CR \DS46CR \DS46LX Series • {DVI MODE}: Used for DVI-D signal. SCREEN SAVER • Select {DVI-PC} when the source device is a PC. COOLING FAN AUTO • Select {DVI-HD} when the source device is a video BRIGHTNESS device. MOTION •...
  • Page 26 DS32CR \DS42CR \DS46CR \DS46LX Series LAN SETTING DHCP CLIENT IP ADDRESS SUBNET MASK DEFAULT GATEWAY :SEL +-:ADJ :RETURN :EXIT MENU EXIT MENU • DHCP - Choose to enable or disable the DHCP function. If enabled, the display will be assigned IP address, Subnet mask and Default gateway automatically.

  • Page 27: Input Mode

    DS32CR \DS42CR \DS46CR \DS46LX Series Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 70 Hz 33.75 MHz...

  • Page 28: Cleaning And Troubleshooting

    DS32CR \DS42CR \DS46CR \DS46LX Series Cleaning and Troubleshooting 6.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 29: Troubleshooting

    DS32CR \DS42CR \DS46CR \DS46LX Series 6.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is switched the display is not switched on.

  • Page 30: Technical Specifications

    DS32CR \DS42CR \DS46CR \DS46LX Series Technical Specifications DS32CR1 Display: Specifications Item Screen Size (Active Area) 32” LCD Aspect ratio 16:9 Number of pixels 1366 (H) x 768 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors...
  • Page 31 DS32CR \DS42CR \DS46CR \DS46LX Series Weight (With Stand) 14 Kg Weight (Without Stand) 12.8 Kg Gross Weight 17 Kg Environmental Condition: Specifications Item Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude...
  • Page 32 DS32CR \DS42CR \DS46CR \DS46LX Series DS42CR1 Display: Specifications Item Screen Size (Active Area) 42” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors Brightness (typical) 450 cd/m2 Contrast ratio (typical) 4000:1...
  • Page 33 DS32CR \DS42CR \DS46CR \DS46LX Series Environmental Condition: Specifications Item Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Internal Speaker: Specifications Item Type...
  • Page 34 DS32CR \DS42CR \DS46CR \DS46LX Series DS46CR1 Display: Specifications Item Screen Size (Active Area) 46” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors Brightness (typical) 400 cd/m2 Contrast ratio (typical) 4000:1...
  • Page 35 DS32CR \DS42CR \DS46CR \DS46LX Series Environmental Condition: Specifications Item Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Internal Speaker: Specifications Item Type...
  • Page 36 DS32CR \DS42CR \DS46CR \DS46LX Series DS46LX2 Display: Specifications Item Screen Size (Active Area) 46” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.176 (H) x 0.176 (V) [mm] Displayable colors 16.7M colors Brightness (typical) 700 cd/m2 Contrast ratio (typical) 4000:1...
  • Page 37 DS32CR \DS42CR \DS46CR \DS46LX Series Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Internal Speaker: Item Specifications Type...
