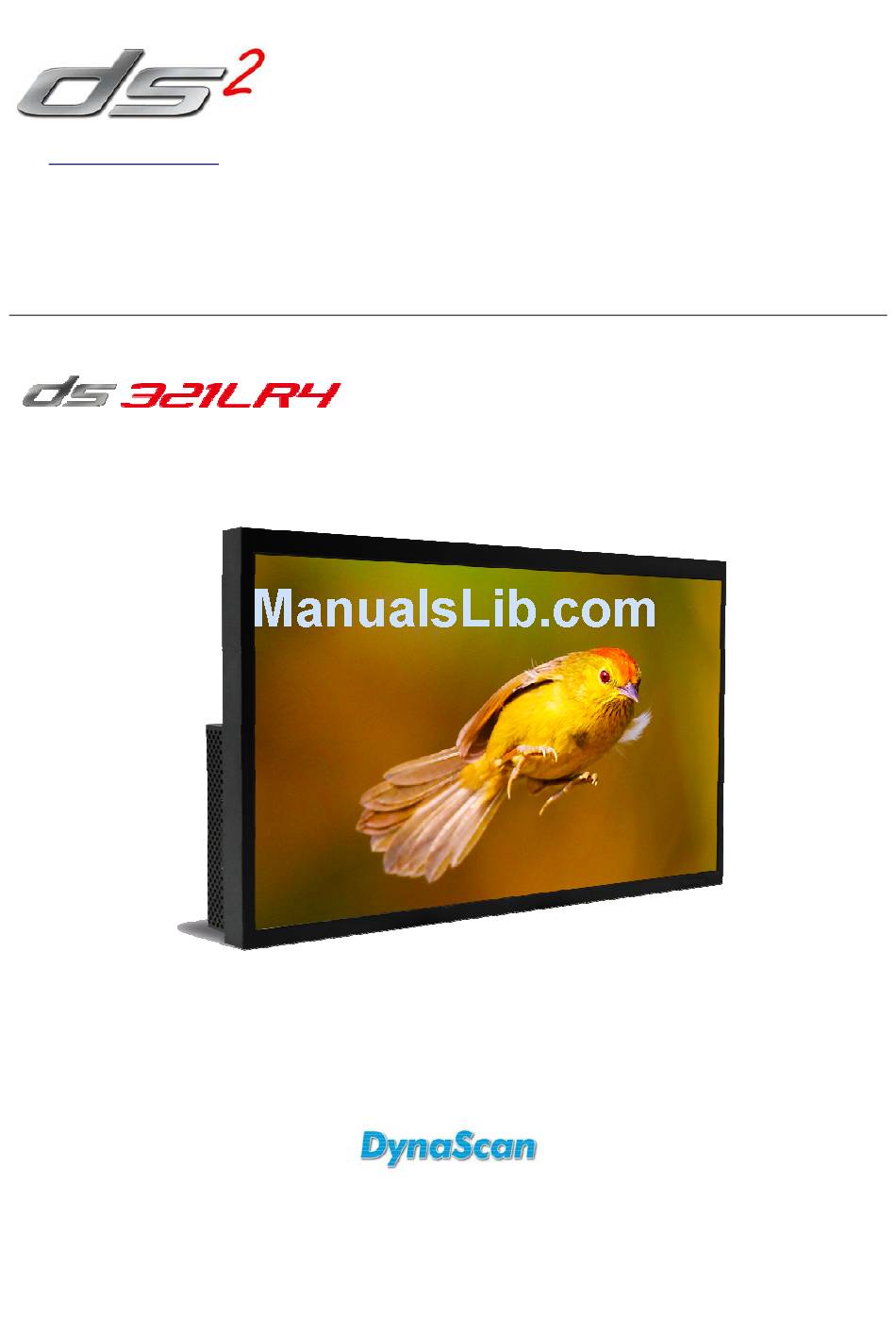

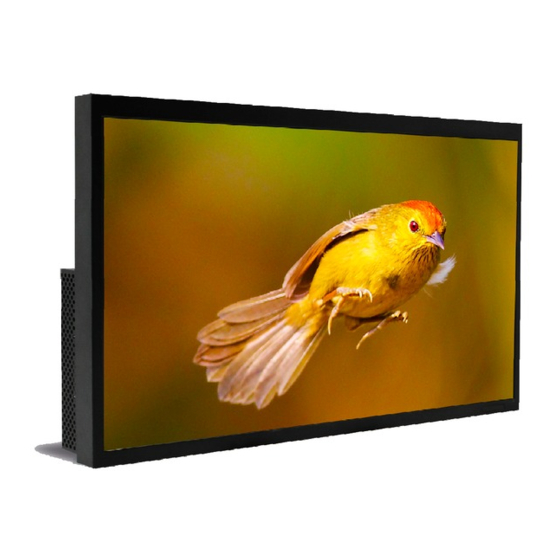

Page 1: User Manual
Professional LCDs User Manual... -
Page 2: Table Of Contents
Contents Safety Precautions................................3 Important Safety Information ............................4 Declaration of Conformity .............................6 Getting Started................................7 Contents..................................7 Installing and Replacing Remote Control Batteries ....................8 Installation..................................9 Mounting ...................................9 Connecting To a Power Source..........................13 Connecting an External Video Source........................13 Connector Positions..............................14 Input / Output Terminals ............................15 Operating Instructions..............................16 Powering On/Off the Display ..........................16 Using the Remote Control ............................16... - Page 3 RS-232 Output ................................25 RS-232 Input................................25 Troubleshooting ................................26 Recycling and Energy Information..........................27 Material Contents Declaration ............................28 DS321LR4 User Manual 2...
-
Page 4: Safety Precautions
Safety Precautions CAUTION Do not install display in a wet environment or place anything on the top of the display filled with liquid, such as vase or beverage. Do not install near flammable objects, such as gasoline or other volatile liquids. Do not install near any heat sources such as radiators or other heating devices. -
Page 5: Important Safety Information
Handle the LCD with care. Save the packaging materials for the next transport. Please clean the backside of the LCD at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. - Page 6 Cleaning the Panel Use a soft, lint-free cloth to gently wipe dust off the screen panel. Do not use any hard material to wipe the panel. Do not poke the panel with your hand or any sharp object (such as a pen or a nail) or exert excessive pressure to the panel to prevent damage to the panel.
-
Page 7: Declaration Of Conformity
EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-6:2009 EN 61000-4-8 :2010 DynaScan Technology, Inc. EN 61000-4-11:2004 VCCI report ready. VCCI Class A ITE V-3/ 2013.04 Technical Requirements V-4/ 2012.04 Supplementary Test Conditions for Equipment under Test DS321LR4 User Manual 6... -
Page 8: Getting Started
Getting Started Contents Confirm the accessories below are included with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary by product. • DS321LR4 Professional LCD • Power cable x1 pcs •... -
Page 9: Installing And Replacing Remote Control Batteries
Installing and Replacing Remote Control Batteries 1. Open the battery compartment cover. 2. Insert 2 new AAA batteries. 3. Close the battery compartment cover. Warning: • Incorrect usage of batteries may cause leakage or explosion. • Pay attention to the polarity when installing batteries. •... -
Page 10: Installation
Installation The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover damages caused by improper installation and DynaScan shall not be held responsible in such incident. - Page 11 DS321LR4 Unit: mm DS321LR4 User Manual 10...
- Page 12 Orientation When used in the portrait orientation, the LCD should be rotated clockwise such that the left edge becomes the top edge. Installation Location The ceiling or the wall must have enough strength to support the LCD and its accessories. Do not install in a location with strong vibrations or is dusty.
- Page 13 When hanging from a ceiling Ensure that the ceiling is strong enough to support the LCD and it accessories. Also consider the effects of earthquake, unexpected vibration, and other external forces when evaluating the ceiling strength. The LCD should be secured to the building’s structural frame, such as a beam, and not to materials such as light steel frame or interior decoration.
-
Page 14: Connecting To A Power Source
Connecting To a Power Source Using the power cable provided, insert the female connector into the back of the display shown the in the diagram below. Connect the male end of the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. -
Page 15: Connector Positions
Connector Positions VGA (IN) DVI (IN) RS485 (OUT) RS485 (IN) RS232 (IN) AC (IN) Power Switch DS321LR4 Unit: mm DS321LR4 User Manual 14... -
Page 16: Input / Output Terminals
Input / Output Terminals ○ ○ ○ ○ ○ ○ ○ ○ RS485 RS485 RS232 ○ ○ ○ ○ 1 VGA (IN): Connect the VGA output of a PC, or an AV device by using a VGA cable. ○ ○ ○ ○ 2 DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a DVI-HDMI cable. -
Page 17: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: the remote control only works when the main switch is in the ON position. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display. - Page 18 Front Back 100° ° ° ° DS321LR4 User Manual 17...
- Page 19 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU / ENTER OSD On / Off and Select the highlighted item Move the cursor up or change the setting of the selected item LEFT Move the cursor left or change the setting of the selected item RIGHT...
-
Page 20: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION POWER Power On / Off MENU / ENTER OSD On / Off and Select the highlighted item DOWN Move the cursor down or change the setting of the selected item Move the cursor up or change the setting of the selected item ─... -
Page 21: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the real panel control or remote control to display the OSD. Use the navigation arrows to select and adjust menu items. ITEM 1 ITEM 2 DESCRIPTION Set the picture mode. Picture Mode The options are: Standard, Dynamic, Soft, Personal. - Page 22 Restore Default Restores all settings to default. Setup Wizard Most setting items can be guided by the setup wizard. Software Update (USB) New version firmware update. Play video and audio files which stored in USB storage device. The options are: PHOTO, MUSIC, MOVIE. Some functions may not be available for all input.
-
Page 23: Specifications
Specifications MODEL DS321LR4 LCD Panel Size 31.5 inches Native Resolution 1920 x 1080 Brightness 2500 cd/m² (Typ.) 10,000:1 (Static) Contrast Ratio PANEL 1,000,000:1 (Dynamic) Response Time 6.5 ms (Typ.) 178° / 178° Viewing Angle Life Time 50,000 hrs (Typ.) Panel Surface AG, 3H Power Supply Internal... -
Page 24: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 50 Hz 27 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 50 Hz 1280 74.25 MHz 16:9 60 Hz 1280... -
Page 25: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 26: Rs-232 Output
RS-232 Output PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 RS-232 Input PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 DS321LR4 User Manual 25... -
Page 27: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS321LR4 User Manual 26... -
Page 28: Recycling And Energy Information
Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. Energy usage... -
Page 29: Material Contents Declaration
Material Contents Declaration Hazardous Substances Hexavalent Polybrominated Polybromodiphenyl Part Name Lead Mercury Cadmium Chromium Biphenyls Ethers PBDE PCBA CHASSIS ACCESSORY PACKAGE “O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.
