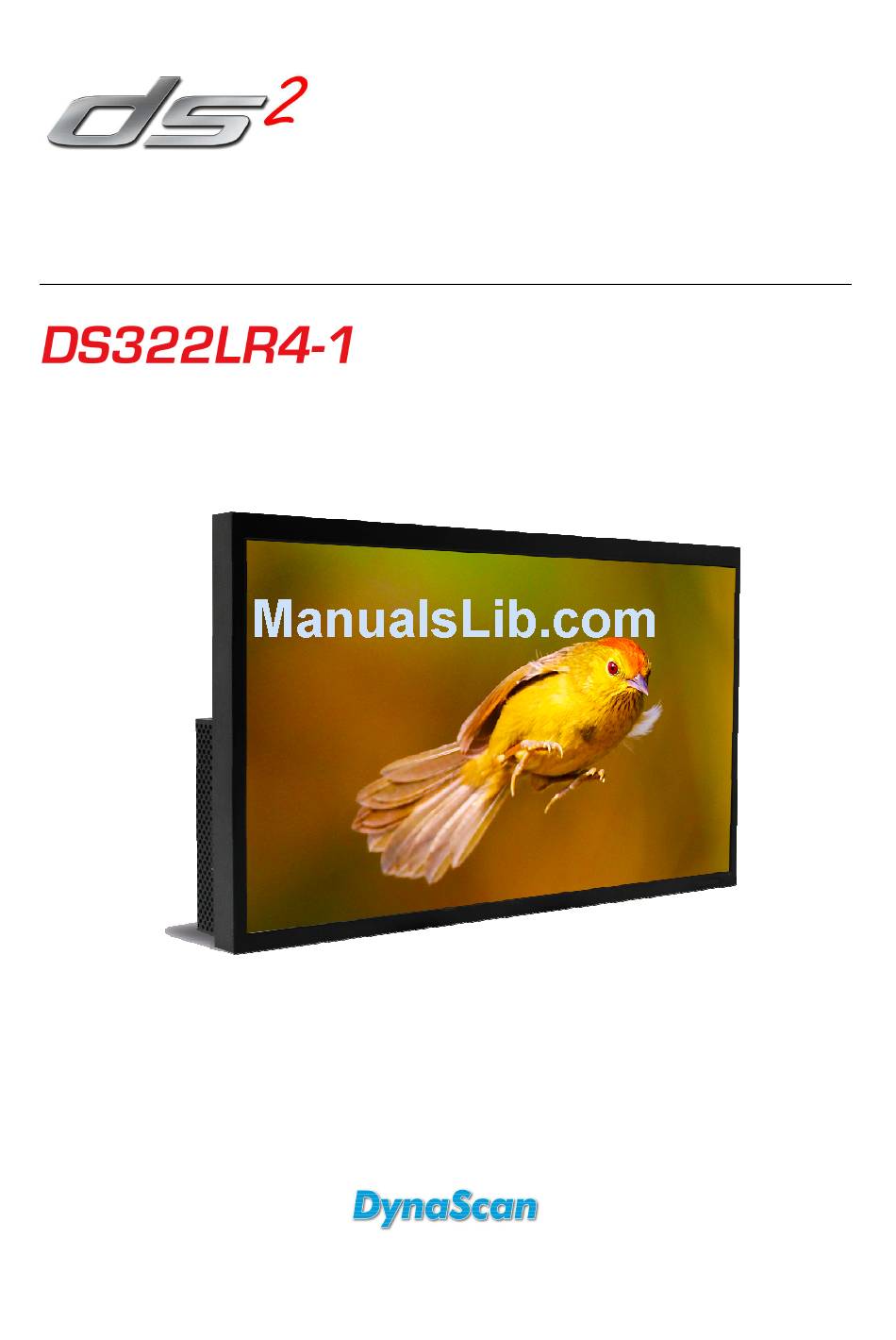

Page 1: User Manual
Professional LCDs User Manual Version 2.00 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice... -
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Safety Precautions ..........................4 Safety Precautions ..........................4 Important Safety Information ........................5 Getting Started ............................6 Contents ............................. 6 Installing and Replacing Remote Control Batteries ................6 Installation............................... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
EN 61000-3-3:2008 EN 55024:2010 EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-6:2009 DynaScan Technology, EN 61000-4-8 :2010 Inc. EN 61000-4-11:2004 VCCI report ready. VCCI Class A ITE V-3/ 2013.04 Technical Requirements V-4/ 2012.04 Supplementary Test Conditions for Equipment under... -
Page 5: Safety Precautions
Safety Precautions CAUTION Do not install the display in a wet environment or place anything filled with liquid such as a vase or beverage on top of it. Do not install the display near flammable objects such as gasoline or other volatile liquids. -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. • Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: •... -
Page 7: Getting Started
Getting Started Contents Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. • • DS322LR4-1 Professional LCD. Power cable x1 pc. -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible for such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 DS322LR4-1 Unit: mm Orientation • When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. Portrait mode: Rotate the set clockwise 90° (mandatory) Installation Location •...
- Page 10 • For installations with screens inset into the wall, refer to section: Enclosures for cooling and ventilation considerations. Single display Video wall When hanging from a ceiling • Ensure that the ceiling is strong enough to support the LCD and it accessories. Earthquake, unexpected vibration and other external forces should be taken into consideration when evaluating the ceiling strength.
-
Page 11: Wall Mounting
• A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. • Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting An External Video Source
Connecting an External Video Source Turn OFF the power of both LCD and external video device. Using the DVI cable (or HDMI cable) provided, insert one end into the DVI-IN (or HDMI-IN) on the back of the display shown the in the diagram below. -
Page 13: Connector Positions
Connector Positions ○ ○ ○ ○ ○ ○ ○ Power Switch AC (IN) RS232 (IN) RS485 (IN) RS485 (OUT) HDMI (IN) ○ ○ DVI (IN) VGA (IN) DS322LR4-1 ○ ○ ○ ○ ○ ○ ○ ○ ○ DS322LR4-1 User Manual... -
Page 14: Input / Output Terminals
Input / Output Terminals ○ ○ ○ ○ ○ ○ ○ ○ ○ VGA (IN): Connect the VGA output of a PC, or an AV device by using a VGA cable. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a DVI-HDMI cable. -
Page 15: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display. - Page 16 DS322LR4-1 DS322LR4-1 User Manual...
- Page 17 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU / EXIT OSD On / Off and exit the current selection. Move the cursor up or change the setting of selected item. LEFT Move the cursor left or change the setting of the selected item.
-
Page 18: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off and exit the current selection. DOWN Move the cursor down or change the setting of the selected item. Move the cursor up or change the setting of the selected item. ─... -
Page 19: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. ITEM 1 ITEM 2 DESCRIPTION Set the picture mode. -
Page 20: Specifications
Specifications MODEL DS322LR4-1 LCD Panel Size 31.55 inches Native Resolution 1920 x 1080 Brightness 2500 cd/m² (Typ.) 3,000:1 (Static) Contrast Ratio PANEL 10,000,000:1 (Dynamic) Response Time 12 ms (Typ.) Viewing Angle 178°/ 178° Life Time 50,000 hrs (Typ.) Panel Surface AG Haze 1%, 3H Power Supply Internal... -
Page 21: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz... -
Page 22: Pin Assignments
Pin Assignments Digital RGB Input (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR RX2- RX1- RX0- RX2+ RX1+ RX0+ Shield (RX2 / RX4) Shield (RX1 / RX3) Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- RS-232 Intput... -
Page 23: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS322LR4-1 User Manual... - Page 24 Copyright © DynaScan Technology, Inc. All Rights Reserved.
