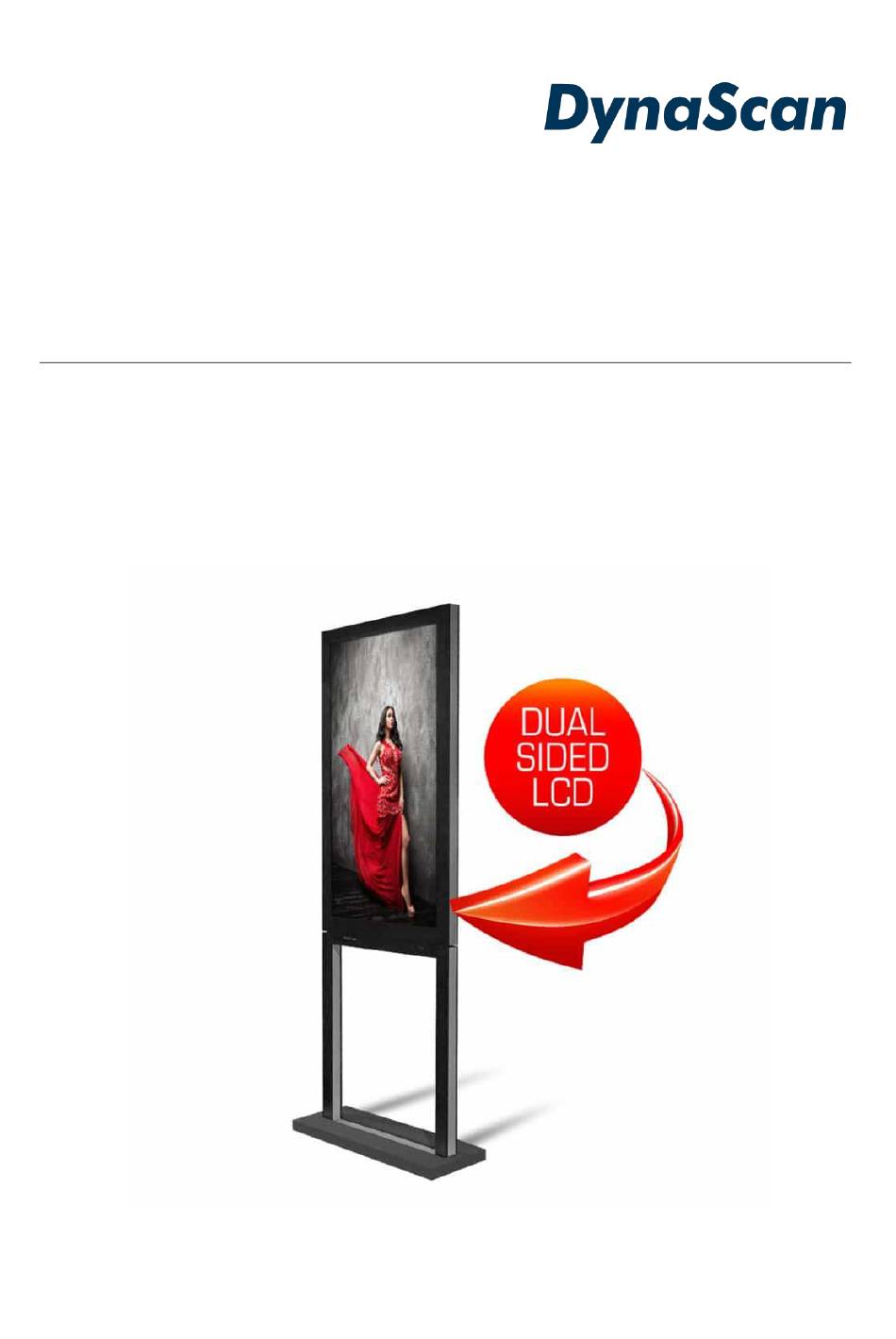

- Page 1 User Manual DS551DR4 Version 2.04 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Using the Remote Control ........................ 12 Navigating the On Screen Display (OSD) Menu .................. 15 Specifications ............................20 Input Mode ............................21 Pin Assignments ........................... 22 RS-232 Input ............................ 22 Troubleshooting ............................ 23 About DSM365 ............................. 24 DS551DR4 User Manual 1... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
( Device certification standard: EN 300 328 / EN 301 489-1/-17 / EN 55032 / EN 55024 / EN 60950 / EN 62311 ) - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS551DR4 User Manual 3... -
Page 5: Safety Precautions
This phenomenon is known as image burn-in and is not covered by the manufacturer's warranty. In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. DS551DR4 User Manual 4... -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. • Clean the LCD vents at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: •... -
Page 7: Getting Started
Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS551DR4 User Manual 6... -
Page 8: Installation
Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. If you attempt to install the LCD on a different way, such as hanging from the ceiling or your customized platform/ enclosure;... - Page 9 • Leave clearance around the outer edge of the LCD from other objects to ensure proper ventilation. • For installations with screens inset into the wall, refer to section: Enclosures for cooling and ventilation considerations. DS551DR4 User Manual 8...
-
Page 10: Connecting To A Power Source
Connect the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. A loose power connection may cause damage to the display and/or lead to a fire hazard. DS551DR4 User Manual 9... -
Page 11: Connecting An External Video Source
Connect the other end of the HDMI cable to the HDMI output of the video source. Refer to your video device’s manual for additional information. NOTE: HDMI-1 connect to 3000 nit display. HDMI-2 connect to 1000 nit display. DS551DR4 User Manual 10... -
Page 12: Connector Positions
USB port: Support for USB flash drive storage, mouse and keyboard. (for 1000 nit) HDMI-2 (IN): Connect the HDMI output of a PC, or the HDMI output of an AV device via a HDMI cable. (for 1000 nit) DS551DR4 User Manual 11... -
Page 13: Operating Instructions
The operating range of the remote control is 2.5 meters (8 feet). Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS551DR4 User Manual 12... - Page 14 DS551DR4 DS551DR4 User Manual 13...
- Page 15 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DS551DR4 User Manual 14...
-
Page 16: Navigating The On Screen Display (Osd) Menu
Adjust the red light level. Range 0 – 100. Note: The feature is only supported on User Picture mode. Adjust the green light level. Range 0 – 100. Note: The feature is only supported on User mode. DS551DR4 User Manual 15... - Page 17 Note: The internal clock will continue to function when the power is turned off. Time Power Control Turn on / off automatic power schedule Timer function. Power On Time HH:MM Set turn-on time. Power Off Time HH:MM Set turn-off time. DS551DR4 User Manual 16...
- Page 18 [Power Button] on the remote control can wake up the display. Restore all settings to default. Reset to Default Note: It does not modify CURRENT TIME, Setting POWER ON TIME and POWER OFF TIME. DS551DR4 User Manual 17...
- Page 19 ITEM 2 DEFAULT DESCRIPTION Temperature LCD inner (backlight unit) temperature monitoring. (BLU) Temperature LCD outer (ambience) temperature monitoring. Information 2 (Amb.) (temperature sensor installation is necessary) ALS Level The brightness of ambience monitoring. (Amb.) (Ambience Light Sensor) DS551DR4 User Manual 18...
- Page 20 100% and Over Heat Protection is disabled. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DS551DR4 User Manual 19...
-
Page 21: Specifications
Operation Temperature 0°C ~ 40°C ENVIRONMENT Storage Temperature -20°C ~ 60°C Humidity 10%~80% RH Non-Condensing HDMI IN *2 RS-232 IN *1 I/O Ports RJ-45 USB port Fuse 6.3A Design and specifications are subject to change without notice. DS551DR4 User Manual 20... -
Page 22: Input Mode
59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz 85.5 MHz 16:9 1920 1080 60 Hz 148.5 MHz 16:9 DS551DR4 User Manual 21... -
Page 23: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS551DR4 User Manual 22... -
Page 24: Troubleshooting
Cannot control the display ⚫ Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS551DR4 User Manual 23... -
Page 25: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. • Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. SETTINGS Enter the setting menu. DS551DR4 User Manual 24... - Page 26 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS551DR4 User Manual 25...
