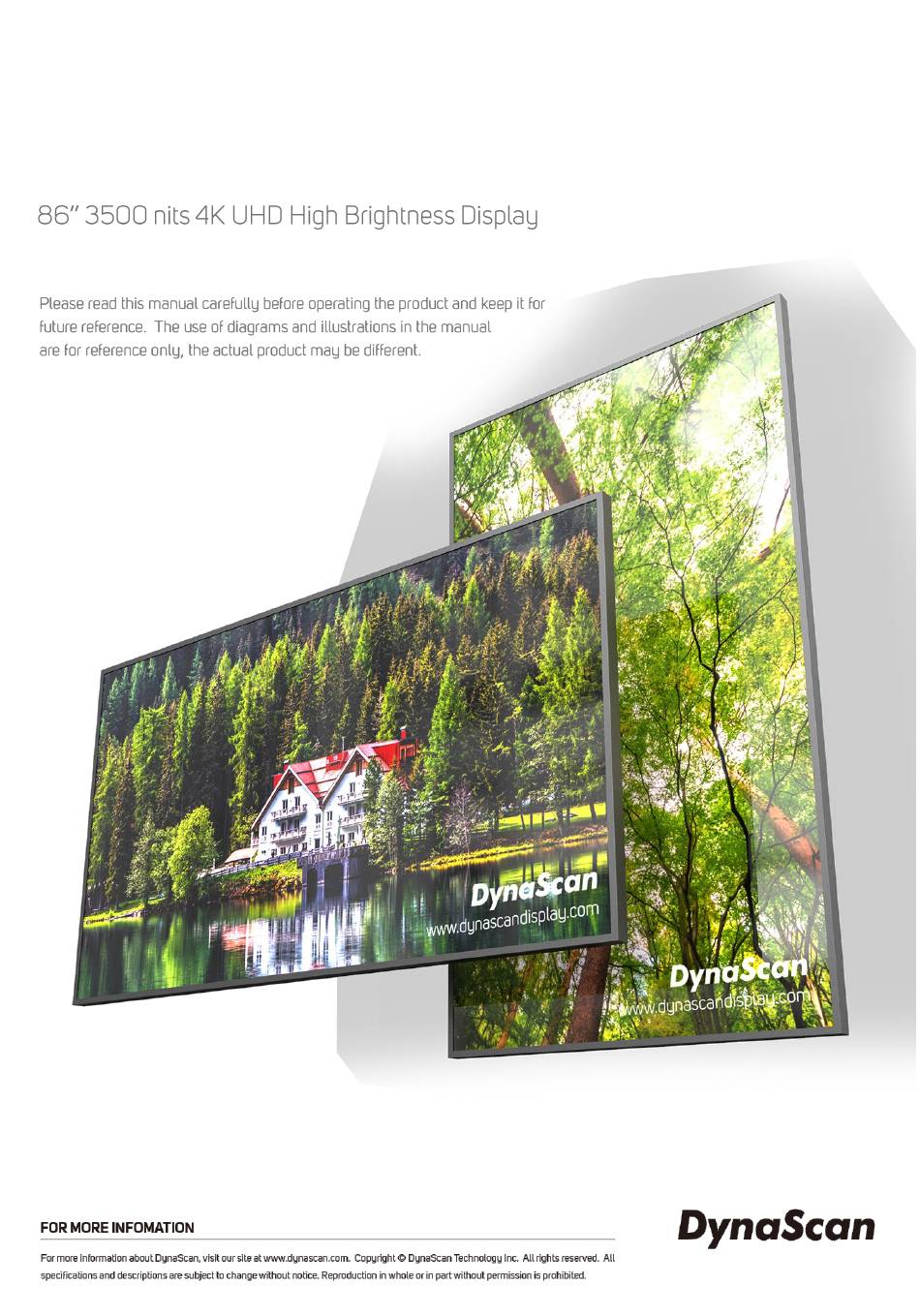

- Page 1 DS861LR4 USER MANUAL 66901 | V2.18...
-
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 1 Recycling and Energy Information ......................1 Declaration of Conformity ........................2 Safety Precautions ..........................3 Important Safety Information ........................4 Getting Started ............................5 Contents ............................. 5 Installing and Replacing Remote Control Batteries ................5 Installation............................... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community. Article (a) Article (b) EN 62368-1 :2014+A11 :2017 EN 55032:2015/AC:2016 Class A IEC 62368-1 :2014 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55035:2017 DS861LR4 User Manual 2... -
Page 5: Safety Precautions
Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DS861LR4 User Manual 3... -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... -
Page 7: Getting Started
Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS861LR4 User Manual 5... -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) DS861LR4 User Manual 7...
- Page 10 Leave clearance around the outer edge of the LCD (or video wall matrix) from other objects to ensure proper ventilation. For installations with screens inset into the wall, refer to section: Enclosures for cooling and ventilation considerations. Single display DS861LR4 User Manual 8...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting To A Power Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) which shown in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DS861LR4 User Manual 10... -
Page 13: Input / Output Terminals
Power Switch: Press to switch the main power on/off. *USB 3.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DS861LR4 User Manual 11... -
Page 14: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the side of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS861LR4 User Manual 12... -
Page 15: Using The Remote Control
IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet). NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS861LR4 User Manual 13... - Page 16 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DS861LR4 User Manual 14...
-
Page 17: Using The Built-In Keypad
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS861LR4 User Manual 15... -
Page 18: Navigating The On Screen Display (Osd) Menu
, it will redetection the Main Source per few hour. Only effective in Main input source. If the display didn’t get both of commend Command Detection and the input signal, it will change to Failover1 input. 2. Picture DS861LR4 User Manual 16... - Page 19 (ESK); fixed time by timer. By Light Value:Screen brightness determined by ambient light values, up to 4 levels. By Time:Screen brightness determined by scheduled values, up to 4 levels. DS861LR4 User Manual 17...
- Page 20 Day of Week Set the day of week. (Monday to Sunday) 5.Schedule ITEM 1 ITEM 2 DEFAULT DESCRIPTION Power ON|OFF Schedule Automatic power on / off schedule function. Time DS861LR4 User Manual 18...
- Page 21 And set the Time. OSD Password Turn On: Protection Create Password > Confirm Password > Password Protection On Turn Off: Enter Password > Password Protection Off Export & Import Export or Import OSD Setting by USB. DS861LR4 User Manual 19...
- Page 22 LCD inner (backlight unit) temperature Cabinet Temp. monitoring. The Extension Thermal Kit (ETK302) is for ETK Temp. ambient temperature monitoring. LCD inner (backlight unit) Humidity Humidity monitoring. Some functions may not be available for all models. DS861LR4 User Manual 20...
-
Page 23: Specifications
RS-232 IN *1 Audio OUT *1 I/O Ports USB port IN *1 RJ-45 IN *2 Micro SD card IN *1 Mini USB IN *1 (ESK only) Fuse Design and specifications are subject to change without notice. DS861LR4 User Manual 21... -
Page 24: Input Mode
60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz 1920 1200 60 Hz 1920 1440 60 Hz 2560 1440 60 Hz 3840 2160 60 Hz DS861LR4 User Manual 22... -
Page 25: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS861LR4 User Manual 23... -
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS861LR4 User Manual 24... -
Page 27: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. DS861LR4 User Manual 25... -
Page 28: About Sdm
Install SDM on the display 1. Loosen screws and remove the SDM cover from the display. 2. Insert the SDM module into the display and fasten screws. Make sure the SDM properly installed to avoid causing the devise destruction. DS861LR4 User Manual 26... -
Page 29: Switch To Sdm
Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [ Input Source →Main →SDM ] DS861LR4 User Manual 27... - Page 30 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS861LR4 User Manual 28...
