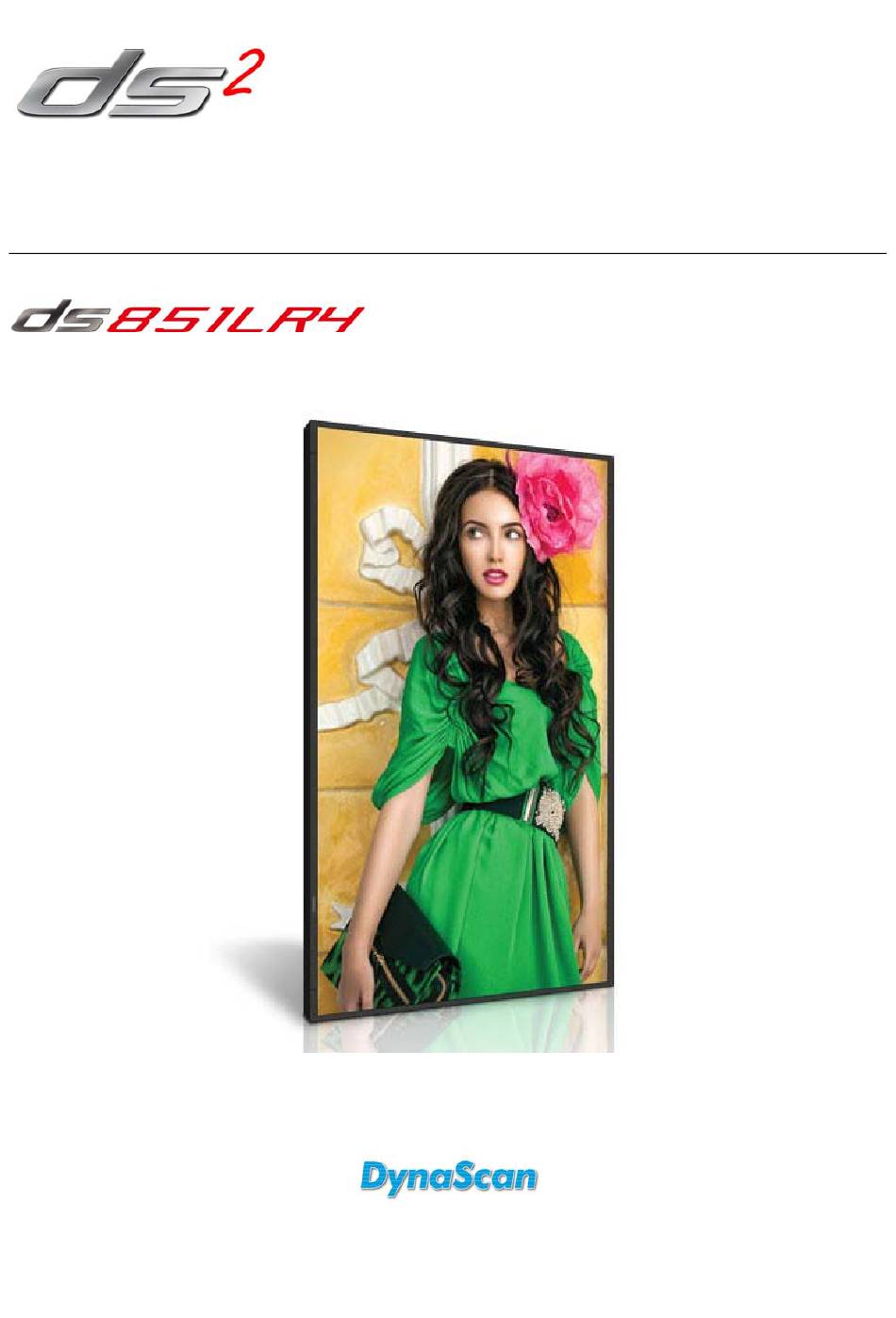

- Page 1 Professional LCDs User Manual Version 1.00 The use of diagrams and illustrations in the manual for reference only, actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Contents Safety Precautions................................3 Important Safety Information ............................4 Declaration of Conformity .............................6 Getting Started................................7 Contents..................................7 Installing and Replacing Remote Control Batteries ....................8 Installation..................................9 Mounting ...................................9 Connecting To a Power Source..........................13 Connecting an External Video Source........................13 Connecting Multiple Displays..........................14 Connector Positions..............................15 Input / Output Terminals ............................16 Operating Instructions..............................17 Powering On/Off the Display ..........................17 Using the Remote Control ............................17... - Page 3 Digital RGB Input (DVI-D): DVI..........................31 RS-232 Output ................................32 RS-232 Input................................32 Troubleshooting ................................33 Recycling and Energy Information..........................34 Material Contents Declaration ............................35 DS851LR4 User Manual 2...
-
Page 4: Safety Precautions
Safety Precautions CAUTION Do not install display in a wet environment or place anything on the top of the display filled with liquid, such as vase or beverage. Do not install near flammable objects, such as gasoline or other volatile liquids. Do not install near any heat sources such as radiators or other heating devices. -
Page 5: Important Safety Information
Handle the LCD with care. Save the packaging materials for the next transport. Please clean the backside of the LCD at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. - Page 6 Cleaning the Panel Use a soft, lint-free cloth to gently wipe dust off the screen panel. Do not use any hard material to wipe the panel. Do not poke the panel with your hand or any sharp object (such as a pen or a nail) or exert excessive pressure to the panel to prevent damage to the panel.
-
Page 7: Declaration Of Conformity
Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004 /108 /EC EN 55032:2015+AC:2016-07 Class A ITE EN 55032:2012+AC:2013 Class A ITE EN 61000-3-3:2013 EN 55024:2010+A1:2015 EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 DynaScan Technology, Inc. EN 61000-4-11:2004 DS851LR4 User Manual 6... -
Page 8: Getting Started
Getting Started Contents Confirm the accessories below are included with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary by product. • DS851LR4 Professional LCD • Power cable x1 pc •... -
Page 9: Installing And Replacing Remote Control Batteries
Installing and Replacing Remote Control Batteries 1. Open the battery compartment cover. 2. Insert 2 new AAA batteries. 3. Close the battery compartment cover. Warning: • Incorrect usage of batteries may cause leakage or explosion. • Pay attention to the polarity when installing batteries. •... -
Page 10: Installation
Installation The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover damages caused by improper installation and DynaScan shall not be held responsible in such incident. - Page 11 DS851LR4 Unit: mm DS851LR4 User Manual 10...
- Page 12 Orientation When used in the portrait orientation, the LCD should be rotated clockwise such that the left edge becomes the top edge. Installation Location The ceiling or the wall must have enough strength to support the LCD and its accessories. Do not install in a location with strong vibrations or is dusty.
- Page 13 When hanging from a ceiling Ensure that the ceiling is strong enough to support the LCD and it accessories. Also consider the effects of earthquake, unexpected vibration, and other external forces when evaluating the ceiling strength. The LCD should be secured to the building’s structural frame, such as a beam, and not to materials such as light steel frame or interior decoration.
-
Page 14: Connecting To A Power Source
Connecting To a Power Source Using the power cable provided, insert the female connector into the back of the display shown the in the diagram below. Connect the male end of the power cable to a 200-240 volt, 50 / 60Hz AC power outlet. ... -
Page 15: Connecting Multiple Displays
RS-232 IN of the 2 display. Repeat connection for remaining displays. Note: The DynaScan “Display Manager” application is required to be installed on the PC in order to use the External Control feature. Computer RS-232 (OUT) RS-232 (IN) -
Page 16: Connector Positions
Connector Positions ① ② ③ ④ ⑤ ⑥ ⑦ DVI (IN) Display Port (IN) VGA (IN) Audio (OUT) Audio (IN) USB (IN) RJ-45(IN) ⑧ ⑨ ⑩ ⑪ ⑫ RS-232 (IN) RS-232 (OUT) AC (OUT) AC (IN) Power Switch DS851LR4 ⑩ ⑪ ⑫ DS851LR4 User Manual 15... -
Page 17: Input / Output Terminals
Input / Output Terminals ○ 1 DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a DVI-HDMI cable. (Support up to 1920 x 1080 output resolution) ○ 2 Display Port (IN): Connect the DP output of a PC, or the DP output of an AV device via a DP cable. (Support up to 3840 x 2160 output resolution) ○... -
Page 18: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: the remote control only works when the main switch is in the ON position. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display. - Page 19 DS851LR4 DS851LR4 User Manual 18...
- Page 20 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU / EXIT OSD On / Off and exit the current selection. Move the cursor up or change the setting of selected item. LEFT Move the cursor left or change the setting of the selected item.
-
Page 21: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off and exit the current selection. Move the cursor up or change the setting of the selected item. DOWN Move the cursor down or change the setting of the selected item. ┼... -
Page 22: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the real panel control or remote control to display the OSD. Use the navigation arrows to select and adjust menu items. ITEM 1 ITEM 2 DEFAULT DESCRIPTION Display Port Choose DP as the specific input source. - Page 23 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Contrast Adjust the contrast level. Range 0 – 100. Sharpness Adjust the sharpness level. Range 0 – 100. Adjusts the Gamma value. (Native, 1.8, 2.0 Gamma Native and 2.2) Selects the black level to adjust the screen Picture gray scale.
- Page 24 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Volume Adjust the volume. Range 0 – 100. Audio Settings Mute Turn On / Off Mute adjustment. ITEM 1 ITEM 2 DEFAULT DESCRIPTION To turn On / Off the auto brightness adjustment. (Off, On and Timer) Note: With AUTO BRIGHTNESS off, the Backlight screen brightness will remain at HIGH LEVEL...
- Page 25 light is bright, the screen will adjust to the set HIGH LEVEL brightness value; when ambient light is dark, the screen will adjust to the set LOW LEVEL brightness value. When the Timer mode is set, the display will automatically switch the brightness according to the set time.
- Page 26 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Set number of rows in a video wall. Number Of Rows Note: The maximum number of rows in a daisy chain is 15. Set number of columns in a video wall. Number Of Columns Note: The maximum number of columns in a daisy chain is 15.
- Page 27 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Choose to enable or disable the DHCP function. If enabled, the display will assign DHCP the IP address, Subnet mask and Default gateway automatically. If disabled, the Network following values will be entered manually. 192.168.0.100 Assign IP address.
- Page 28 Enable/disable the remote control for Menu. Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. Restore all settings to default. Factory Reset Note: It does not modify CURRENT TIME.
- Page 29 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Model DS851LR4 The display’s model. Serial Number The display’s serial number. Information Hardware Version The H/W version. Firmware Version The F/W version. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted in during production to a preset color temperature of 6500K.
-
Page 30: Specifications
Specifications MODEL DS851LR4 LCD Panel Size 85 inches Native Resolution 3840 x 2160 Brightness 3500 cd/m² (Typ.) Contrast Ratio 5,000:1 PANEL Response Time 6.5 ms (Typ.) 178° / 178° Viewing Angle Life Time 50,000 hrs (Typ.) Panel Surface Haze 0.5% Power Supply Internal Rated Voltage... -
Page 31: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz... -
Page 32: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 33: Rs-232 Output
RS-232 Output PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 RS-232 Input PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 DS851LR4 User Manual 32... -
Page 34: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS851LR4 User Manual 33... -
Page 35: Recycling And Energy Information
Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. Energy usage... -
Page 36: Material Contents Declaration
Material Contents Declaration Hazardous Substances Hexavalent Polybrominated Polybromodiphenyl Part Name Lead Mercury Cadmium Chromium Biphenyls Ethers PBDE PCBA CHASSIS ACCESSORY PACKAGE “O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. - Page 37 Copyright © DynaScan Technology, Inc. All Rights Reserved.
