- Page 1 User Manual TOTOLINK Wireless-N Router...
-
Page 2: Table Of Contents
Content Package List ..........................- 2 - Introduction ........................... - 2 - Section 1: Product Overview ......................- 3 - 1.1 Product Features ........................- 3 - 1.2 Specifications ......................... - 3 - Section 2: Hardware installation ....................- 5 - 2.1 Panel layout ........................... - Page 3 4.4.3 Mgmt Access List ......................- 22 - 4.4.4 Misc Setup........................- 22 - 4.5 Utility ............................ - 23 - 4.5.1 VPN Setup........................- 23 - 4.5.2 DDNS ..........................- 23 - 4.5.3 WOL ..........................- 24 - 4.5.4 Host Scan........................- 24 - 4.6 Traffic ...........................
-
Page 4: Package List
Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the wireless router for assistance. Thank you for purchasing TOTOLINK Wireless-N Broadband Router! It is a hybrid design product which combines Ethernet technology and wireless access into a single stand-alone unit. -
Page 5: Section 1: Product Overview
1.1 Product Features Complies with IEEE 802.11n; 802.11g; 802.11b standard for 2.4GHz Wireless LAN. Supports PPPoE, Dynamic IP, and static IP broadband connection. Supports UPnP, DDNS, static routing, VPN Pass-through. Wi-Fi protected security(WPS), set your security at a push button. Supports virtual server, special application and DMZ host. -
Page 6: Wireless Security
Wireless Transmit 20dBm(MAX) Power 270M: -65dBm@10% PER 135M: -65dBm@10% PER 54M: -68dBm@10% PER Receiver Sensitivity 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER 1-11 (North America); Channels 1-13 (General Europe) WLAN Modulation BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) Scheme Antenna Type 2.4GHz omni antenna... -

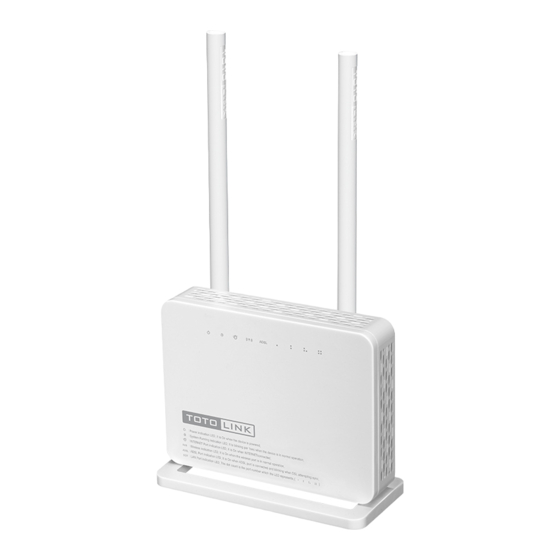

Page 7: Panel Layout
2.1 Panel layout 2.1.1 Front panel LED indicators: Led Name Action Description Power off Power power on the router has a hardware error the router is working properly Flashing wireless function is disabled WLAN wireless function is enabled Flashing there is no device connected to the corresponding port WAN / there is a device connected to the corresponding port LAN 1, 2, 3, 4... -
Page 8: System Requirements
Plug in the DC power jack. DC IN Note: Please use the original power adapter to prevent the unsuitable power adapter damage to your router. WAN port WAN port (RJ-45). Connect xDSL Modem / Cable Modem or Ethernet LAN port 4 RJ-45 ports. - Page 9 Installation Environment Requirements. 3. Adjust the direction of the antenna. Normally, upright is a good direction. 4. Connect the PC(s) and each Switch/Hub on your LAN to the LAN Ports in the router. 5. Connect the DSL/Cable Modem to the WAN port on the router. 6.
- Page 10 C. Type “ipconfig” and press “enter” D. If the result displayed is similar to that shown in the below figure, the connection between your PC and the router has been established, or else please repeat the above steps and restart the PC. IP address from 192.168.1.2 to 192.168.1.254 Subnet mask is 255.255.255.0 ;...
-
Page 11: Section 3:Quick Installation Guide
3.2 Quick Installation Guide With a Web-based (Internet Explorer or Netscape® Navigator) utility, the wireless router is easy to configure and manage. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a web browser. 1) Run Internet Explorer ( 2) Input http://192.168.1.1 in Internet Explorer’s address bar, you will see the homepage. -
Page 12: Internet Setup
Enter “admin” for the User name and Password, both in lower case letters. Then click the “OK” or press “Enter”. 4) You will enter into the wireless router configuration interface. 3.2.1 Internet setup This page is used to configure the parameters for Internet network which connects to your wireless router WAN port. - Page 13 2). PPPoE User (ADSL) setup This connection method is suitable for virtual dial-up Internet access. Input the User ID and Password provided by your Internet service provider, then click “Apply”. - 11 -...
-
Page 14: Wireless Setup
3) Static IP User setup Input the IP address that provided by your ISP (Internet Service Provider). If you are not clear about this, please consult with your local ISP. 3.2.2 Wireless setup Click “Basic Setup”->“Wireless Setup”, you will see below interface: This webpage show the basic wireless parameters and wireless authentication way. -
Page 15: Firmware Upgrade
3.2.3 Firmware upgrade Click “Base Setup” ->“Firmware Upgrade”, you will see firmware upgrade webpage as below, you can choose “Auto Upgrade” or “Manual Upgrade” This page allows you to upgrade the wireless router firmware to the latest version. Please note, do not power off the device during the uploading because it may damage the system. -
Page 16: Section 4: Advanced Setup
The advanced setup includes Network, Wireless, NAT, Firewall, Utility, Traffic and System. These settings are only for more technically advanced users who have sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your wireless router. 4.1 Network Click “Network”... -
Page 17: Wireless
Notes: 1. In order to use DHCP function of the IP Router, TCP/IP protocol of PCs in LAN must be configured as “Obtain an IP address automatically”. 2. After configured please click “Apply” to make the configuration valid. Please save the configuration, otherwise configuration will be lost when IP Router is power off or restarts. -
Page 18: Wireless Setup
4.2.2 Wireless setup Click “Wireless Setup”, you will see The interface will show the basic wireless parameter and wireless certification way configuration. Wireless Status: Show current Wireless Configuration and wireless station status. Operation: You can choose Start or Stop the wireless function SSID: You can change the SSID for your wireless router Mode: If wireless connection conforms to 11G and 11B and 11N standard , Region: Area where you are using the wireless router... -
Page 19: Mac Authentication
Authentication Type: Choose authentication type (automatic/open system/share Key). Encryption Strength: Choose Key length (64/128bits). Key Input Method: Choose ASII, HEX or Pass phrase. Basic Key: Fill in Key value After finished configuration, click “Apply”. Notes: After setup, please click , save IP router configuration, otherwise, configuration will be lost when power off or router is restarted. -
Page 20: Advanced Setup
4.2.6 Advanced Setup Advanced Setup is for advanced parameter settings; keep the default configuration for common users. 4.3 NAT/Routing Click "NAT/Routing” menu, you can see following interface: 4.3.1 Port Forwarding Entered into this interface, you can redirect common network services automatically to a specific device behind the NAT firewall. -
Page 21: Dmz Host
4.3.2 DMZ Host The DMZ (Demilitarized Zone) host feature allows one local host to be exposed to the Internet for a special-purpose service such as Online Game and video conferencing. DMZ host forwards all the ports at the same time. Any PCs which port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it, because its IP Address may be changed when using the DHCP function. -
Page 22: Port Trigger
4.3.3 Port Trigger You can achieve some special purposes by this setting. 4.3.4 Misc Setup Misc setup provides FTP Private Port, Multicast Forward and NAT on/off setup. 4.3.5 Routing Table You can add or delete the static routing rules at here. - 20 -... -
Page 23: Firewall
4.4 Firewall Click "Firewall" menu, you will see: Click the sub-items, you can set up the corresponding function. 4.4.1 Internet Access Control Internet Access Control provides multiple security protection. It can achieve MAC/Port/IP filtering, Internet access time control, URL filtering functions, etc. facilitating the user to control Internet access. -
Page 24: Mgmt Access List
4.4.3 Mgmt Access List Notes: If you want to login through the 80-port router, you must use "IP address (for the router WAN port IP address) port" approach to log router implementation of WEB interface control. (For example, http://220.135.211.56:80) 4.4.4 Misc Setup Misc Setup: Generally maintain the default. -
Page 25: Utility
4.5 Utility Click "Utility" menu, you will see: 4.5.1 VPN Setup The wireless router provides PPTP protocol VPN connection, and it supports 5 VPN users at most. 4.5.2 DDNS DDNS (Dynamic Domain Name Server), its main function is to achieve a fixed domain name to dynamic IP resolution, for the use of dynamic IP address users, Internet access in each new IP, the installation on the host software on the dynamics of the domain name to IP address will be sent to the DDNS service provider from the dynamic analysis server... -
Page 26: Wol
4.5.3 WOL Users can use this Wake On Line function to start the PC remotely. 4.5.4 Host Scan It facilitates the user to view the working status of the PC, including status of ICMP, ARP package sending and receiving, and TCP port communication information. 4.6 Traffic Click "Traffic"... -
Page 27: Qos Setup
4.6.1 QoS Setup Do not allow to use radix point, ex: 2.5Mbps -25000kbps. You can choose this as user defined rule or predefined rule IP addresses can be a single IP address; also can be set to an IP address segment. 4.6.2 Connection Info It indicates the present connection information of the wireless router in graphic and digital, data package sending and receiving status of each PC in connection. -
Page 28: Wired Port Setup
4.6.4 Wired Port Setup - 26 -... -
Page 29: Port Rate Control
4.6.5 Port Rate Control 4.6.6 Switch Setup You can send a copy of network packets seen on one LAN port to a network monitoring connection on another LAN port. At the same time, the send port can not transmit data. This is commonly used for network appliances that require monitoring of network traffic, such as an intrusion-detection system. -
Page 30: Admin Setup
4.7.2 Admin Setup Here you can change login account name and password, and administrator email information. Firstly please input your old ID and password, and then input your expected new ones. If you input your old ID and password correctly, then click “Apply” to change it. - 28 -... -
Page 31: System Time
Admin E-Mail Setup: If you want to receive IP routing log, set up Email address and SMTP server to receive it. 4.7.3 System Time You can set the time server and time zone for your wireless router system time. 4.7.4 Config Backup/Restore This webpage allows you to save current settings to a file or reload the settings from the file which was saved previously. - Page 32 Web site www.totolink.net...
