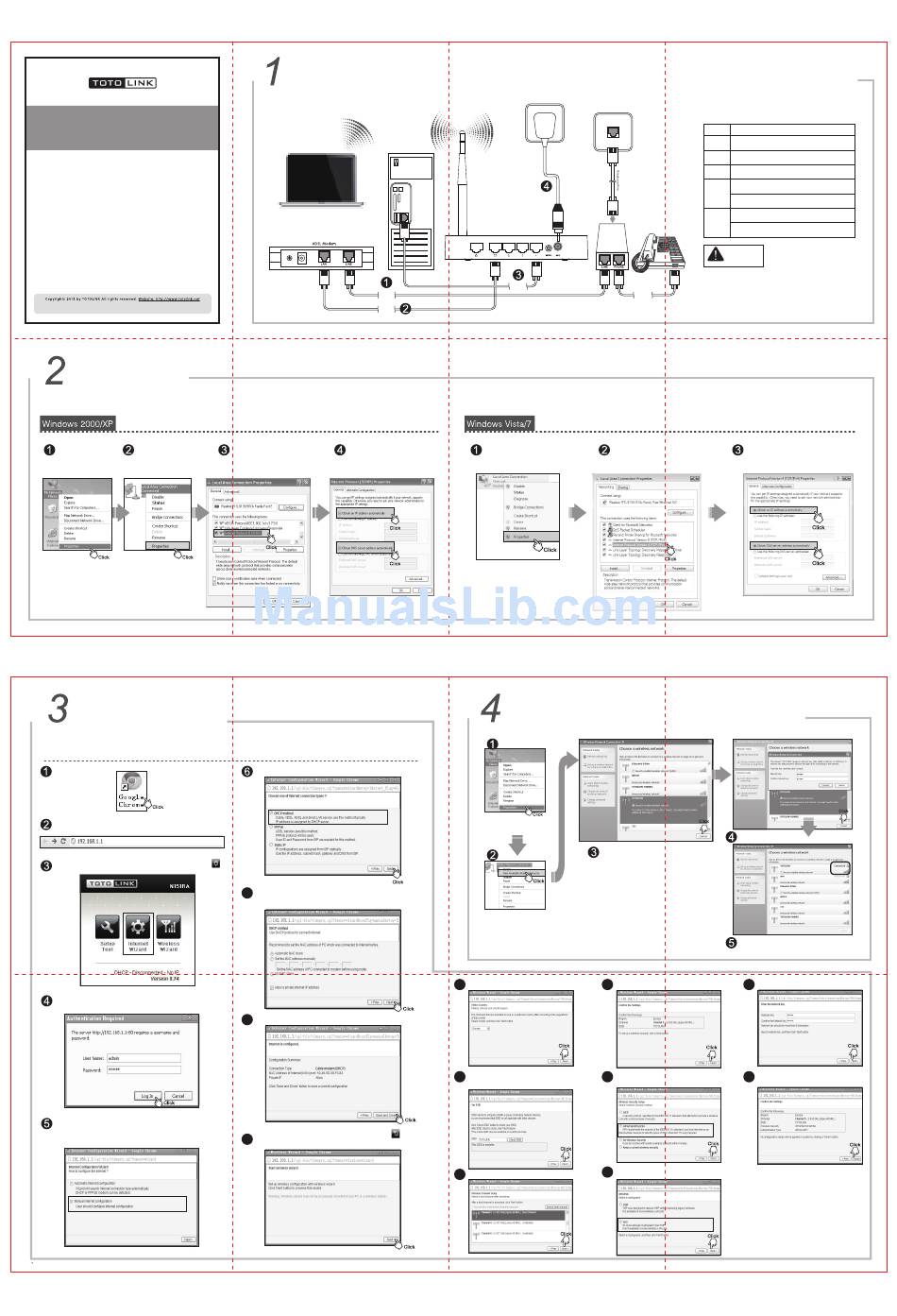

Toto Link N302R Plus Installation Manual

Quick Installation Guide
Wireless-N Broadband Router
Information in this docutment is subject to change without prior notice.
Set Up PC
For Windows 2000 or Windows XP Operating System, please comply with following steps to set up.
Right-click "My Network Right-click "Local Area
Places", click "Properties" Connection", click "Properties"
Set Up Router
Please set up the router following below steps.
Run the Web browser.
Type 192.168.1.1 in the Web browser address bar, and then press Enter.
It will show up the following page, please click Internet Wizard icon
Enter valid User Name and Password (The default user name and
password are "admin"). Then click "Log In" button or press Enter.
You can choose "Automatic Internet Configuration" or "Manual Internet
Configuration" in this page. Suggests to choose "Manual Internet
Configuration" if you know the connection type provided by your ISP.
Here we take it for example.
For more information, please go to www.totolink.net

Hardware Installation

Telephone
Wire
Network
Cable
Double-click "Internet Protocol Choose "Obtain an IP address
(TCP/IP)" automatically" and "Obtain DNS
server address automatically",
click "OK"; go back to previous
interface and click "OK"
Choose Internet connection types provided by your ISP.
7
The DHCP method is selected by default. Here we take it as an example.
You can choose one method to set MAC address according to need.
Then click "Next".
8
Click Save and Close button to reply configuration.
9 After Internet wizard, please click the wireless wizard icon to start
wireless settings. Click "Next" to process this wizard.
If you access Internet by ADSL, please comply with step 1, 2, 3 and 4 in below diagram in correct order; if you access Internet by
residential broadband, please comply with step 2, 3 and 4 to connect the WAN port of your router with the residential broadband directly.
Router
Network
Cable
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network Double-click "Internet Protocol
and Internet— Network Connection", Version 4 (TCP/IPv4)"
right-click "Local Area Connection",
and choose "Properties".
Wireless Network Connection
Right-click "My Network
Places", click "Properties"
Confirm the wireless network SSID name,
choose one that you would like to connect,
then click "Connect"
Right-click "Wireless Network
Connection", and click "View
Available Wireless Networks"
10 13
Choose your country region and click "Next".
Click "Next" if the setting is no problem.
You can setup the wireless network name and then
11 14
Setup the encryption for the security of your
click "Check SSID" button to make sure your SSID
network.
is available. After SSID check is done, click "Next".
15 Select TKIP or AES cryptography, and then
12
Choose the best channel, and click "Next". click "Next".
After connected, please check whether the indicator lights
are normal.
Name Normal Status
This indicator lights when the router is powered on,
Power
otherwise it is off.
This indicator keeps lighting when Router powered
CPU
on.
This indicator lights when there are wireless devices
WLAN
connected and transmitting data to WLAN Router.
When the WAN port is connected successfully the
indicator lights.
WAN
During transmitting or receiving data through the
WAN port the indicator blinks.
When one of the LAN ports has a successful
1/2/3/4 connection, the corresponding indicator lights.
LAN
During transmitting or receiving data through the
LAN port the indicator blinks.
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture-proof
Telephone
Wire when storing, transporting and running;
4. The power supply must reach the rated current and power;
5. Put the router in flat places.
Choose "Obtain an IP address automatically"
and "Obtain DNS server address automatically",
click "OK"; go back to previous interface and
click "OK"
Input the encrytion key and click "Connect"
Have connected wireless network, you can access
Internet through wireless mode.
16
Input the password (more than 8 characters).
17 After confirming the settings, click "Finish"
button to apply all configuration values.
