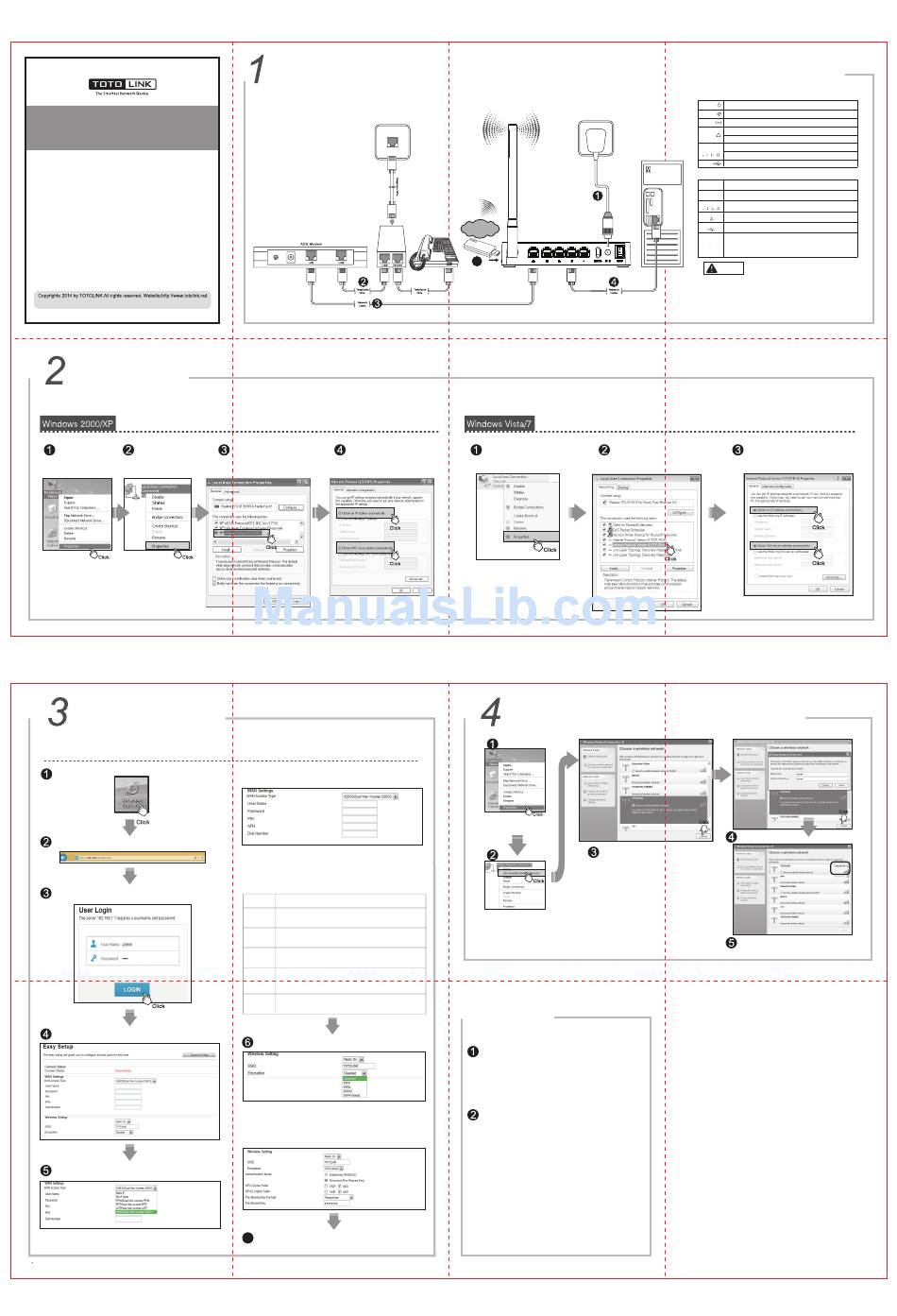

Toto Link G150R Quick Installation Manual

Quick Installation Guide
3G Wireless N Router
Suitable for: G150R,G300R
V.14.08
Information in this document is subject to change without prior notice.
Set Up PC
For Windows 2000 or Windows XP Operating System, please comply with following steps to set up.
Right-click "My Network Right-click "Local Area
Places", click "Properties" Connection", click "Properties"
Set Up Router
Please set up the router following below steps.
Run the Web browser.
Type http://192.168.1.1 in the web browser, then press Enter.
Input the User Name and Password, then click Login button
(The default Username and Password is admin).
Then you wil see the Easy Setup interface.
Choose the WAN Access Type, the default is USB3G/Dual Wan
Access USB3G.
For more information, please go to www.totolink.net

Hardware Installation

Double-click "Internet Protocol Choose "Obtain an IP address
(TCP/IP)" automatically" and "Obtain DNS
server address automatically",
click "OK"; go back to previous
interface and click "OK"
(5.1) If you want to use 3G internet, plug in your 3G USB modem into the
3G router's USB port.Then choose WAN Access Type USB3G/Dual Wan
Access USB3G
(5.2) Input the User Name、Password、APN and Dial Number the ISP
provides.
When your 3G router connected 3G network successfully, the connect status
will display "Connected".
Also, you can choose other WAN Access Type according to your actual situation.
Static IP If your ISP has provided the fixed IP that allows you to access Internet,
please choose this option.
DHCP Client Dynamic Host Configuration Protocol (DHCP) is a local area network
protocol. If you choose this mode, you will get a dynamic IP address from
your ISP automatically.
PPPoE/Dual Point-to-Point Protocol over Ethernet (PPPoE) is a virtual private and
Wan Access secure connection between two systems that enables encapsulated data
PPPoE transport. Select PPPoE option if ISP provides a PPPoE connection.
PPTP/Dual PPTP means Point to Point Tunneling Protocol is a VPN connection that
Wan Access only applies in Europe. If you choose one of them, please type in all the
PPTP information that your ISP provided for this protocol.
L2TP/ Dual L2TP means Layer 2 Tunneling Protocol is a VPN connection that only
Wan Access applies in Europe, Middle East and Africa (MEA) regions. If you choose
L2TP one of them, please type in all the information that your ISP provided for
this protocol.
USB3G/Dual It supports users connect to Internet by 3G. If you want to use this method,
Wan Access you should plug in a 3G network card in the router's USB port first.
USB3G
You can change wireless state, wireless SSID and encryption conveniently
as well.
Here we take the encryption of WPA-Mixed for example to setup the router.
(1) Choose Authentication Mode
(2) Choose WPA Cipher Suit
(3) Choose WPA2 Cipher Suite
(4) Choose Pre-Shared Key Format
(5) Input the Pre-Shared Key
7
After you have finished your settings, please click Apply to save them.
If you access Internet by 3G, please comply with step 1 & 5; if you access internet by ADSL, please comply with step 1 - 4 as below.
3
3G/4G
Network
Router
5
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network Double-click "Internet Protocol
and Internet— Network Connection", Version 4 (TCP/IPv4)"
right-click "Local Area Connection",
and choose "Properties".
Wireless Network Connection
Right-click "My Network
Places", click "Properties"
Confirm the wireless network SSID name,
choose one that you would like to connect,
then click "Connect"
Right-click "Wireless Network
Connection", and click "View
Available Wireless Networks"
5
FAQ
How to reset the router to default settings?
1. Please make sure your router's power is on regularly, then press the
RST-WPS button for about 10s.
2. Loosen the button until your router's LED lights all flashing, then you
have reset your router to default settings.
Forget the password?
Please reset your router to default settings firstly, and set a new password.
The default Username and Password is admin.
The default IP is 192.168.1.1.
LED Indicators
Light on when router is power on.
POWER
CPU Light is on when systems is working.
WIFI The indicator light is on when Wi-Fi is enabled.
Light on when WAN port connected successfully.
WAN
Light blinking while transmitting or receiving data.
Light on when the LAN port successful connected.
1/2/3/4LAN
Light blinking while transmitting or receiving data.
The indicator light is on when 3G USB modem is identified.
3G
Ports Description
DC IN Used for connecting the power adapter.
Used for power on or off the router.
ON/OFF
1/2/3/4LAN
Used for connecting the router to local PC.
WAN
Used for connecting the router to the Internet.
USB
Used for inserting 3G USB modem.
Reset: Press the button for more than 5 seconds, the
Reset/WPS
router will restore factory settings.
WPS: Press the button less than 5 seconds, enable the
RST WPS
router WPS function.
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture-proof
when storing, transporting and running.
4. The power supply must reach the rated current and power.
5. Put the router in flat places.
Choose "Obtain an IP address automatically"
and "Obtain DNS server address automatically",
click "OK"; go back to previous interface and
click "OK"
Input the encrytion key and click "Connect"
Have connected wireless network, you can access
Internet through wireless mode.
