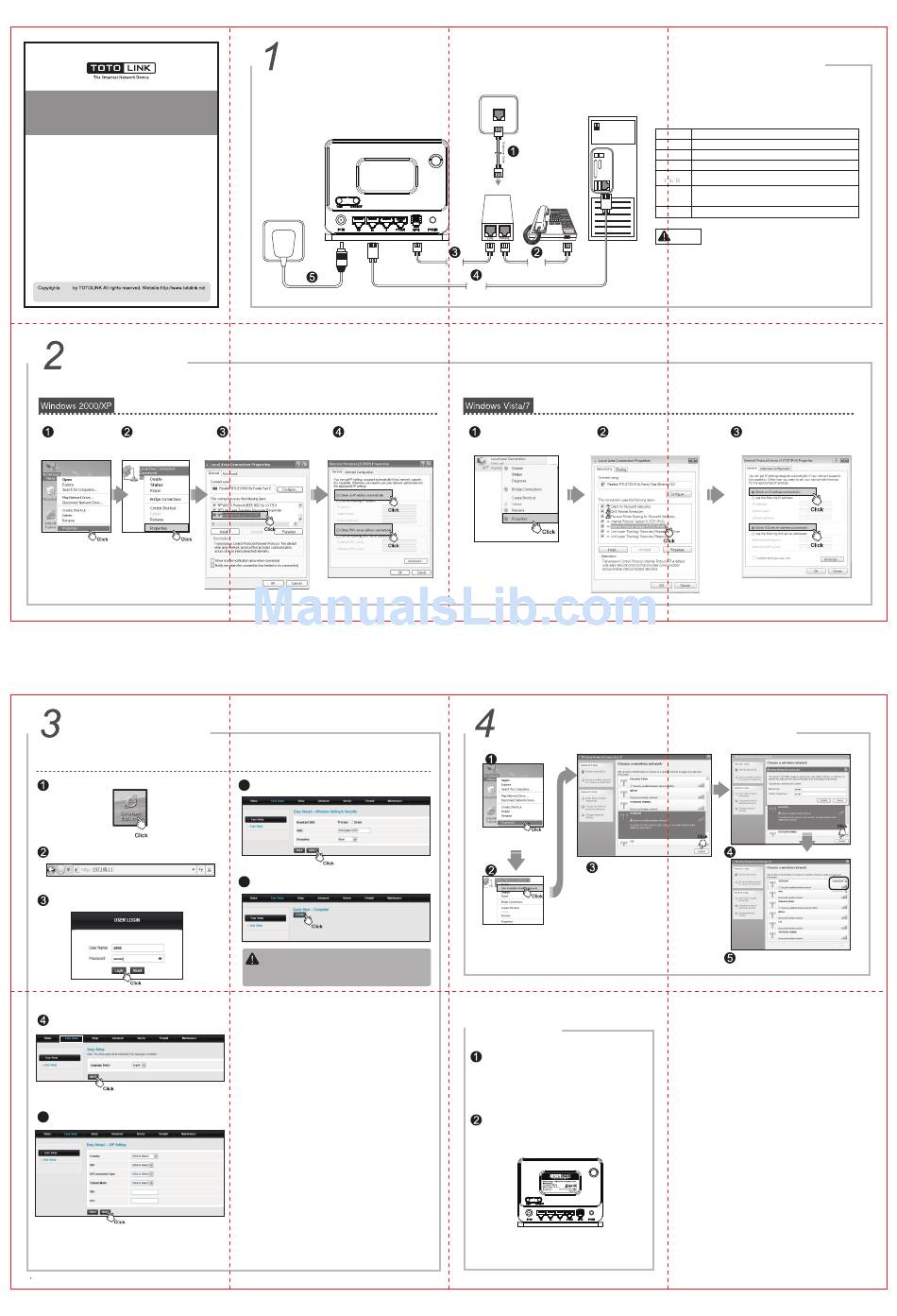

Toto Link ND150 Quick Installation Manual

Quick Installation Guide
Wireless N ADSL2+ Modem Router
Suitable for: ND150,ND300
V.14.10
2015
Information in this document is subject to change without prior notice.
Set Up PC
For Windows 2000 or Windows XP Operating System, please comply with following steps to set up.
Right-click "My Network Right-click "Local Area
Places", click "Properties" Connection", click "Properties"
Set Up Router
Please set up the router following below steps.
Run the Web browser.
Type http://192.168.1.1 in the web browser, then press Enter.
Input the Username and Password, then click Login button
(The default Username and Password is admin).
Choose Easy Setup. Select the language according to your country
and click NEXT (The default language is English).
5 Fill in the related content based on the information provided
by your ISP, click Next.
For more information, please go to www.totolink.net

Hardware Installation

Power Adapter
Double-click "Internet Protocol Choose "Obtain an IP address
(TCP/IP)" automatically" and "Obtain DNS
server address automatically",
click "OK"; go back to previous
interface and click "OK"
6
Setup the wireless parameters, then click APPLY to save your settings.
7
Now, you have finished Easy Setup, click CLOSE.
NOTE:
After you set the Pre-Shared Key, please remember your SSID and
the Pre-Shared Key to connect with your wireless LAN.
The RJ11 port of this Modem Router can only connect to ADSL Filter. Please follow steps in below diagram in correct order.
PC
ADSL Splitter
Telephone Telephone
Cable Cable
Network
Cable
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network Double-click "Internet Protocol
and Internet— Network Connection", Version 4 (TCP/IPv4)"
right-click "Local Area Connection",
and choose "Properties".

Wireless Network Connection

Right-click "My Network
Places", click "Properties"
Confirm the wireless network SSID name,
choose one that you would like to connect,
then click "Connect"
Right-click "Wireless Network
Connection", and click "View
Available Wireless Networks"
5
FAQ
How to reset the router to default factory settings?
1.When the router is powered on, press the WPS/RST button for about 10s.
2.The router's CPU LED indicator keeps flashing, which means you have
reset your router to default settings successfully.
How to find the IP address and user name & password
on the device?
On the rear panel of the Router, there is IP address, User name and
password printed on the sticker. See below:
Ports and Buttons Description
DC IN This socket is used to connect the power adapter.
POWER This button is used to power on or off the ADSL Router.
ADSL This RJ11 ADSL port is used to connect to the ISP.
1 LAN/WAN This port is used to connect the router to the local PC/ Internet.
2/3/4 LAN
These ports are used to connect the router to local PC.
Press the button for more than 5 seconds, the router will restore factory settings.
WPS/RST For less than 5 seconds, the router will establish Wi-Fi protected settings(WPS)
automatically.
WiFi This button is used to power on/off the WiFi signal.
NOTE:
1. Please disconnect the power adapter and all cables during thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture-proof when storing,
transporting and running.
4. The power supply must reach the rated current and power.
5. Put the router in flat places.
Choose "Obtain an IP address automatically"
and "Obtain DNS server address automatically",
click "OK"; go back to previous interface and
click "OK"
Input the encrytion key and click "Connect"
Have connected wireless network, you can access
Internet through wireless mode.
