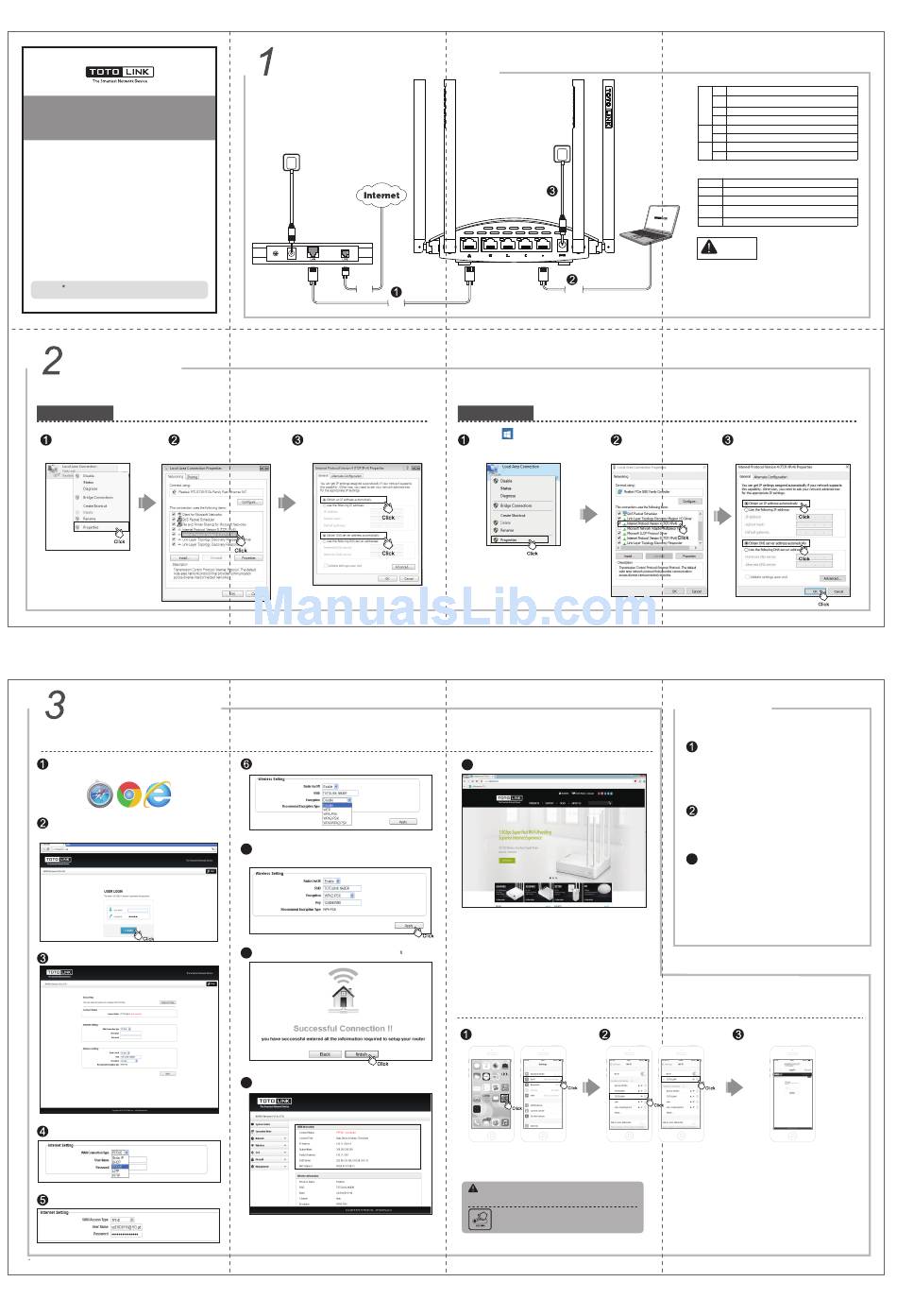

Quick Installation Guide

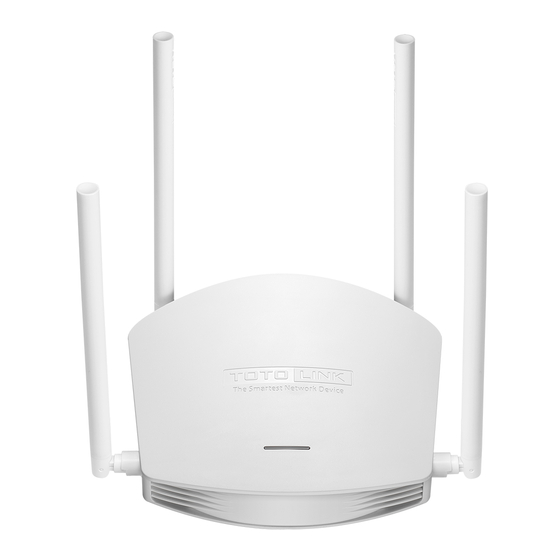

600Mbps Wireless N Router
Suitable for: N600R
V1.1602
Copyrights
TOTOLINK All rights reserved. Website: http://www.totolink.net
Information in this document is subject to change without prior notice.
Set Up PC
Windows Vista/7
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click Start— Control Panel— Network
Double-click Internet Protocol
and Internet— Network Connection,
Version 4 (TCP/IPv4).
right-click Local Area Connection,
and choose Properties.
Set Up Router
Please set up the router following below steps.
Run any Web browser.
The USER LOGIN page will pop up automatically. Enter admin for both
User Name and Password, click LOGIN. (The auto pop-up page only for
first connection, future Login please enter "192.168.0.1" in address bar)
admin
Now you can see the Easy Setup interface.
Choose the WAN Connection Type and enter the parameters
provided by your Internet Service Provider.
Here we take PPPoE as example. You are required to enter the User
Name and Password.
For more information, please go to www.totolink.net
Hardware Installation
Wall Socket
ADSL Modem
Telephone
Cable
Network
Cable
Choose Obtain an IP address automatically
and Obtain DNS server address automatically,
click OK; And then click OK.
Wireless Settings, you can change or retain your SSID (wireless network name).
7
Choose the encryption type. The WPA2-PSK is recommended, then type
in your password ( password length more than 8 characters).Then click
Apply to save the Settings.
8
Wait for a while, Internet connected successfully! Please click nish.
Now the router's Status interface turns up, it shows connected type
9
and IP address & DNS you get.
If you use ADSL Modem to access the Internet, please follow below steps. For houses that there is only one
Ethernet cable from the wall, please plug the Ethernet cable to the router's WAN port directly.
Wall Socket
Router
Network
Cable
Windows 10
For Windows 10 Operating System, please comply with following steps to set up.
Click Start(
)---All apps---Windows System
Double-click Internet Protocol
---Control Panel---Network and Sharing Center
Version 4 (TCP/IPv4).
---Change adapter setting, right-click Local Area
Connection, and choose Properties.
10
Try any website to test the Internet. Here we type in www.totolink.net.
Auto Pop-up Setting page for First Wi-Fi Devices Connection
Select TOTOLINK N600R, no password
Click Settings
→
Wi-Fi.
required by default.
N600R
Note: This function is only suitable for iPhone and a few Android smart phones. If the auto pop-up page not turns up on your phone, please use PC to set up your router.
NOTE:
After you set the Key, please remember your SSID and the Key to connect with
your wireless LAN.
WPS: press for about 1~3 seconds, the system LED indicator keep solid
light, it means WPS working;
RST: press for about 5~8 seconds, all LEDs blinks quickly, the device will
restore to factory default settings.
LED Indicators
Red
The router is working under normal power.
The Turbo switch is enabled and the router is working
Green
under middle power.
Status
Blink
The router is working normally or resetting.
Power is off.
Off
On
The WAN port is connected, the Internet is available.
WAN
Off
The WAN port is not connected, the Internet is unavailable.
On
There is device connected to LAN port 1/2/3/4.
LAN
No device connected to LAN port 1/2/3/4.
Off
Ports and Buttons Description
Connect with the power adapter
DC IN
Connect to ADSL modem or Internet Cable
WAN
Connect to PC or Laptop
LAN
Press for 1s, WPS enabled; press for more than 5s, Reset
RST/WPS
function enabled.
Improve the router's working power, extend Wi-Fi coverage.
Turbo
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture-proof
when storing, transporting and running.
4. The power adapter must be original or approved by TOTOLINK.
5. Put the router in flat places.
Choose Obtain an IP address automatically
and Obtain DNS server address automatically,
click OK; And then click OK.
4
FAQ
How to reset the router to default settings?
1. Please make sure your router's power is on regularly, then press the
RST/WPS button for about 5~8s.
2. Loosen the button until your router's LED lights all flashing, then you
have reset your router to default settings.
What can I do if I forget the router's Web Login page User
Name and Password?
Please reset your router to default settings firstly, the default IP address is
192.168.0.1, both default User Name and Password are admin .
3
How Turbo switch improve the router's wireless
performance?
By default, the Turbo switch is off. After you slide the Turbo switch to on,
the router's output power will be increased by about 6dBm theoretically,
which means your Wi-Fi signal will be improved and the Wi-Fi coverage
will be extended (depending on the environment). But the radiation will
be enhanced as well. So if there is any pregnant women or infants at
home, we recommend you not enable Turbo switch.
When connected, the Web page of TOTOLINK
N600R will pop up automatically.
N600R
N600R
