T10 Mobile Setup Guide – Dynamic IP

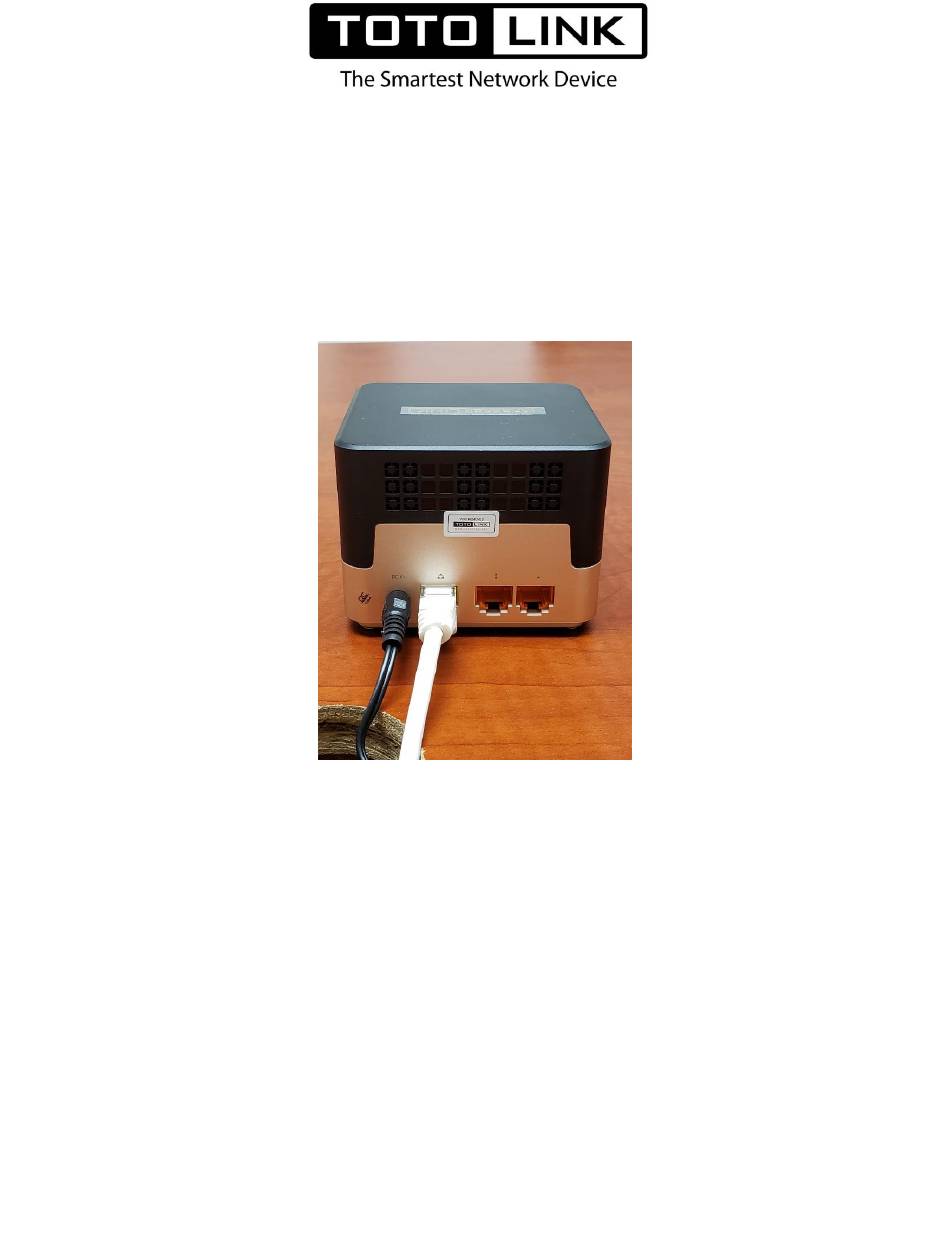

1. Connect one unit to a power source and connect an ethernet cable from the modem or
router to it via the WAN port. The unit will display a solid green color which indicates that
the unit is booting up. Once the indicator has changed color or is blinking green, it has
finished booting. This unit will be referred to as the master in this guide.

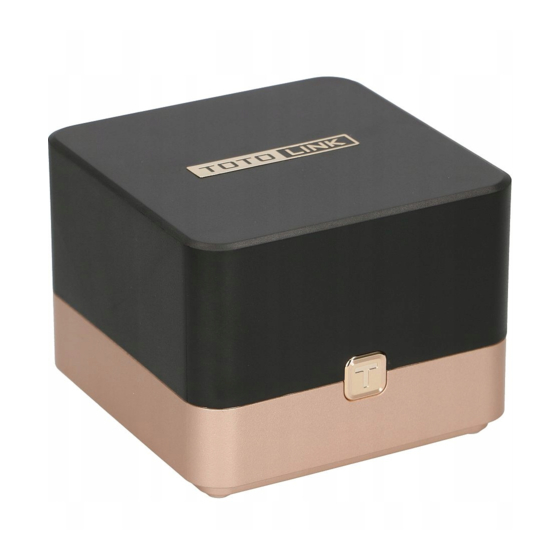

2. Reset the unit by pressing the T button on the front panel for 7-10 seconds. The light
indicator should blink red rapidly to indicate a reset has been initiated. Once the indicator is
blinking green, it has been reset.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toto Link T10
Summary of Contents for Toto Link T10
- Page 1 T10 Mobile Setup Guide – Dynamic IP 1. Connect one unit to a power source and connect an ethernet cable from the modem or router to it via the WAN port. The unit will display a solid green color which indicates that the unit is booting up.
- Page 2 3. On your mobile device, connect to the unit by finding its SSID. The units SSID is labeled on the bottom of the unit. Connect to the regular 2G that does not include the 5G in the name. For this example, I chose “TOTOLINK_F398A4”...
- Page 3 4. Open up the browser on your mobile device that you have used to connect to the SSID of the unit and go to 192.168.0.1. Some customers have reported that 192.168.1.1 have worked for them. You should see the screen below.
- Page 4 5. Enter the default login information which is admin/admin. User name is admin and the password is admin. After logging in you should see the screen below.
- Page 5 6. Click “Quick Setup” and it should bring you to the screen below. Make sure the “Dynamic IP” tab is selected. Then click “Next”.
- Page 6 7. The next screen is show below. Enter your new SSIDs that you want to broadcast for your 2G and 5G networks. For this example, I have labeled mine “TOTOLINK_T10_Test”.
- Page 7 8. Click Finish and it should bring you to the next screen as shown below. After about 30 seconds it should show that the setup was successful along with your SSIDs and credentials. You might want to screenshot this and save it for your records.
- Page 8 9. You will be able to see the new SSID you have created as shown below.
- Page 9 10. Now connect the other two units to a power source and wait for them to boot up. It is preferred that this is done in close proximity to the master. These units will be referred to as the satellites. Reset the satellites by pressing the T button for 7-10 seconds until the indicator flashes red rapidly.
- Page 10 11. Press the T button on the master for 3 seconds until the indicator flashes orange and red interchangeably. The satellites will also be flashing orange and red during this syncing phase. Wait 1 to 2 minutes for it to sync. Once the sync has been completed, the satellites’ indicators will stay solid green while the master will be blinking green.
