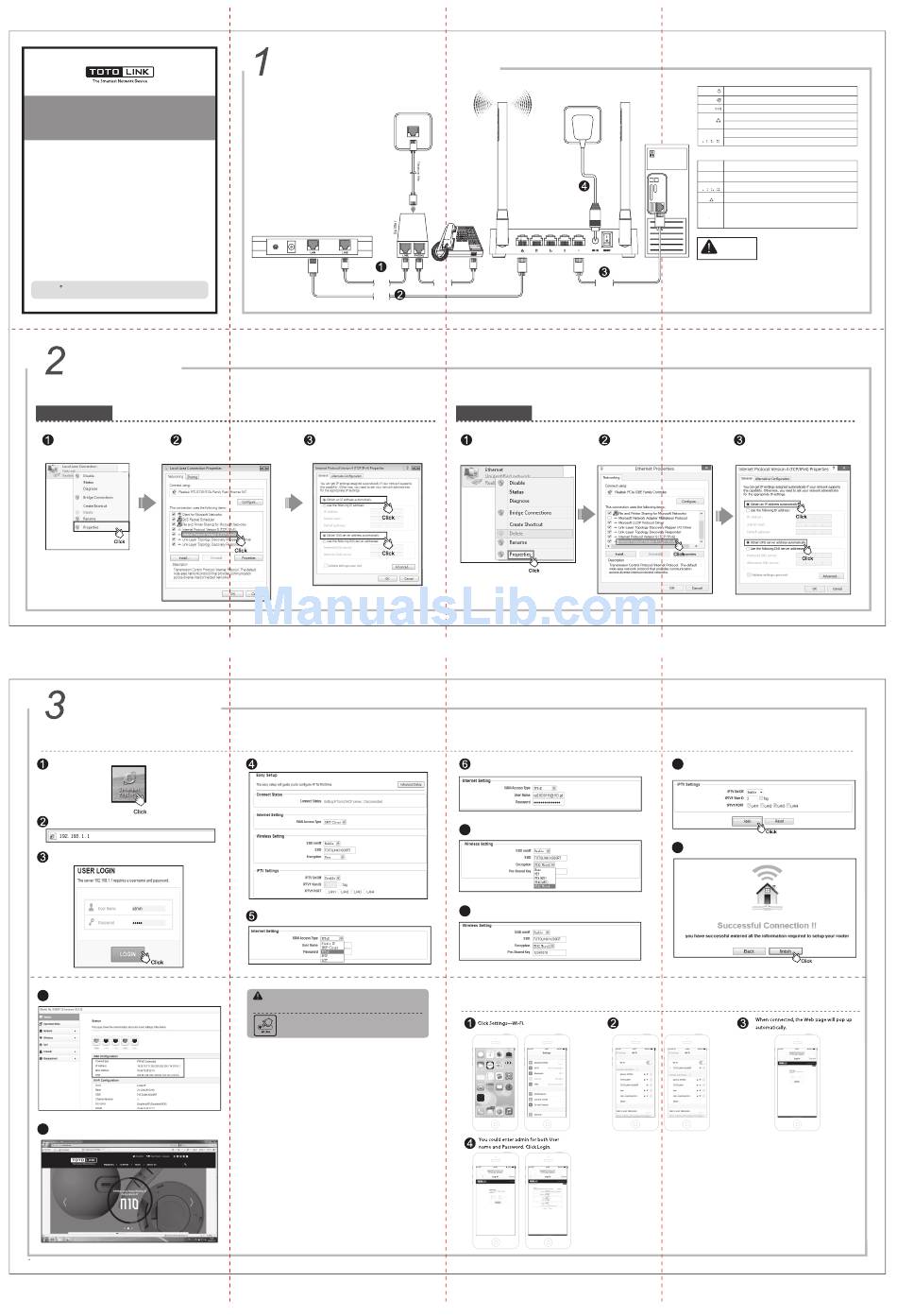

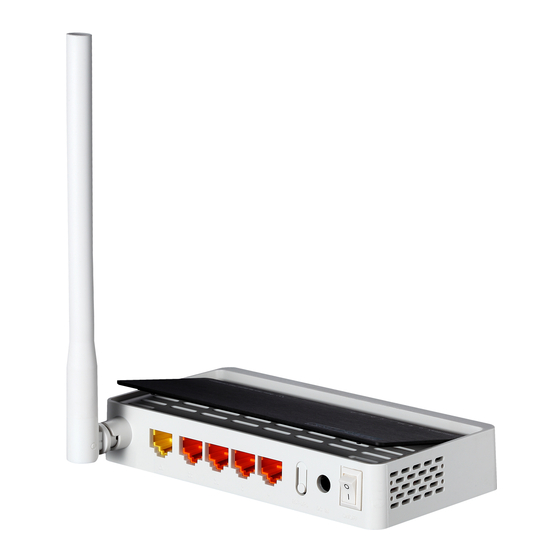

Toto Link N150RT Quick Installation Manual

Quick Installation Guide
Wireless N Broadband Router
Suitable for: N150RT, N300RT, N151RT, N301RT,
N150RH, N300RH, N302R Plus
V3.1507
Copyrights 2015 by TOTOLINK All rights reserved. Website: http://www.totolink.net
Information in this document is subject to change without prior notice.
Set Up PC
Windows Vista/7
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network Double-click "Internet Protocol
and Internet— Network Connection", Version 4 (TCP/IPv4)"
right-click "Local Area Connection",
and choose "Properties".
Set Up Router
Please set up the router following below steps.
Run the Web browser.
Type 192.168.1.1 in the web browser, then press Enter key.
Enter User Name and Password (the default User Name and Password
are "admin"), then click LOGIN or press Enter key.
Now the router's Status interface turns up, it shows connected type
11
and IP address & DNS you get.
12
Try any website to test the Internet. Here we type in www.totolink.net.
For more information, please go to www.totolink.net

Hardware Installation

ADSL Modem
Telephone
Wire
Network
Cable
Choose "Obtain an IP address automatically"
and "Obtain DNS server address automatically",
click "OK";And then click"OK".
Now you have logged in the Easy Setup interface.
Choose the WAN connection type and enter the parameters provided
by your ISP.
NOTE:
After you set the Pre-Shared Key, please remember your SSID and the
Pre-Shared Key to connect with your wireless LAN.
Press for about 2~3 seconds, the system LED indicator keep solid light,
it means WPS working, while press for about 10 seconds, all LEDs blinks
quickly, the device will restore to factory default settings.
Wall Socket
ROUTER
Telephone
Network
Wire Cable
Windows 8
For Windows 8 Operating System, please comply with following steps to set up.
Click "Start—Control Panel—Network and
Sharing Center—Change adapter setting",
right-click "Ethernet", and choose "Properties".
Here we take PPPoE as example. User Name and Password are required.
7
For Wireless Settings, you can setup SSID (network name) and encryption.
8 By default, no encryption selected. Here WPA2 Mixed is recommended
for you to protect your network, then type in your password.
Router Quick Setup by Wi-Fi Devices
LED Indicators
POWER Light on when router is power on.
Light is on when systems is working.
CPU
The indicator light is on when Wi-Fi is enabled.
WIFI
Light on when WAN port connected successfully.
WAN
Light blinking while transmitting or receiving data.
Light on when the LAN port successful connected.
1/2/3/4LAN
Computer
Light blinking while transmitting or receiving data.
Ports Description
DC IN Used for connecting the power adapter.
ON/OFF Used for power on or off the router.
1/2/3/4LAN
Used for connecting the router to local PC.
WAN
Used for connecting the router to the Internet.
Reset: Press the button for more than 5 seconds, the
Reset/WPS
router will restore factory settings.
RST WPS WPS: Press the button less than 5 seconds, enable the
router WPS function.
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture-proof
when storing, transporting and running.
4. The power supply must reach the rated current and power.
5. Put the router in flat places.
Double-click "Internet Protocol Version 4 Choose "Obtain an IP address automatically"
(TCP/IPv4) and "Obtain DNS server address automatically",
click "OK";And then click"OK".
9 On this page, you can also enable or disable IPTV. If enable this function,
please enter the VLAN ID and choose correct IPTV port. Then click Apply
to save the settings.
10
Wait for a while, Internet connected successfully! Please click finish.
Select your TOTOLINK model no., no password
required by default.
