Zavio B6110 Quick Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Please follow the installation steps below to set up your F731E IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Use the software CD to install Intelligent IP Installer.
Change lighting environment setting. See P.5
Access to Internet via Static IP, Dynamic IP or both. See P.8
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com
Package Contents
Camera
Lens
Quick Installation Guide
Software CD
Component Packs
Adaptor(optional)
Physical overview
Infrared LEDs
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 10
seconds to set the settings back to factory default.
Zavio B6110 Quick Installation Guide

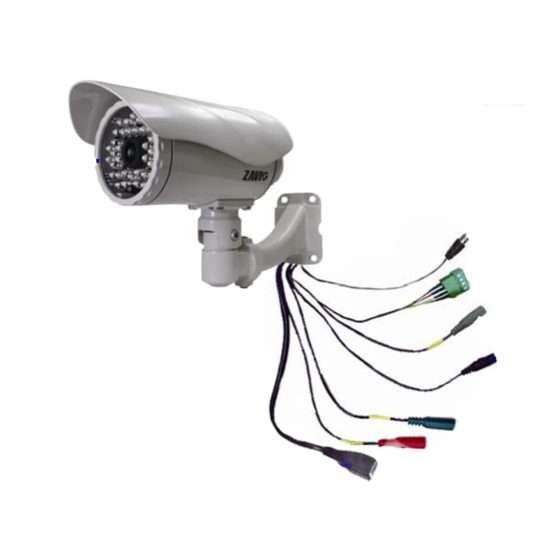

B6110 Outdoor 35M IR IP Camera
Megapixel board lens 4.3mm, F1.8
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Two Packs of screws
12V DC, max 6W
Network
See P.3
1
Video Out
I/O Connector
Alarm Out
Reset button
12V Power
Audio Out
Audio In
Alarm In

Advertisement

loading
Need help?

Need help?

Do you have a question about the B6110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zavio B6110

Summary of Contents for Zavio B6110

  • Page 1: Table Of Contents

    For more information, please check the User Manual available in the Software CD or you can download the latest software from http://www.zavio.com Package Contents Camera B6110 Outdoor 35M IR IP Camera Lens Megapixel board lens 4.3mm, F1.8 Quick Installation Guide Brief product information and quick installation...

  • Page 2: Install The Hardware And Connect All Cables. See

    Install the hardware and connect all cables a. Wall mounting 1. Fix the cover to the camera with two supplied screws. (Type 1 screws) 2. Fix the camera to the bracket with four supplied screws. (Type 2 screws) 3. Fix the camera and bracket to the wall using two screw and plastic anchors.

  • Page 3: Microsoft Os

    Use the software CD to install Intelligent IP Installer Microsoft OS: Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1.
  • Page 4 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.

  • Page 5: Mac Os Using Safari Browser. See

    Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.

  • Page 6: Change The Web Interface Into Your Preferred Language. See

    Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a.
  • Page 7 7. Use your existing account to login to MSN Messenger. 8. Add the new MSN Messenger account (e.g.: Camera at home) to your contact list. 9. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 10.
  • Page 8 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
  • Page 9 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.

  • Page 10: Application Of Ip Camera. See

    Application of IP Camera...
