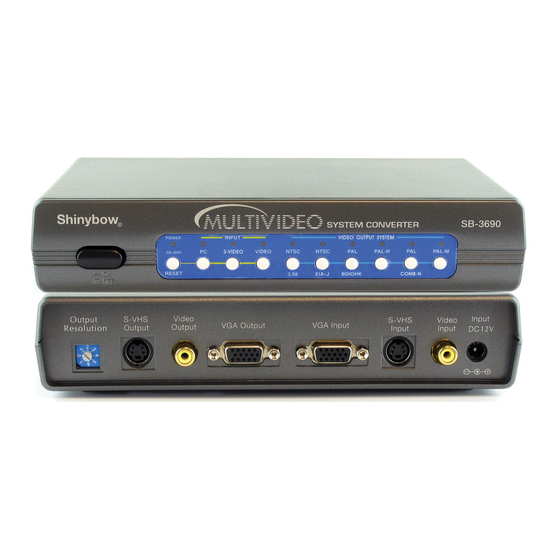

Shinybow USA SB-3690 User Manual

Multivideo system converter

Download this manual

SB-3690 MULTIVIDEO SYSTEM CONVERTER

R-R, S-S VGA VGA cables

Power supply adaptor 12VDC

Operation Manual

To reduce the risk of electric shock, do not expose this product to

rain or moisture. Indoor use only.

This equipment should be near the AC outlet and not extended beyond

the length of the included power cord.

Using only the included power supply. Use of any other power

supply could impair performance or damage the equipment.

Keep item away from wet locations such as bathtubs, sinks,

laundries and swimming pools

Do not use cleaning fluid or aerosols, which could enter the unit and

cause damage.

his is not a toy so don't let your family dog chew on it.

MULTIVIDEO SYSTEM CONVERTER

NTSC/PAL/VGA > PAL/NTSC/VGA

Thank you for purchasing the SB-3690 MultiVideo system converter. You will find this unit

easy to install and highly reliable but it is essential that you read this manual throughly

before attempting to use converter.

www.shinybowusa.com

USER GUIDE

DIGITAL

Model : SB-3690

Shinybow

Part No.: ENCL-00-3690

Table of Contents

Page 1: User Guide
Do not use cleaning fluid or aerosols, which could enter the unit and cause damage. Thank you for purchasing the SB-3690 MultiVideo system converter. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly his is not a toy so don’t let your family dog chew on it.
Page 2 Table of Contents 1.Introduction 2.Features Specifications 4.Operation Controls and Function Connection and Installation Package Contents Safety information...
Page 3: Connection And Installation
Introduction Connection and Installation The SB-3690 Multi-video system converter is designed to convert TV Video systems or computer VGA signal with Digital Signal Processing Select Input Sources : Power ON/OFF Select Video Output System : Video, S-Video, PC * NTSC (3.58)
Page 4: Rear Panel
4-1 Front Panel 1.Power: press the button to turn ON/OFF. The LED will illuminate 1.Output resolutions adjustment: There is a DIP SW on rear of the SB-3690 which when the power is turned on. allows you to change the output resolution 2.Input Selection Buttons: Press each of buttons (PC/S-VIDEO/VIDEO)
