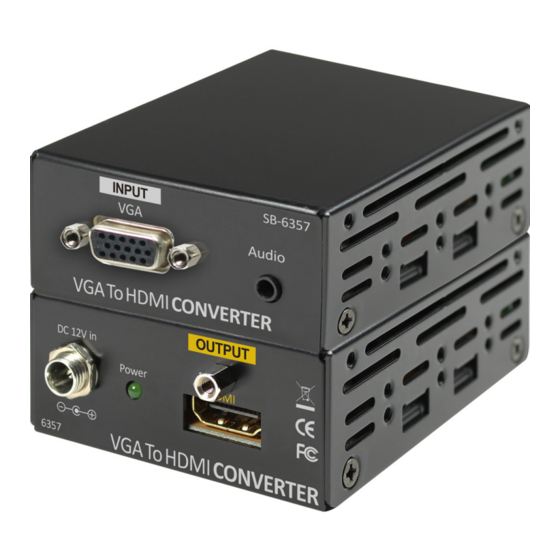

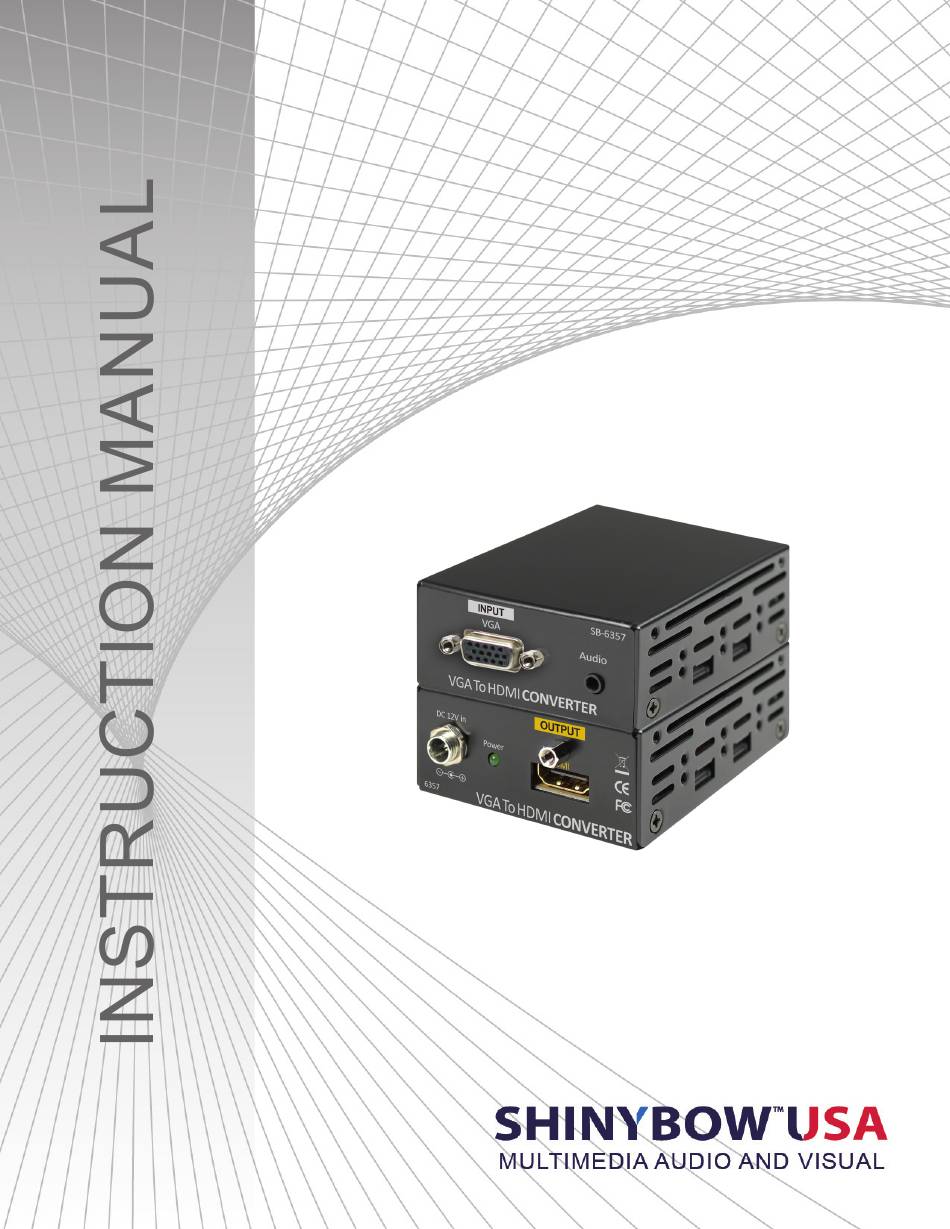

- Page 1 SB-6357 VGA To HDMI CONVERTER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts The SB-6357 is a high performance digital video converter inside the unit. supporting (1) VGA and Stereo Audio Input and (1) HDMI output. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Analog VGA to HDMI Digital Audio Video Converter • Inputs: VGA+Stereo Audio • Outputs: HDMI (Digital Video/Audio) • Automatically detects and passes through the HDMI to VGA signal • Support High VGA resolution Inputs and Outputs: VGA 640x480, SVGA 800x600, XGA 1024x768, WUXGA 1920x1200 (Maximum) •... -
Page 5: Front & Back Panels
FRONT & BACK PANEL - INPUTS/OUTPUTS FRONT PANEL BACK PANEL 1. VGA INPUT: VGA (RGBHV): Connects a VGA (RGBHV) signal source to the VGA HD-15P female socket. connector. Note: With D-SUB-HD15P female socket. 2. AUDIO INPUT: STEREO AUDIO (AR/AL): Connects the stereo audio output port of your source Via OD3.5mm ear audio device to the stereo audio (AR/AL) inputs. -
Page 6: Vga Input & Hdmi Output Resolutions
VGA INPUT & HDMI OUTPUT RESOLUTION TABLE / TYPICAL APPLICATION VGA INPUT TO HDMI OUTPUT RESOLUTIONS VGA RESOLUTIONS TO HDMI 640x480@60Hz 640x480@75Hz 640x480@85Hz 800x600@60Hz 800x600@70Hz 800x600@75Hz 800x600@85Hz 1024x768@60Hz 1024x768@70Hz 1024x768@75Hz 1024x768@85Hz 1152x864@75Hz 1280x768@60Hz 1280x768@75Hz 1280x900@60Hz 1280x1024@60Hz 1280x1024@75Hz 1600x1200@60Hz 1680x1050@60Hz 1360x768@60Hz NOTEBOOK INPUT TO 4K HDMI MONITOR 800x600@60Hz 1024x768@75Hz... - Page 7 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 8 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
