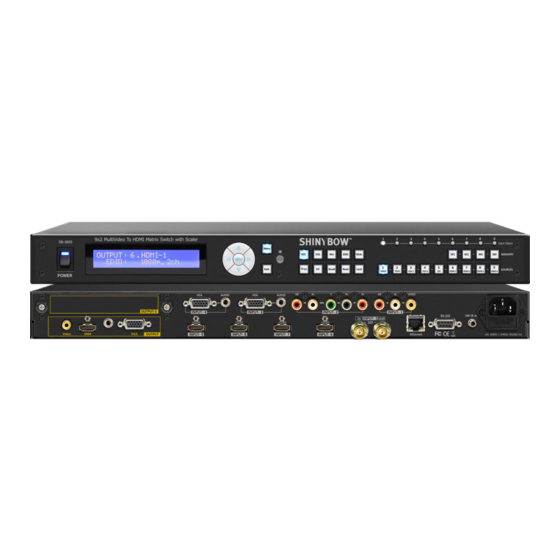

Shinybow USA SB-3855 Instruction Manual

9x2 multivideo to hdmi/vga/video selector switch scaler
Hide thumbs

Advertisement

Quick Links

Download this manual
SB-3855
9x2 MultiVideo To HDMI/VGA/Video Selector Switch Scaler
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement
screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing
the HDMI Locking Post replacement screws will void your warranty.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB-3855 and is the answer not in the manual?

Questions and answers

Related Manuals for Shinybow USA SB-3855

Summary of Contents for Shinybow USA SB-3855

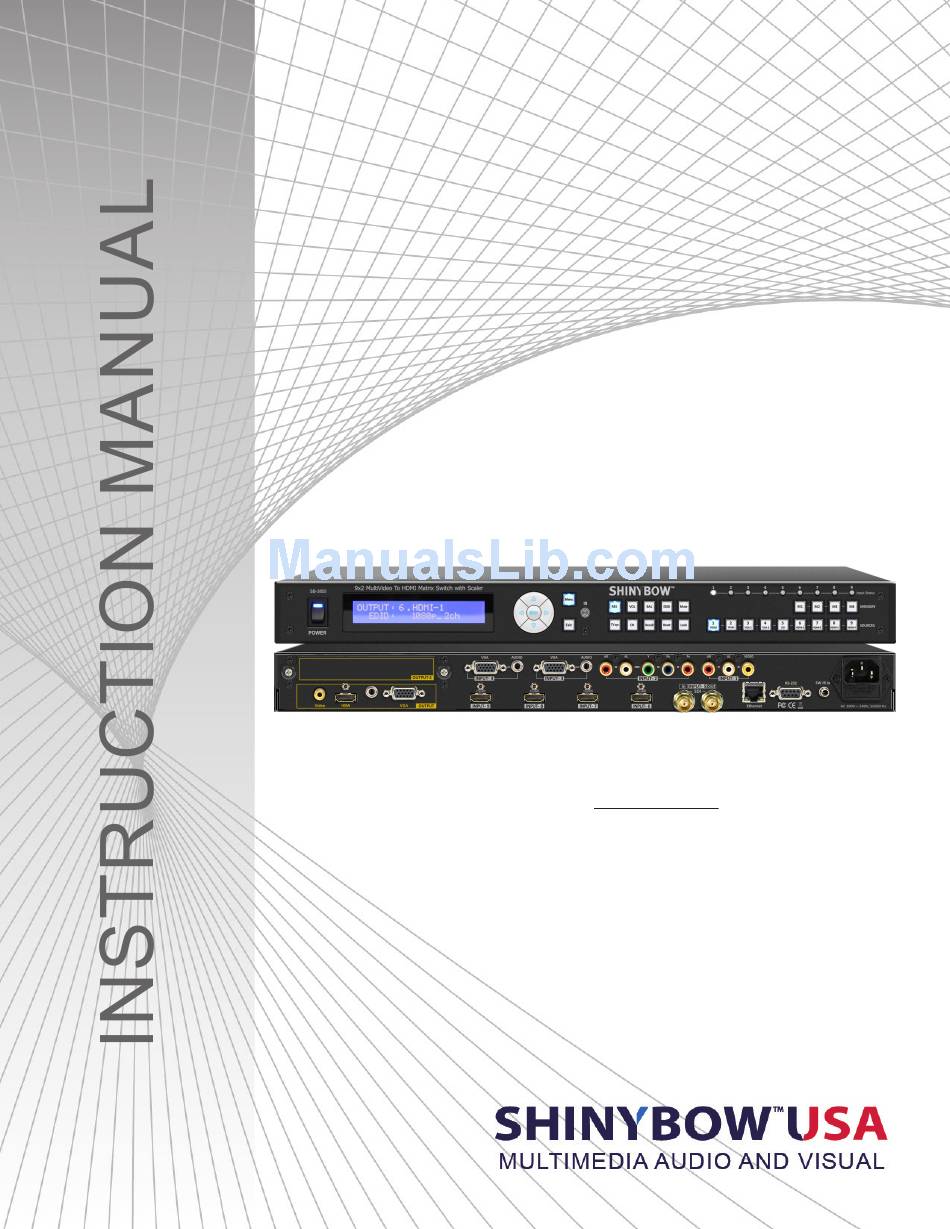

  • Page 1 SB-3855 9x2 MultiVideo To HDMI/VGA/Video Selector Switch Scaler IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing...

  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
  • Page 3 MultiVideo To HDMI-VGA-Video Selector Switch Scaler Series Thank you for purchasing the SB-3855 9x2 MultiVideo To HDMI/VGA/VIDEO Selector Switch Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the selector switcher.
  • Page 4 • 6ft 18 AWG Universal Power Cord (NEMA 5-15P to IEC-320-C13) PACKAGE CONTENTS Check that you have the following components; • SB-3855 Selector Switch Scaler • RS-232 V3855.1.0/Ethernet V3855.1.0 Protocol Instructions • Master wireless IR Remote Control (SW-3855) • 19 inch Ear mount bracket (Part # 1U-440L) •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of Switcher: 9x2 MultiVideo to HDMI-VGA-Video Selector Scaler Switch • Function Modes: Selector, Switch and Scaler • HDMI Supported: HDMI 1080p@60Hz, H36-bit Deep color • HDCP / HDMI Supported: HDCP 1.2 Compliant, HDMI 1.3 version • Video Bandwidth: Double Data Rates: 165Mhz, Total 4.95Gbps bandwidth •...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FUNCTION KEY - RESOLUTION 9. FUNCTION KEY: RESOLUTION: OUTPUT-1 & OUTPUT-2 Resolutions setup (The LCM will not show OUTPUT-2 on the display when Modular Output-2 port is removed.) To Select the HDMI Resolution option on a specific Output, perform the follow steps: 1.
  • Page 8 FUNCTION KEY - VOL / BAL 10. FUNCTION KEY: VOL / BAL: Audio VOLUME/BALANCE mode to control Audio Volume and Balance. The LCM will not show OUTPUT-2 on the display when the modular Output-2 port is removed. To setup the VOLUME and BALANCE function mode, perform the following steps: To adjust the volume and balance on any Output 1.
  • Page 9 FUNCTION KEY - EDID 11. FUNCTION KEY: EDID: OUTPUT-1 & OUTPUT-2 EDID Learning mode M2 setup. The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed. To enable the Learning EDID mode option on a specific Output, perform the following steps: 1.
  • Page 10 FUNCTION KEY - RESET 12. FUNCTION KEY: RESET: RETURN TO FACTORY default. The LCM display will show the SYSTEM RESET status. The system will return to Factory default. To setup the Switcher for System RESET command follow these steps: 1. Press the RESET button and hold for 3 seconds. The LCM display will show the current RESET mode embedded status. 2.
  • Page 11 FUNCTION KEY - MEMORY / RECALL 13., 14., 15., 16. FUNCTION KEY: M1, M2, M3, M4 (MEMORY) MEMORY mode to memory Destination-1 or 2 when in SWITCH status. The system will show stored presets up to a total of (4) in the M1, M2, M3, M4 buttons. Presets are stored in local memory using the memory keys M1 thru M4 as the memory preset locations.
  • Page 12 FUNCTION KEY - MUTE / EXIT / LOCK / MENU 18. FUNCTION KEY: MUTE: Audio MUTE mode to mute audio. The LCM will no show OUTPUT-2 on the display when Modular Output-2 port be removed.Press MUTE to mute audio for the output. The display will show “M“ and the channel button will illuminate for the selected output.
  • Page 13 FUNCTION KEY - MENU (SETUP AUDIO EQUALIZER) 22. FUNCTION KEY: MENU (SETUP AUDIO EQUALIZER): AUDIO EQUALIZER mode to control Audio Equalizer. The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed. Presets are stored in local Audio EQ using the MENU button. To Enable the Learning EDID mode options on a specific Output, perform the follow steps: 1.
  • Page 14 FUNCTION KEY - MENU (SETUP TV VIDEO SYSTEM STANDARD) 23. FUNCTION KEY: MENU (SETUP TV VIDEO SYSTEM STANDARD): TV VIDEO SYSTEM mode to control the TV output system standard. The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed.
  • Page 15 FUNCTION KEY - MENU (SETUP IP CHANNEL) 23. FUNCTION KEY: MENU (SETUP IP CHANNEL): IP CHANNEL mode to setup the IP Transmitter output. The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed. To select the IP CHANNEL option on a specific Output, perform the following steps: 1.
  • Page 16 BACK PANEL BACK PANEL 1. POWER INLET: POWER SOCKET : The switcher is fitted with an AC power plug input Connector Type : IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 17 OPTIONAL MODULAR OUTPUT CARDS OPTIONAL MODULAR TABLE : 3855 MODULAR: SCALER OUTPUT 2 MODEL: T-HDMI-A: HDMI BOOSTER WITH AUDIO OUTPUT (1) HDMI OUT, (1) STEREO AUDIO & (1) SPDIF OUT MODEL: T-HDBT-100: HDMI OVER HDBASET OUTPUT ™ (1) HDBT OUT (100M), (1) IR IN/OUT & RS-232 MODEL: T-HDBT-100P: HDMI OVER HDBASET OUTPUT W/ POH ™...
  • Page 18 BACK PANEL BACK PANEL 6. VIDEO / AUDIO INPUT: Video (Composite) RCA female connector. Connects a Video/Audio (Composite video) Audio (Stereo Audio) (2) RCA female connector. signal source to the Composite Video connector. NOTE: With (3) RCA female connectors. 7. COMPONENT VIDEO/AUDIO INPUT: Component Video (YPBPR) RCA connector.
  • Page 19 REMOTE CONTROL & REMOTE PROTOCOL COMMANDS BEFORE MAKING ANY CONNECTIONS OBSERVE THE FOLLOWING: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 20 IR DATA CODE LIST IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 6699 POWER ON: AUDIO: 6699 A15E POWER OFF: 6699 A25D 1-VOLUME+: 6699 02FD MUTE: 6699 9E61 2-VOLUME+: 6699 03FC ZOOM: 6699 04FB 6699 D42B...
  • Page 21 RS-232 & ETHERNET SERIAL INTERFACE RS-232 & ETHERNET SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V.3855.1.0 For a complete list of commands, please reference external document extended Protocol Instruction Manual. Example of the command string to select Inputs: FUNCTION COMMAND COMMAND VARIABLES...

  • Page 22: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using the IR External, RS-232 series interface or Ethernet place the command to control the SB-3855 switcher via a PC or the IR external receiver (model SB-100) to transmit the SB-3855’s IR remote signal. NOTE: 1.
  • Page 23 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using (9) A/V source inputs and scaling up to (2) HD resolution matrix outputs. NOTE: (9) Inputs (1) Composite Video/Stereo Audio. (1) Component Video/Stereo Audio. (2) VGA/Stereo Audio. (1) SDI. (4) HDMI Full HD sources. Applications for (9) A/V sources inputs matrixed to (2) HD resolution outputs.
  • Page 24 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: OUTPUT-1: Using Composite Video, VGA, HDMI and Stereo Audio signals to connect to a HDTV. OUTPUT-2: Using the Optional Modular type HDMI, SPDIF and Stereo Audio signals to connect to a HDTV. OUTPUT-1 NOTE: 1.
  • Page 25 IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 26 INPUT & OUTPUT RESOLUTIONS HDMI INPUT RESOLUTIONS 480i 576i 720p 1080p 480p 576p 1080i All of the above HDMI Input Resolutions work with the following HDMI Output Resolutions. SVGA 480p 576p 720p 1080i 1080p 640x480 800x600 720x480 720x576 1080x720 1920x1080 1920x1080 VGA INPUT &...

  • Page 27: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
  • Page 28 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
