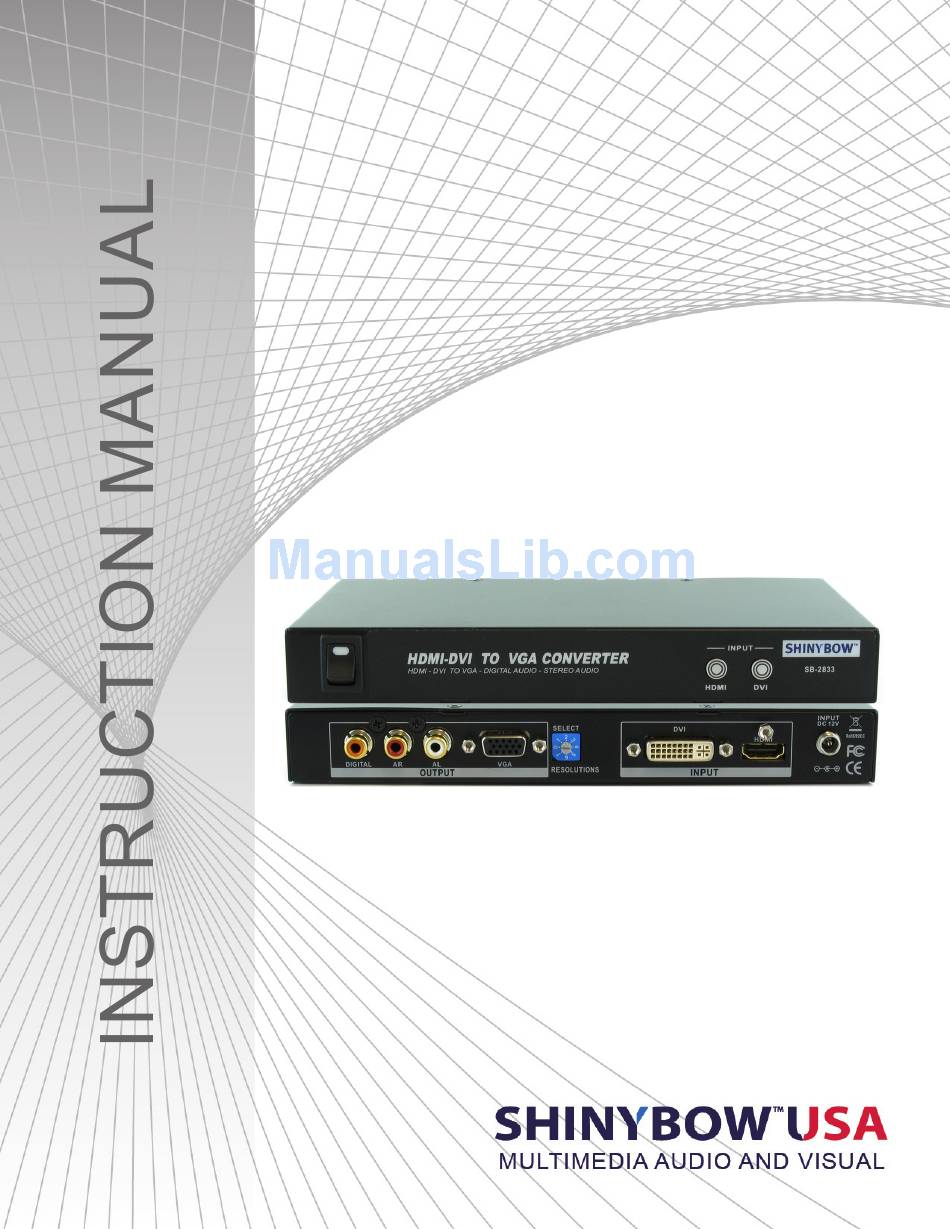

- Page 1 SB-2833 HDMI/DVI to VGA/Digital & Analog Audio/Video Converter...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS HDMI-DVI to Video Digital Converter Series Thank you for purchasing the SB-2833 HDMI/DVI to VGA/Digital/ST Audio/Video Converter. We highly recommend that you read this manual thoroughly before attempting to use this converter, so as to avoid any problems. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Inputs: 1x HDMI (Digital Video/Audio) & 1x DVI (Digital Video) • Outputs: 1x VGA + Stereo Audio & 1x Digital Audio (PCM) • Automatic HDMI & DVI 480p, 720p and 1080i/p input detection • HDMI & DVI input selection by push buttons on front panel •... -
Page 5: Typical Hookup And Operation

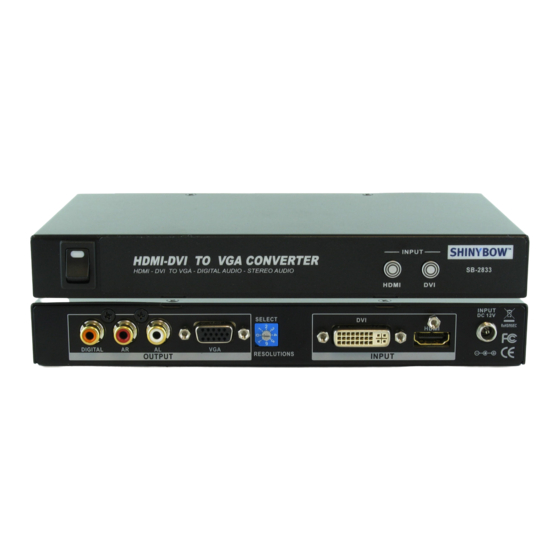

TYPICAL HOOKUP AND OPERATION SB-2833 FRONT: • Power switch with power on indicator light • Input selection switches: HDMI or DVI (only one can be selected at a time) BACK: • 12VDC locking power connector @1250-2000mA • HDMI & DVI input connector •... -
Page 6: Installation Instructions
• Inputs can be connected to both the HDMI and DVI input connectors, as they will be selected by the switches on the front panel. This allows the SB-2833 to be used as a audio/video switch as well. Be sure that connectors are firmly seated. -
Page 7: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 8 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
