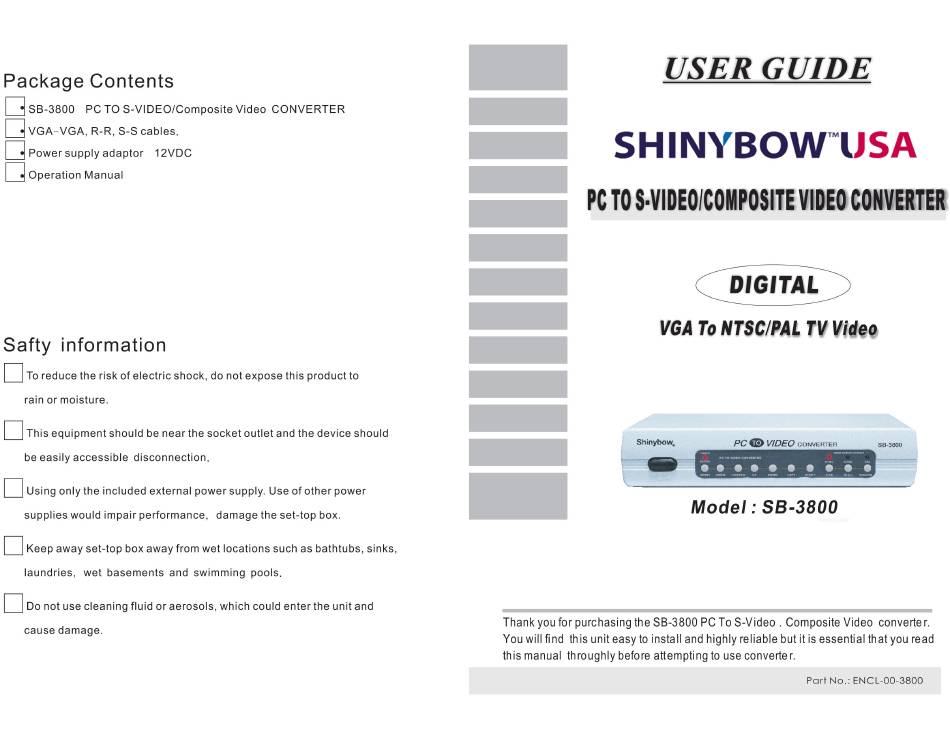

- Page 2 TV Video signals are Composite video or S-Video outputs, You can cor rect VGA input to NTSC/PAL TV displ ay. 6.Package Contents Also SB-3800 can range resol ution as VGA 640x48 0, SVGA800x60 0, XGA1024x768 , SXGA1280x102 4 7.Safety information...
- Page 3 Introduction Connection and Installation The SB-3800 PC To S-Video, Composite Video system converter is designed to convert computer VGA signal with Digital Signal Power ON/OFF Select Video Output System : Adjust Screen functions * NTSC (3.58) Processing (DSP) then output through S-Video or Composite Video * NTSC (EIA-J) * PAL (B.D.I.G.H.K)

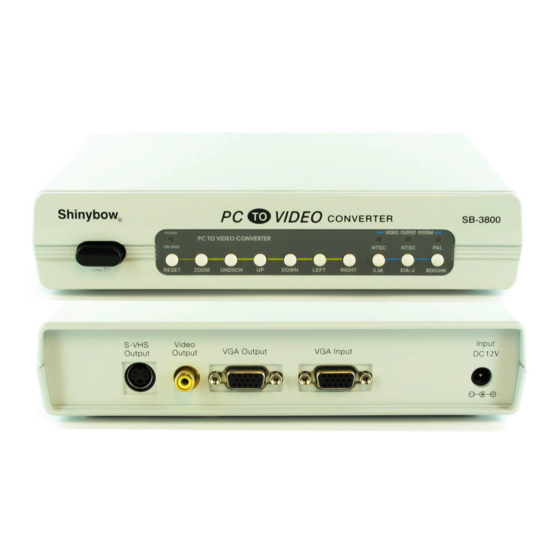

- Page 4 Operation and content 4-2 Rear Panel 4-1 Front Panel 1.Power: press the button to turn ON/OFF. The LED will illuminate 1.Support Video and SV output solutions: NTSC, NTSC-EIA-J, PAL(B,D,I,G,H,K) when the power is turned on. PAL-M, PAL-N, PAL-N(COMB-N) 2.Output selection Buttons: Press each of buttons (NTSC-M3.58,J/, 2.Support PC output solutions will by pass automatically.
