M ULT I MEDI A AU DIO A N D VI SU A L
HDMI/DVI > VGA Converter
HDMI/DVI to VGA/Digital/Audio
INSTRUCTION MANUAL
MODEL : SB-2833
High Resolution VGA Converter
HDMI-DVI to Video Digital Converter Series
Thank you for purchasing the SB-2833 HDMI/DVI to VGA/Digital/ST Audio/Video Converter. We highly recommend
that you read this manual thoroughly before attempting to use this converter, so as to avoid any problems.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-2833
Summary of Contents for Shinybow USA SB-2833
- Page 1 High Resolution VGA Converter HDMI-DVI to Video Digital Converter Series Thank you for purchasing the SB-2833 HDMI/DVI to VGA/Digital/ST Audio/Video Converter. We highly recommend that you read this manual thoroughly before attempting to use this converter, so as to avoid any problems.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. - Page 3 HD quality signals. It is useful for converting HDMI signals from High Resolution quality for HDMI to VGA monitors. VGA (RGBHV) Monitor with /Digital Audio (PCM) or/ Stereo Audio (R & L). The SB-2833 accepts HDMI or DVI inputs via HDMI or DVI connectors. It is designed to provide higher VGA resolution output quality than most similar devices, as the VGA output resolution can be set to be identical to the source HD input signals.
-
Page 4: Specifications

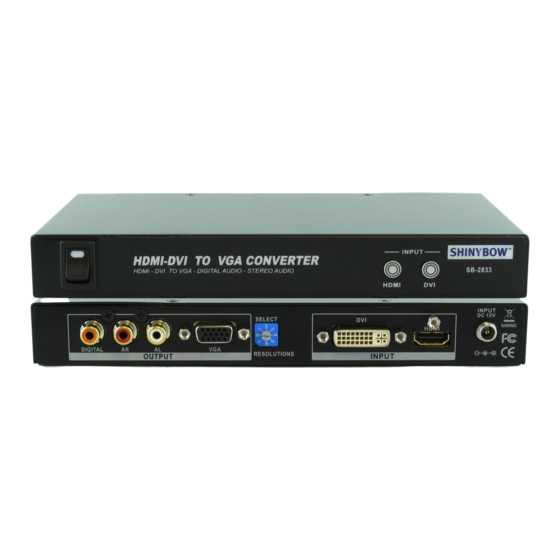

FEATURES & SPECIFICATIONS FEATURES • Inputs:1x HDMI (Digital Video/Audio) & 1x DVI (Digital Video) • Outputs:1x VGA + Stereo Audio & 1x Digital Audio (PCM) • Automatic HDMI & DVI 480p,720p and 1080i/p input detection • HDMI & DVI input selection by push buttons on front panel •... - Page 5 TYPICAL HOOKUP AND OPERATION SB-2833 Front: • Power switch with power on indicator light • Input selection switches: HDMI or DVI (only one can be selected at a time) Rear: • 12 VDC locking power connector @ 1250-2000 mA • HDMI input connector •...
-
Page 6: Installation Instructions
Inputs can be connected to both the HDMI and DVI input connectors, as they will be selected by the switches on the front panel. This allows the SB-2833 to be used as a audio/video switch as well. Be sure that connectors are fi rmly seated. -
Page 7: Limited Warranty
LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Please be sure to send in your warranty registration card promptly, as the warranty will not be active without registration. Should this product, in SHINYBOW Technology’s opinion, after inspection, prove defective within this warranty period, SHINYBOW Technology, at its option, will repair or replace this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. - Page 8 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
