Summary of Contents for Shinybow USA SB-1116

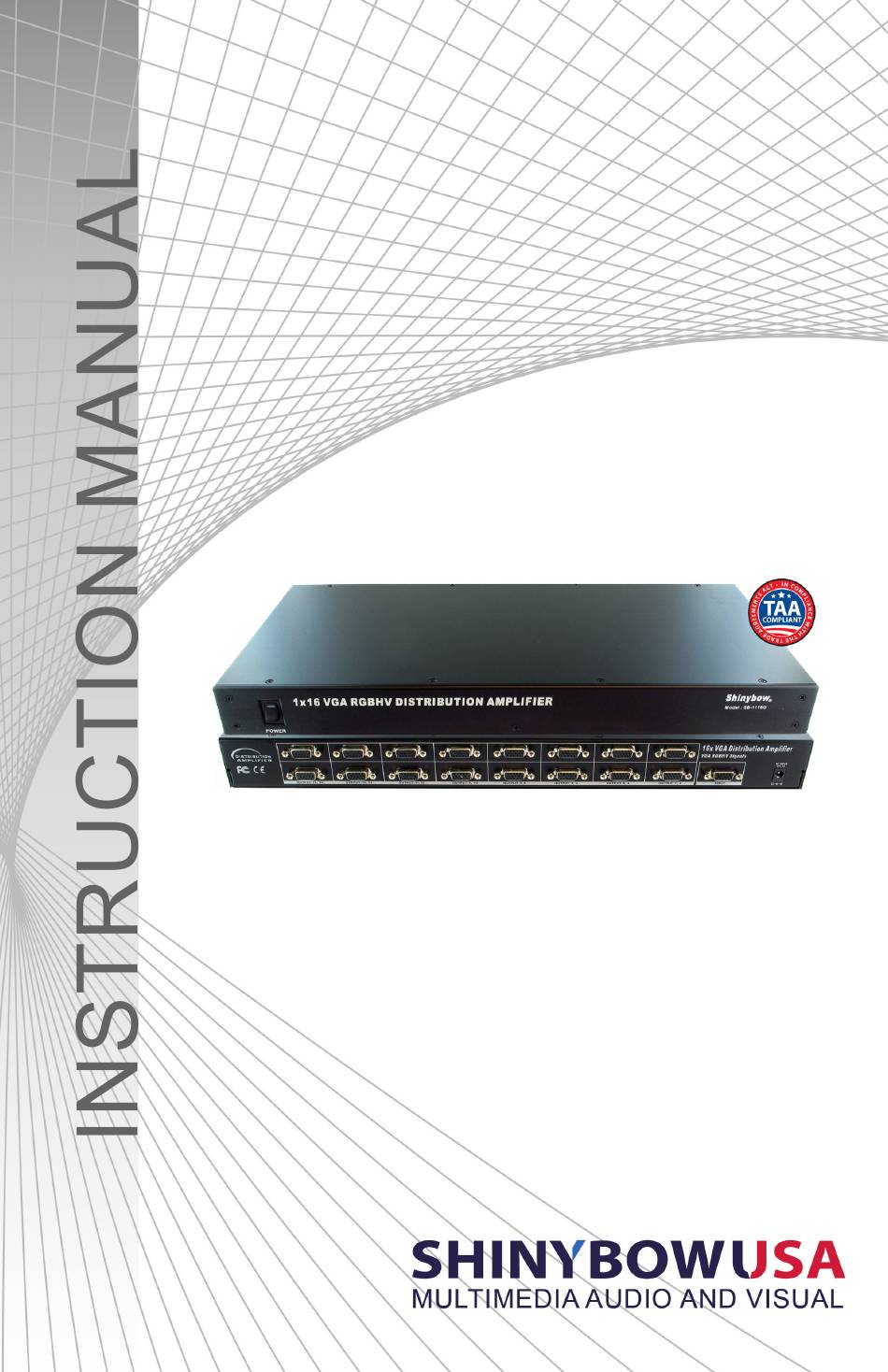

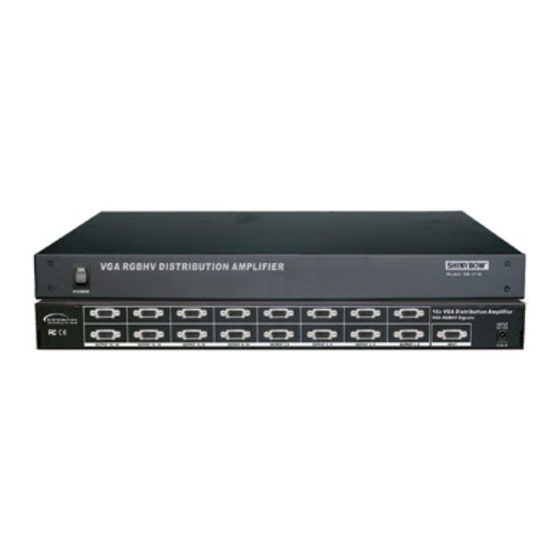

- Page 1 SB-1116 1x16 VGA (RGBHV) Amplifier Splitter...
-
Page 2: Safety Information
SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •... - Page 4 Signal quality is maintained over a wide bandwidth with worst-case distortion of -40dBc@250MHz (G=+10, 1Vpp). Input and output connectors are HD-15 female type. The SB-1116 is housed in a 19 inch rack mountable metal case, (1) RU high. All units are +12VDC powered, a power adaptor is included.
-
Page 5: Specifications
SPECIFICATIONS • Type of Amplifier: (1) Input to (16) Outputs VGA Distribution Amplifier • I/O Signals: RGBHV, RGBS, RGsB (RGB Level Range 0.5~2.0Vpp) • Video Bandwidth: • Large Signal: 440MHz • Small Signal: (-3dB) 1GHz • Slew Rate: 5500V/aS, 4VStep, G=+2 •... -
Page 6: Package Contents
FOR FCC 47 CFR / Part 15 Subpart B - FCC 47 CFR / Part 15 Subpart B - REPORT NUMBER: ET93S-12-050-02 ET93S-12-050-02 Model Number: SB-1116 Comment Number: SB-1116(G), SB-1112(G), SB-1110(G), SB-1108(G), SB-1106(G), SB-1104(G), SB-1102(G) Input: VGA (RGBHV), HD-15Pin Connector Output: VGA (RGBHV), HD-15Pin Connector... -
Page 7: Typical Hookup And Operation
TYPICAL HOOKUP AND OPERATION... -
Page 8: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc. at the return address set forth on the product’s packing label at your expense.
