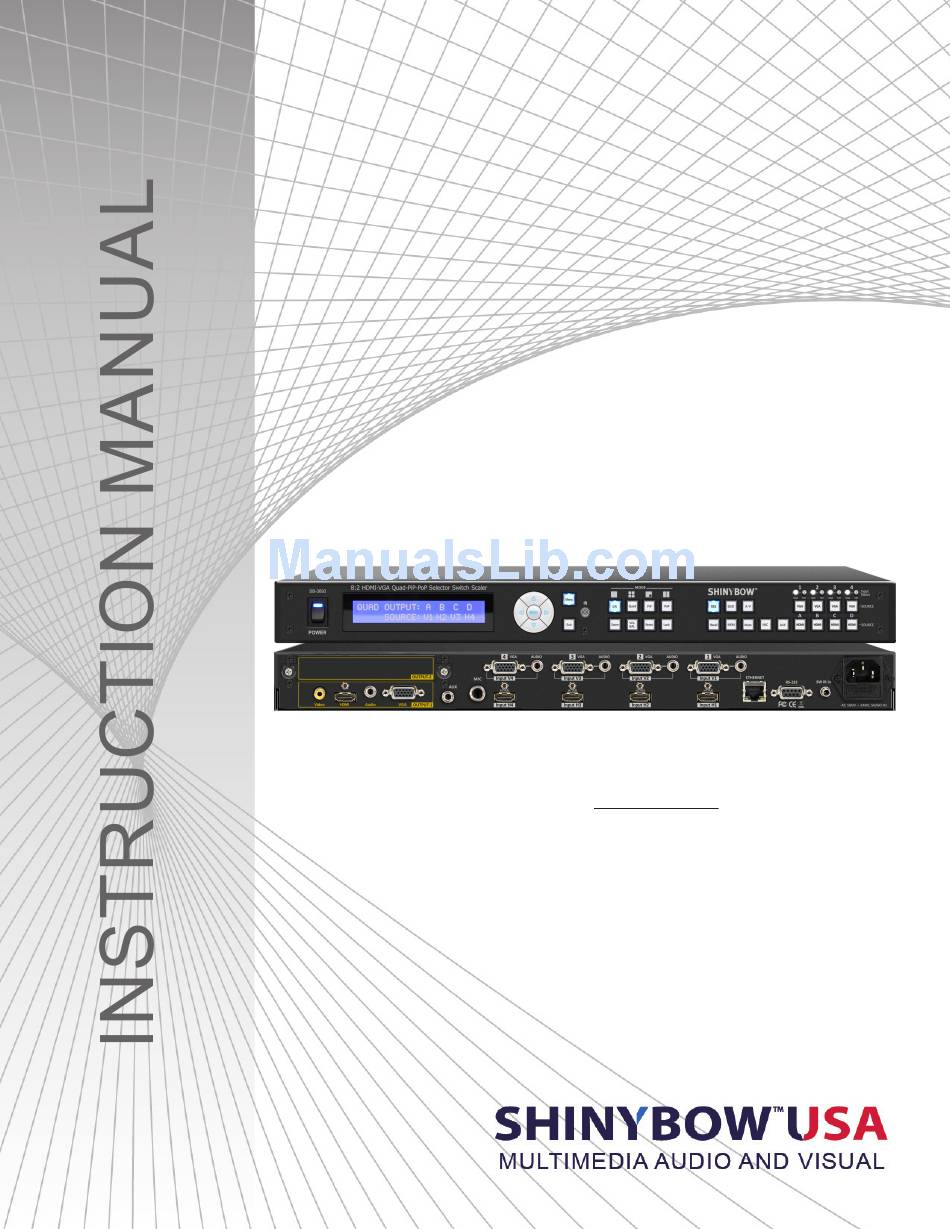

SB-3693
8x2 HDMI/VGA QUAD-PiP-PoP Selector Switch Scaler
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement
screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing
the HDMI Locking Post replacement screws will void your warranty.

Advertisement

Table of Contents
loading

Related Manuals for Shinybow USA SB-3693

Summary of Contents for Shinybow USA SB-3693

  • Page 1 SB-3693 8x2 HDMI/VGA QUAD-PiP-PoP Selector Switch Scaler IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    HDMI-VGA QUAD-PiP-PoP Scaler Series Thank you for purchasing the SB-3693 8x2 HDMI/VGA Quad-PiP-PoP Selector scaler switch. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this selector switcher.

  • Page 4: Features & Contents

    • Universal Power Supply 100~240VAC, 50/60Hz PACKAGE CONTENTS Check that you have the following components; • SB-3693 Selector Switch Scaler • RS-232 V1.0/Ethernet V1.0 Protocol Instructions • Master wireless IR Remote Control (SW-3693) • 19 inch Ear mount bracket (Part # 1U-440L) •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of Switcher: (4) HDMI and (4) VGA Inputs to (1) HDMI, VGA and Audio Output Selector Scaler Switch • Function Modes: Switch, (4) Quad, PiP & PoP • HDMI Supported: HDMI 1080p@60Hz, H36-bit Deep color • HDCP / HDMI Supported: HDCP 1.2 Compliant, HDMI 1.3 version • Video Bandwidth: Double Data Rates: 165Mhz, Total 4.95Gbps bandwidth • Scaling Video Supported: HD: 480i/ 480p/ 720p and up to 1080i/p • Inputs: (4) HDMI and (4) VGA (HDMI or DVI digital source)

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.

  • Page 7: Function Keys

    FUNCTION KEY - SW FUNCTION KEY 8. FUNCTION KEY: SW: A/V Source Table : Input-1: VGA (V1) or HDMI (H1) Input-2: VGA (V2) or HDMI (H2) Input-3: VGA (V3) or HDMI (H3) Input-4: VGA (V4) or HDMI (H4) To enable the SWITCH option on a specific Output, perform the following steps: 1.
  • Page 8 FUNCTION KEY - QUAD 9. FUNCTION KEY: QUAD: Video Default: A: H1, B: H2, C: H3, D: H4 source Audio Default: A source To enable the QUAD option on a specific Output, perform the following steps: 1. Press the QUAD button. The screen will return to QUAD mode status. 2.
  • Page 9 FUNCTION KEY - PiP 10. FUNCTION KEY: PiP: To enable the PiP option on a specific Output, perform the following steps: 1. Press the PiP button. The screen will return to PiP mode status. PiP button (A and B position) Video Default: A: H1, B: H2 source Audio Default: A source 2.
  • Page 10 FUNCTION KEY - PoP 11. FUNCTION KEY: PoP: To enable the PoP option on a specific Output, perform the following steps: 1. Press the PoP button. The screen will return to PoP mode status. PoP button (A and B position) Video Default: A: H1, B: H2 source Audio Default: A source 2.
  • Page 11 FUNCTION KEY - ZOOM 12. FUNCTION KEY: ZOOM: 1. Setup ZOOM mode from PiP. To enable ZOOM mode on PiP for a specific Output, perform the following steps: In the system setup for the PiP mode, the PiP position will move around the corners of the screen. Press the ZOOM button to increase or reduce the “B”...
  • Page 12 FUNCTION KEY - VOL / BAL 13. FUNCTION KEY: VOL / BAL: Audio VOLUME/BALANCE mode to control Audio Volume and Balance. The LCM will not show OUTPUT-2 on the display when the modular Output-2 port is removed. Setup the VOLUME and BALANCE function mode. To adjust the volume and balance on any Output 1.
  • Page 13 FUNCTION KEY - RESOLUTION 14. FUNCTION KEY: RESOLUTION: OUTPUT-1 & OUTPUT-2 Resolution The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed. To select the HDMI Resolution option on a specific Output, perform the following steps: 1.
  • Page 14 FUNCTION KEY - EDID 15. FUNCTION KEY: EDID: OUTPUT-1 & OUTPUT-2 EDID Learning mode M2 setup The LCM will not show OUTPUT-2 on the display when the Modular Output-2 port is removed. To enable the Learning EDID mode option on a specific Output, perform the following steps: 1.
  • Page 15 FUNCTION KEY - MEMORY / RECALL 16. FUNCTION KEY: MEMORY: MEMORY Mode in SW status. The system will show stored presets up to a total of (8). Presets are stored in the local memory using VGA source keys V1 thru V4 and HDMI source keys H1 thru H4 memory preset locations.
  • Page 16 FUNCTION KEY - AUDIO BREAKAWAY 18. FUNCTION KEY: AUDIO BREAKAWAY: AUDIO Breakaway Mode to separate Video and Audio. The system will show stored presets up to a total of (8). Presets are stored in the local memory using VGA source keys V1 thru V4 and HDMI source keys H1 thru H4 memory preset locations.
  • Page 17 FUNCTION KEY - MUTE / AUX / MIC / RESET 19. FUNCTION KEY: MUTE: Audio MUTE Mode to mute audio. MUTE to mute audio output. 1. Press MUTE button once. The display will show “M“ and the channel button will illuminate for the selected output. 20.
  • Page 18 FUNCTION KEY - MENU (SETUP AUDIO EQUALIZER) 23. FUNCTION KEY: MENU (SETUP AUDIO EQUALIZER): MENU Mode adjusts the TV Video System or IP/Coax Channel and Audio Equalizer status. Menu Function Modes: Setup the Audio EQ, TV Video System, IP and Coax Channel. Presets are stored in local Audio EQ using the MENU button.
  • Page 19 FUNCTION KEY - MENU (SETUP TV VIDEO SYSTEM STANDARD) 23. FUNCTION KEY: MENU (SETUP TV VIDEO SYSTEM STANDARD): Setup Optional Modular (Output-2) TV VIDEO SYSTEM STANDARD for OUTPUT-1 & 2 Composite Video output. To select the TV VIDEO SYSTEM option on a specific Output, perform the following steps: Configure desired matrices.
  • Page 20 FUNCTION KEY - MENU (SETUP IP CHANNEL) 23. FUNCTION KEY: MENU (SETUP IP CHANNEL): Setup Optional Modular (Output-2) IP TRANSMITTER CHANNEL output. To select the IP CHANNEL option on a specific Output, perform the following steps: 1. Press the MENU button to select the IP CHANNEL. 2.
  • Page 21 FUNCTION KEY - MENU (SETUP COAX CHANNEL) / EXIT / LOCK 23. FUNCTION KEY: MENU (SETUP COAX CHANNEL): Setup Optional Modular (Output-2) COAX TRANSMITTER CHANNEL output. To select the COAX TRANSMITTER CHANNEL option on a specific Output, perform the following steps: 1.

  • Page 22: Back Panel

    BACK PANEL BACK PANEL 1. POWER INLET: POWER SOCKET : The switcher is fitted with an AC power plug input Connector Type : IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 23 BACK PANEL BACK PANEL 5. VGA / AUDIO INPUT: VGA video jack female HD-15F connector Connects a VGA (RGBHV) and stereo audio signal to the DB-15F female connector. Supports VGA (RGBHV) and stereo Audio(AR/AL) to the VGA monitor or display. 6.
  • Page 24 OPTIONAL MODULAR OUTPUT CARDS OPTIONAL MODULAR TABLE : 3693 MODULAR: SCALER OUTPUT 2 MODEL: T-HDMI-A (1) HDMI OUT, (1) STEREO AUDIO AND (1) SPDIF OUT MODEL: T-HDBT-100 (1) HDBT OUT (100M), (1) IR IN/OUT & RS-232 MODEL: T-HDBT-100P (1) HDBT POH OUT (100M), (1) IR IN/OUT & RS-232...

  • Page 25: Remote Control

    REMOTE CONTROL & REMOTE PROTOCOL COMMANDS BEFORE MAKING ANY CONNECTIONS OBSERVE THE FOLLOWING: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 26 IR DATA CODE LIST IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 5EA1 POWER ON: 5EA1 A15E AUDIO: 5EA1 BA45 POWER OFF: 5EA1 A25D 1-VOLUME+: 5EA1 8D72 MUTE: 5EA1 9E61 2-VOLUME+: 5EA1 BD42 ZOOM:...

  • Page 27: Rs-232 & Ethernet Protocol

    RS-232 & ETHERNET SERIAL INTERFACE RS-232 & ETHERNET SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V1.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the command string to select Inputs: FUNCTION COMMAND COMMAND VARIABLES...

  • Page 28: Typical Hook-Up & Application

    INSTALLING DIAGRAM Sample Connection: 1. Using External IR, RS-232 or Ethernet commands to control the switcher SB-3693 via a PC or an IR external receiver (model SB-100) to transmit the SB-3693’s IR remote signal. 2. Using (4) HD source devices for Switch/Quad/PiP/PoP functions.

  • Page 29: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .

  • Page 30: Input & Output Resolutions

    INPUT & OUTPUT RESOLUTIONS HDMI INPUT RESOLUTIONS 480i 576i 720p 1080p 480p 576p 1080i All of the above HDMI Input Resolutions work with the following HDMI Output Resolutions. SVGA 480p 576p 720p 1080i 1080p 640x480 800x600 720x480 720x576 1080x720 1920x1080 1920x1080 VGA INPUT &...
  • Page 31 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
