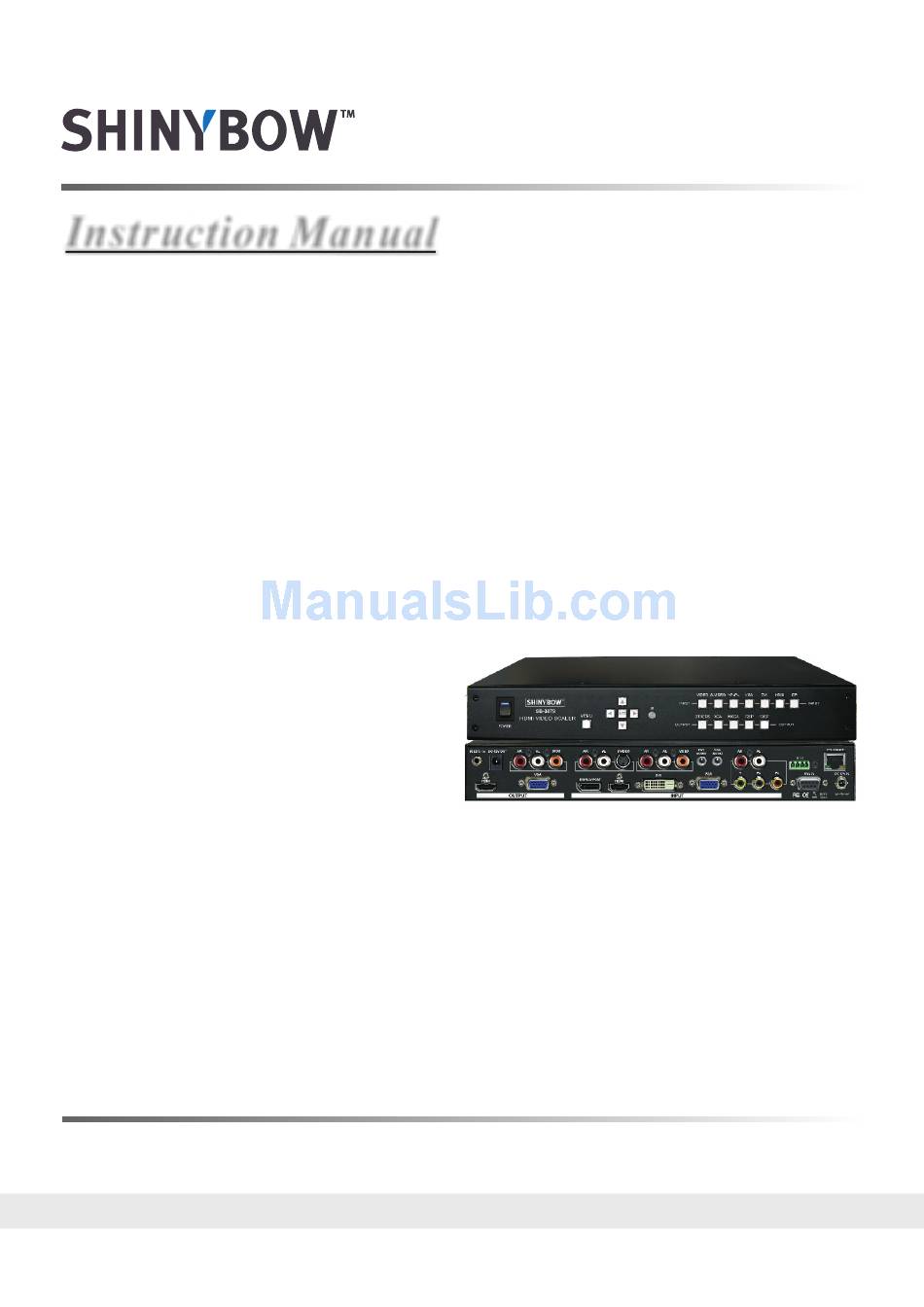

Instruction Manual
M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual

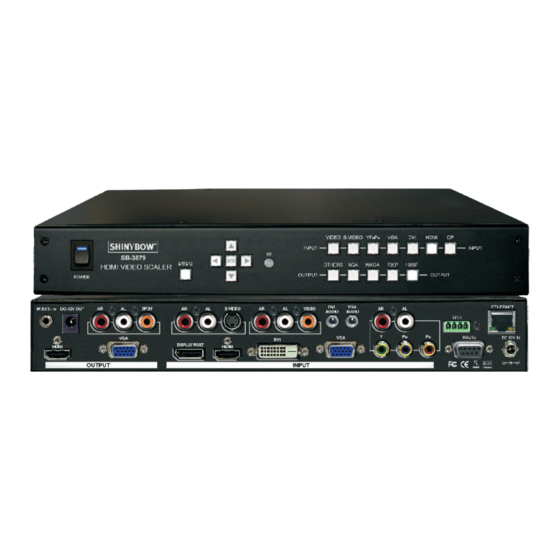

MODEL : SB-3879
HDMI SCALER BOX
HDMI-VGA SCALER BOX SERIES
Version No.: 3879-20130823-001
Thank you for purchasing the SB-3879 HDMI-VGA SCALER BOX. You will find this unit easy to install and highly
reliable but it is essential that you read this manual throughly before attempting to use HDMI-VGA SCALER BOX.
Part No.: ENCL003879CT0A0
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-3879
Summary of Contents for Shinybow USA SB-3879
- Page 1 Version No.: 3879-20130823-001 Thank you for purchasing the SB-3879 HDMI-VGA SCALER BOX. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use HDMI-VGA SCALER BOX.
-
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. -
Page 3: Table Of Contents
T prevent electric shock do not use this (polarised) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. T prevent electric shock, match wide blade of plug to wide slot, fully insert. PAGE 3 SB-3879 INSTRUCTION & OPERATION MANUAL... - Page 4 PAGE 4 SB-3879 INSTRUCTION & OPERATION MANUAL...
-
Page 5: Rear Panel
Used for testing purpose. IR EXTENDER CONTROL Supports remote control via IR extender. IR Ex tender Jack: Maximum extend distance reaches 300 me ters (around 1000 feet). Female Jack - inner OD O 3.5 mm PAGE 5 SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 6: Rear Panel
DV I digital video sources. DISPLAYPORT INPUT Connect a signal of display port to the DP port, which Display port digita l video and audio connector supports digital video and audio. PAGE 6 SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 7: Rear Panel
Female HD MI connector, which supports HD MI Wi th proper adapters, the scaler can be digital video/audio and DV I digital video sources. used wi th DV I digital video signals, and HDCP compliant. PAGE 7 SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 8: Front Panel
Exit: leave the OSD menu Output (XGA, WXGA, 720p, 1080p, others): select the desired output resolution supported by your display device OSD time out: adjust the OSD menu display time Video wall: open the video wall options PAGE 8 SB-3879 INSTRUCTION & OPERATION MANUAL... - Page 9 20DF 0AF5 20DF 07F8 Example 2: Open OSD-> move right -> move down to next layer -> enter to confirm selection The IR Data Code: 20DF 15EA 20DF 48B7 20DF 1DE2 20DF 51AE SB-3879 INSTRUCTION & OPERATION MANUAL PAGE 9...
- Page 10 (2M) Ring Tip:Signal Ring Ring: NC Sleeve:GND GND (Sleeve) Sleeve Tip (center) SB-100C Receiver Cable Signal (center) SB-100C Receiver Cable and SB-101C Transmitter Cable The DISTANCE maximum 2M / ~ 6 feet PAGE 10 SB-3879 INSTRUCTION & OPERATION MANUAL...
-
Page 11: Typical Application
COMPONENT VIDEO, AV, DVI, HDMI, Display Port (5 input ports connected) OUTPUTS 1 ~ 2 PORT DISPLAY SIGNALS : VGA, HDMI SB-3879 SUPPORTS 7x INPUTS AND 2x OUTPUTS, CONTROL IR & RS 232 INTERFACE SYSTEM PORTS. SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 12: Features
15. Supports IR extender with maximum extend distance reaching 300 meters 16. Supports TV wall function, allowing the image to be divided on multiple displays/monitors 17. Power supply DC 12V, universal type switch, 100~240 VAC, 50/50Hz PAGE 12 SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 13: S Pecifications-1
19-inch panel type (1U-44L) Power Supply Input 100 ~ 240 VAC, 50/60 Hz Output DC 12V, 3A Safety Approvals CE, FCC, RoHS (2002/95/EC) Temperature 32F ~ 100F (0~32C) Shipping Weight 2.05 Kgs / 3.42 lb PAGE 13 SB-3879 INSTRUCTION & OPERATION MANUAL... - Page 14 Supports full HD @ 24 Hz full HD 3D signal with special algorithm for RH/LH synchronization Bypass XGA & 720p 120 Hz 3D signal for DLP link 3D ready projector for active 3D display PAGE 14 SB-3879 INSTRUCTION & OPERATION MANUAL...
-
Page 15: Input Resolution Support - 1
WVGA 848x480 @ 60 Hz WVGA 852x480 @ 60 Hz 480p 1024x768 @ 60 Hz 1024x768 @ 70 Hz 1024x768 @ 75 Hz A detailed resolution timing list is included in the appendix. SB-3879 INSTRUCTION & OPERATION MANUAL PAGE 15... - Page 16 1400x1050 @ 60 RB SXGA+ 1440x900 @ 60 Hz WXGA+ 1440x900 @ 75 Hz WXGA+ 1440x1050 @ 60 Hz SXGA+ 1600x1200 @ 60 Hz UXGA A detailed resolution timing list is included in the appendix. PAGE 16 SB-3879 INSTRUCTION & OPERATION MANUAL...
- Page 17 1920x1080p @ 50 Hz 1080p HD 1920x1080p @ 60 Hz 1080p HD 1920x1080p @ 24 Hz Full HD 1080p 2048x1280 @ 60 Hz 2560x1600 WQXGA A detailed resolution timing list is included in the appendix. SB-3879 INSTRUCTION & OPERATION MANUAL PAGE 17...
- Page 18 1360x768 -> 1280x1024 -> 1600x1200 -> 1920x1200 To select 720x480, 800x600, 1280x800, open the OSD menu and go to the IMAGE PROPERTIES to adjust the settings in the output mode. PAGE 18 SB-3879 INSTRUCTION & OPERATION MANUAL...
-
Page 19: Appendix
@30 Hz 1125 1080 1920x108p 33.75 74.25 2200 1920 44 P @50 Hz 1125 1080 1920x108p 56.25 148.5 2640 1920 44 P @60 Hz 1125 1080 1920x108p 67.5 148.5 2200 1920 44 P SB-3879 INSTRUCTION & OPERATION MANUAL PAGE 19... - Page 20 192 P @ 60 Hz 2160 1250 1200 1600x1200 1600 176 N @ 60 Hz 2240 1089 1050 1680x1050 65.179 59.852 1680 32 P @ 60 RB 2080 1235 1200 1920x1200 74.038 59.95 1920 PAGE 20 SB-3879 INSTRUCTION & OPERATION MANUAL...
-
Page 21: Appendix - 3
33.75 74.25 2200 1080 1920x1080p 1920 44 P 1125 @ 50 Hz 56.25 148.5 2640 44 P 1125 1080 1920x1080p 1920 @ 60 Hz 67.5 148.5 2200 44 P 1125 1080 1920x1080p 1920 SB-3879 INSTRUCTION & OPERATION MANUAL PAGE 21... -
Page 22: Limited Warranty
Site or its Content, products or services. PAGE 22 SB-3879 INSTRUCTION & OPERATION MANUAL... -
Page 23: Troubleshooting
Replace cables exhibiting any of these problems. You also must use the highest quality cables if you want to achieve the best result. Poor quality cables result in poor quality signals. PAGE 23 SB-3879 INSTRUCTION & OPERATION MANUAL... - Page 24 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
