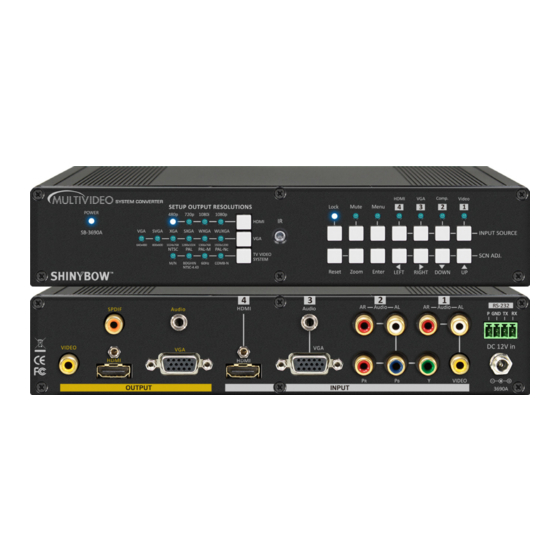

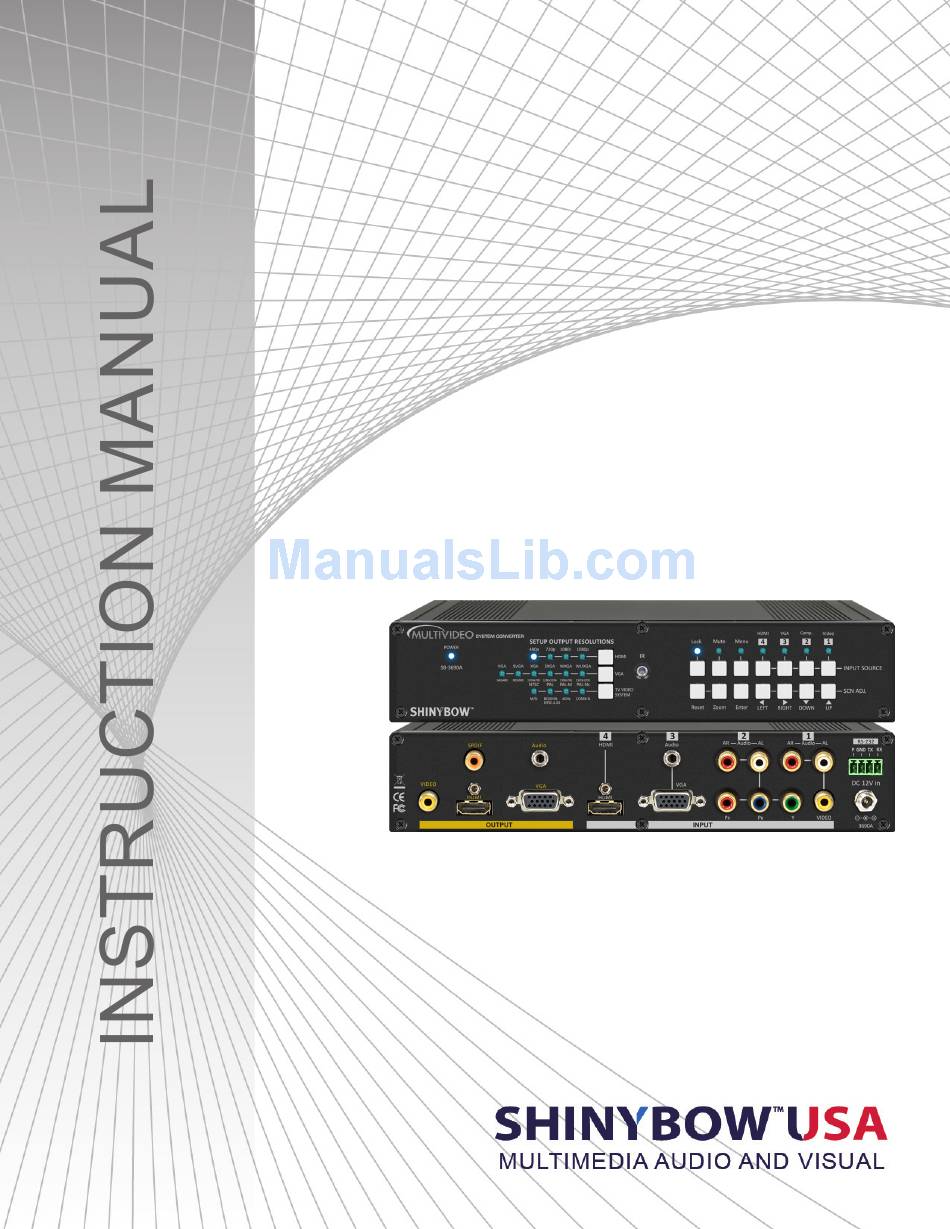

- Page 1 SB-3690A MultiVideo Digital Converter with Audio...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
MultiVideo Digital Converter Series Thank you for purchasing the SB-3690A MultiVideo Digital Converter. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use MultiVideo Digital Converter. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Multi-Video Input from (4) Video/Comp/VGA/HDMI to (3) Video/VGA/HDMI Digital Converter • Supports HDMI 1.3a 3D formats (225MB) and suits HDMI V1.3 transmitter & receiver • HDMI 1.3, DVI 2.0, and HDCP 2.0 compliant • Inputs: •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER LED: The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 6 FRONT PANEL FRONT PANEL 8. LOCK BUTTON: - Press and hold LOCK button for three seconds lockout the front panel and LED display show out. - Press and hold LOCK button for three seconds to enable the front panel. 9. RESET BUTTON: Press the RESET button to disable the SCN-ADJ screen function.
-
Page 7: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The converter suits a DC power plug-pack input DC Jack - Inner OD Ø 2.1 mm (+) connector. Please ensure the plug-pack used is of an approved Outside OD Ø 5.5mm (GND) type and of correct current, voltage output, and connector polarity. - Page 8 BACK PANEL BACK PANEL 7. AUDIO OUTPUT: Stereo Audio (AR/AL) via (1) OD3.5mm ear Connects the stereo audio output port of your phone jack connector source audio device to the stereo audio (AR/AL) inputs. Note: With (1) female phone jack each channel 8.
-
Page 9: Remote Control
REMOTE CONTROL & REMOTE PROTOCOL COMMANDS Before making any connections observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 10 IR DATA CODE LIST IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 4AB5 POWER ON: 4AB5 A15E POWER OFF: 4AB5 A25D MUTE 4AB5 9E61 MENU 4AB5 A55A ENTER 4AB5 AB54 AV SOURCE : 4AB5 BB44 COMPONENT...
-
Page 11: Rs-232 & Ethernet Serial Interface
RS-232 & ETHERNET SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the commanded string to route Input 3 to Output 4 OUTPUT04 03;... -
Page 12: Typical Hook-Up & Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: 1. Using RS-232 commands to control the Converter (SB-3690A) via a PC. 2. Input supports: A/V, Component, VGA and HDMI source devices. 3. Output supports: NTSC/PAL TV, VGA Monitor or HDMI displays. NOTE: 1. TV Output Supports:... -
Page 13: Hdmi Input & Output Resolutions
HDMI INPUT & OUTPUT RESOLUTIONS VIDEO INPUT & VIDEO-VGA-HDMI RESOLUTION Resolutions available Composite Video/Audio Input Resolutions: NTSC@3.58/60Hz PAL@4.43/50Hz Composite Video/Audio Output Resolutions: VIDEO (Composite Video): VGA: HDMI: NTSC VGA (640x480) 480p SVGA (800x600) 720p PAL-M 60Hz XGA (1024x768) 1080i PAL-Nc SXGA (1280x1024) 1080p WXGA (1366x768) - Page 14 HDMI INPUT & OUTPUT RESOLUTIONS HDMI INPUT & VIDEO-VGA-HDMI RESOLUTION Resolutions available HDMI Video/Audio Input Resolutions: 480i 720p 480p 1080i 576i 1080p 576p HDMI Video/Audio Output Resolutions: VIDEO (Composite Video): VGA: HDMI: NTSC VGA (640x480) 480p SVGA (800x600) 720p PAL-M 60Hz XGA (1024x768) 1080i PAL-Nc...
-
Page 15: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc. - Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
