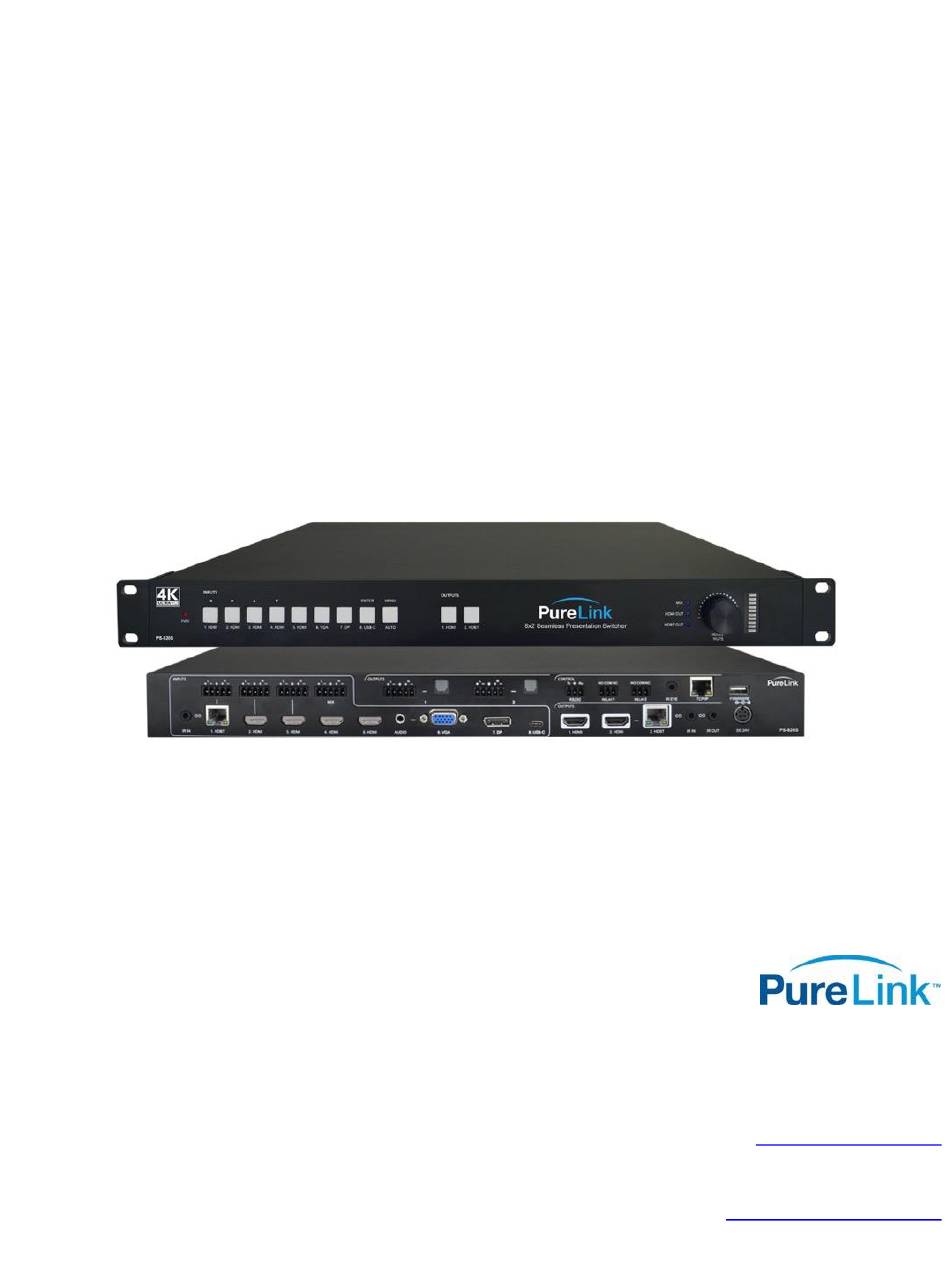

- Page 1 PS-820S 8x2 4K/60 Seamless Presentation Switcher USER MANUAL 22-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com.
-
Page 2: Table Of Contents
SAFETY PRECAUTIONS ..............................4 INTRODUCTION ................................5 Product Description ..............................5 Package Contents ..............................5 SPECIFICATIONS ................................6 PS-820S Seamless Switcher ............................ 6 PS-TX/RX Extender Kit ............................7 PANEL DESCRIPTION..............................9 PS-820S Front Panel ............................... 9 PS-820S Rear Panel............................... 10 .................................... - Page 3 Relay Control ..............................22 CEC Control ................................23 Tag Setting ................................25 RS-232 Control..............................26 Network Setting..............................28 Password Setting ..............................28 OSD CONTROL ................................29 TROUBLESHOOTING & MAINTENANCE ........................32 WARRANTY & CUSTOMER SERVICE ......................... 33 PS-820S USER MANUAL VERSION 1.3...
-
Page 4: Safety Precautions
Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. PS-820S USER MANUAL VERSION 1.3... -
Page 5: Introduction
INTRODUCTION Product Description The HDTools™ PS-820S is an 8×2 seamless presentation switcher with 18 Gbps support and true 4K/60 @ 4:4:4 instant switching and individual video scaling for each output buss. The PS-820S features flexible input options including HDMI, HDBaseT, DisplayPort, and USB-C, as well as balanced audio embedding and audio mixing via S/PDIF. -
Page 6: Specifications
SPECIFICATIONS PS-820S Seamless Switcher VIDEO Input Signal (1) HDBaseT, (4) HDMI, (1) Display Port, (1) VGA, (1) USB-C (1) RJ45, (4) Type-A female HDMI, (1) Type-A female DisplayPort, Input Connectors (1) 15-pin female VGA, (1) Type-C USB 3.0 HDBaseT: Up to 4Kx2K@60Hz 4:4:4... -
Page 7: Ps-Tx/Rx Extender Kit
>70dB@1KHz Noise Level -80dB CONTROL (1) RS232, (2) Relays, (1) IR eye for PS-820S remote, (2) IR In, (1) IR Out, (1) TCP/IP, Control Ports (1) Firmware Connectors (3) 3-pin terminal blocks, (4) 3.5mm jacks, (1) RJ45, (1) Type-A USB... - Page 8 -25℃ ~ +70℃ Relative Humility 10%-90% External Power Supply Input Power: 12V DC 2A or Power over Cable (PoC), AC Adapter Input Power: 100~240VAC, 50/60Hz Dimension (W*H*D) 115mm x 16mm x 84mm Net Weight (g) 150g (ea.) PS-820S USER MANUAL VERSION 1.3...
-
Page 9: Panel Description
PANEL DESCRIPTION PS-820S Front Panel ① Power LED: The LED illuminates red the device is powered on. ② SOURCE: Total nine buttons with amber backlight. 1-HDBT input selector. Operates as Left navigation when OSD present. ⚫ 2-HDMI input selector. Operates as Right navigation when OSD present. -
Page 10: Ps-820S Rear Panel
PS-820S Rear Panel ① INPUT: Eight inputs, with five embedded audio inputs and one IR input. 1-HDBT: RJ45 port to connect the PS-820S TX transmitter to receive video, audio, IR and RS232 control ⚫ signal, and one external balanced audio input (5-pin) can be embedded in the HDBT video. The HDBaseT TX is powered from the PS-820S by 24V PoC. - Page 11 TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher by GUI. ⚫ FIRMWARE: Type-A USB port for firmware upgrade. ⚫ ⑤ DC 24V: DC barrel connector for the power adapter connection. PS-820S USER MANUAL VERSION 1.3...
-
Page 12: Ps-Tx Front & Rear Panel
⑥ IR OUT: 3.5mm jack to connect the IR emitter for IR pass-through. ⑦ HDBT IN: RJ45 port to connect the HDBT OUT port of switcher by CATx Ethernet cable. ⑧ DC 12V: DC barrel connector for the power adapter connection. PS-820S USER MANUAL VERSION 1.3... -
Page 13: System Connection
6. VGA 7. DP 8. USB-C 1. HDMI 2. HDMI 2. HDBT IR IN IR OUT DC 24V Game Console 4K 40m,1080P 70m 4K 40m,1080P 70m MacBooK HDTV Projector Project Screen HDMI 2.0 Receiver HDTV Cellphone PS-820S USER MANUAL VERSION 1.3... -
Page 14: Front Panel Control
Source removed: When an active source is removed, the switcher will switch to the first available active input ⚫ starting at 1-HDBT input. In auto mode, the input source also can be switched by the manual switching steps. ⚫ PS-820S USER MANUAL VERSION 1.3... -
Page 15: Sound Volume Control
Adjusting the knob in clockwise direction to increase sound volume. ⚫ Adjusting the knob in anti-clockwise direction to decrease sound volume. ⚫ Press and hold the knob at least three seconds to mute the selected audio. Rotate the knob to unmute. ⚫ PS-820S USER MANUAL VERSION 1.3... -
Page 16: Ir Remote Control
⑦ Return to the previous OSD menu. ⑧ MIX input audio control: Mute, Volume Down and Volume Up. ⑨ HDMI output audio control: Mute, Volume Down and Volume Up. ⑩ HDBT output audio control: Mute, Volume Down and Volume Up. PS-820S USER MANUAL VERSION 1.3... -
Page 17: Gui Control
Subnet Mask: 255.255.255.0 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage: Username: admin Password: admin Type the username and password, and then click Login to enter the section for video switching. PS-820S USER MANUAL VERSION 1.3... -
Page 18: Video Switching
HDMI OUTPUT: Switch the selected input source to HDMI output. Click AUTO to enable/disable automatic ⚫ switching mode. HDBT OUTPUT: Switch the selected input source to HDBT output. Click AUTO to enable/disable automatic ⚫ switching mode. Preset: Save the current routing status to preset 1~5. ⚫ PS-820S USER MANUAL VERSION 1.3... -
Page 19: Resolution Selection
HDBT OUTPUT: Select the HDBT output video resolution. Press AUTO to automatically select the best output ⚫ resolution for satisfying the connected display. Note: If EDID communication is failed, the 1080P@60Hz will be used as default output resolution. PS-820S USER MANUAL VERSION 1.3... -
Page 20: Audio Control
HDMI Output: Select MIX input audio to mix with HDMI output audio, and then control the global output ⚫ audio by volume bar and buttons. HDBT Output: Select MIX input audio to mix with HDBT output audio, and then control the global output ⚫ audio by volume bar and buttons. PS-820S USER MANUAL VERSION 1.3... -
Page 21: Configuration
Configuration POC Setting Turn on or off PoC for HDBT output port. ⚫ Turn on or off PoC for HDBT input port. ⚫ EDID Management PS-820S USER MANUAL VERSION 1.3... -
Page 22: Relay Control
NO connection opens, and the NC connection closes. When clicking Latching, the NO connection closes, and the NC connection opens. When the delay time is up, ⚫ the NO connection opens, and the NC connection closes. PS-820S USER MANUAL VERSION 1.3... -
Page 23: Cec Control
Select the input source which needs to be control, and then press function button as need. ⚫ 2. Display Control Select the output display which needs to be control, and then press function button as need. ⚫ PS-820S USER MANUAL VERSION 1.3... - Page 24 Select the input source, and then type CEC command in the Trigger 1 or Trigger 2 box to control the selected ⚫ source. Select the output display, and then type CEC command in the Trigger 1 or Trigger 2 box to control the ⚫ selected display. PS-820S USER MANUAL VERSION 1.3...
-
Page 25: Tag Setting
Tag Setting INPUTS: Modify the label of input sources. ⚫ Preset: Modify the label of presets. ⚫ PS-820S USER MANUAL VERSION 1.3... -
Page 26: Rs-232 Control
HDBT Transmitter Pass Through: Establish RS232 pass-through communication between the switcher and ⚫ HDBaseT receiver (e.g.PS-820S-U TX/RXR). The RS232 port of the switcher can be used to transfer commands to control the third-party device which is connected to the HDBaseT receiver. - Page 27 Command: Type command in this textbox to control the third-party device. ⚫ Trigger On: Type Power On command in this box to turn on the third-party device. ⚫ Trigger Off: Type Power Off command in this box to turn off the third-party device. ⚫ PS-820S USER MANUAL VERSION 1.3...
-
Page 28: Network Setting
Network Setting Static IP or Dynamic Host Configuration Protocol (DHCP). ⚫ Modify the static IP Address, Subnet Mask, and Gateway. ⚫ Password Setting Modify the login password. ⚫ Lock or unlock the front panel buttons. ⚫ PS-820S USER MANUAL VERSION 1.3... -
Page 29: Osd Control
OSD CONTROL The PS-820S provides a powerful OSD operation menu which contains 3 parts: optional settings, image settings, system settings etc. There are two ways to enter OSD menu: Press and hold the MENU/2s button at least two seconds on the front panel. - Page 30 Sound Menu Option Menu PS-820S USER MANUAL VERSION 1.3...
- Page 31 System Menu Info Menu PS-820S USER MANUAL VERSION 1.3...
-
Page 32: Troubleshooting & Maintenance
No output image when Make sure cables are connected switching. Loose connection. securely. Contact authorized dealer or PureLink’s The switcher is defective. Technical Support Team. POWER indicator is Loose connection of power Make sure the power cord is connected malfunctioning or does not cord. -
Page 33: Warranty & Customer Service
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its specification and functionality,... - Page 34 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
