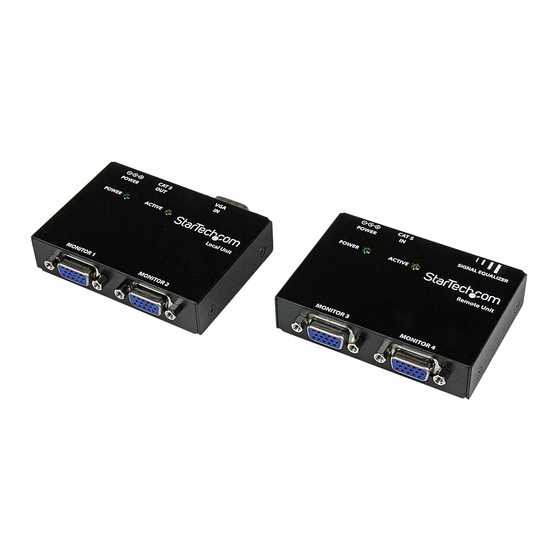

- Page 1 Video Extender Ethernet VGA Signal Extender for Distances up to 500 feet (150 m) ST121UTP Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........6 Accessory Products from StarTech.com ......7 Technical Support . -
Page 4: Introduction
Category 5 patch cable, at both locations (if using premises cabling) Do you need cables? Visit www.startech.com to find what you need and the name a StarTech.com dealer. NOTE: The total length of cable between the Local and Remote Units cannot exceed 500 feet (150 meters), including patch cables (if used). -
Page 5: Contents
Instruction Manual locations as possible and avoid practices such as “coiling” unused cable in a ceiling or behind the display. Contents This package should contain: 1 x Local Unit (transmitter) 1 x Remote Unit (receiver) 2 x AC power adapter 1 x Instruction Manual Connecting Your Signal Extender This product is composed of two different units: the Local Unit and the Remote Unit. -
Page 6: Installing The Local Unit
Instruction Manual Network Video In Power Local Video Out (2) Installing the Local Unit 1: Place the Local Unit near the local computer. 2: Switch off the computer and disconnect any existing VGA and audio connections. 3: If desired, connect the data cable from the local computer display(s) to the video out ports (marked with a monitor symbol) on the Local Unit. -
Page 7: Installing The Remote Unit
Instruction Manual Network Signal Equalizer Power Remote Speaker Out Remote Speaker Out Remote Video Out (2) Installing the Remote Unit 1: Connect the Remote Unit to the Ethernet cable connection from the Local Unit, marked Cat5 IN. 2: Connect the data cable from the display(s) to the opposite side of the Remote Unit, marked with monitor icons (see above). -
Page 8: Troubleshooting
The following section provides troubleshooting help. The solutions are arranged in the order they should be attempted in most situations. If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support using any of the methods on page 8. -
Page 9: Specifications
Instruction Manual Specifications Maximum Resolution 1024 x 768 (at maximum Ethernet cable length) Actual maximum resolution varies by Ethernet cable length Maximum Range 500 feet (150 meters) Ethernet Cabling Type Straight-through Unshielded Twisted Pair (UTP) Cat. 5+ Connectors Local Unit 1 x HD-15 male VGA (video in) 1 x RJ-45 2 x HD-15 female VGA (video out) -
Page 10: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 25 ft Blue Snagless Category 5e (350 MHz) UTP Patch Cable... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 12 Revised: 21 October 2004 (Rev. B)
