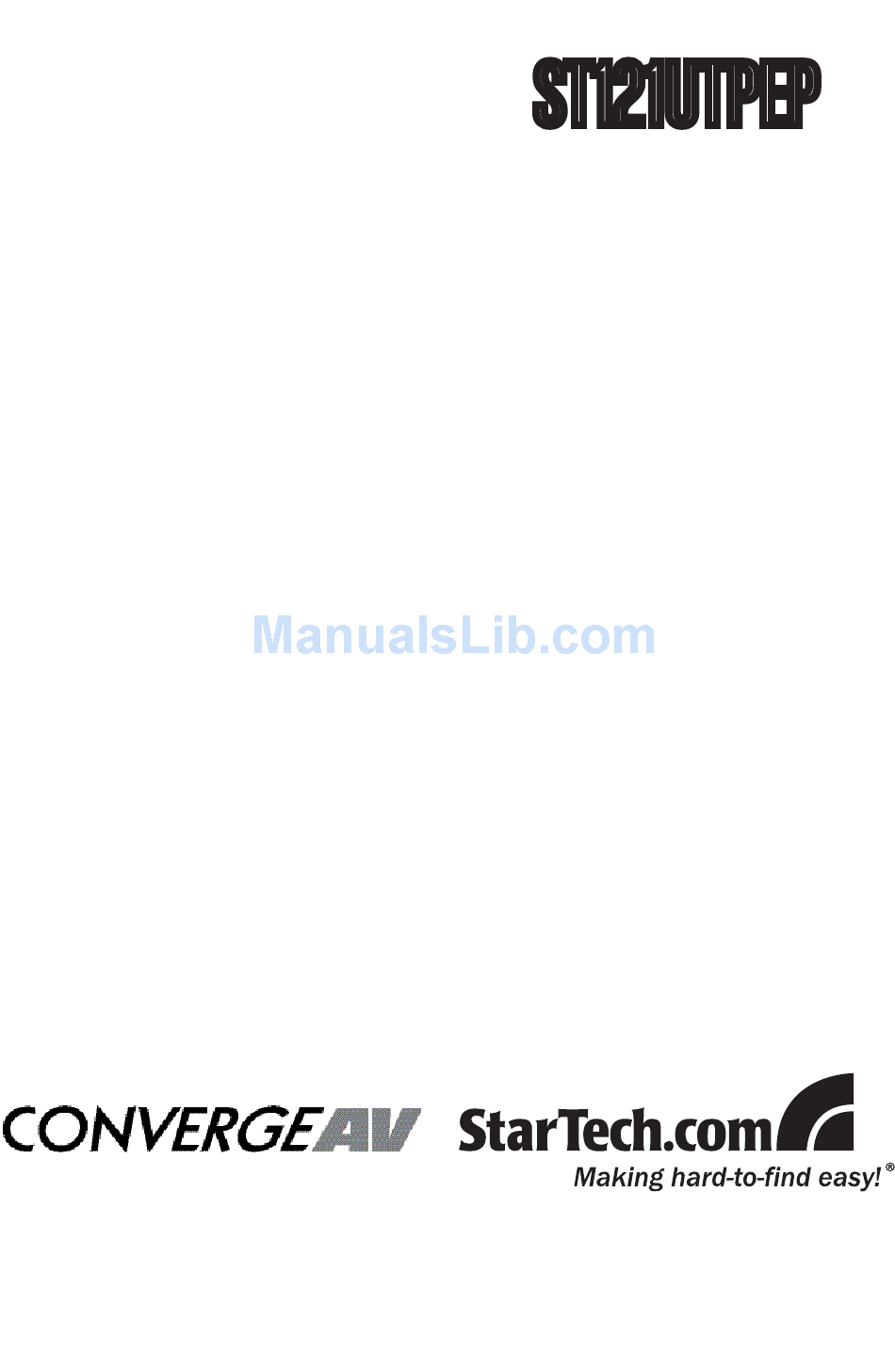

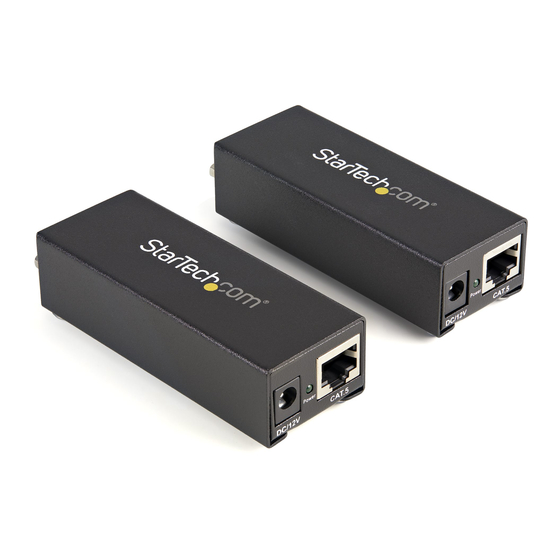

- Page 1 ST121UTPEP Instruction Manual VGA Video Extender over Cat5 VGA Video Extender over Cat5 - Point to Point...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 3 Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Receiver Unit/Transmitter Unit .............2 Distances and Resolutions ..........2 Specifications ..............3 Technical Support ............4 Warranty Information ............4...
- Page 4 Connect the ST121UTPEP Transmitter and ST121UTPEP Receiver units together with a straight through Cat5e cable. Connect the ST121UTPEP Receiver unit’s “VGA Out” connector with a standard VGA (DE-15) male to male cable to the monitor/display. Connect the power adapter to either the Transmitter unit or Receiver Unit, whichever is more convenient.
-
Page 5: Distances And Resolutions
Receiver Unit/Transmitter Unit Installation Bracket “VGA Out” to “VGA In” from video source monitor/display RJ45 port Power LED Power Connector Distances and Resolutions 1920x1200 / 1600x1200 1280x1024 / 1024x768... -
Page 6: Specifications
Specifications • DE-15 VGA connector Connectors (Transmitter Unit) • RJ45 Ethernet connector • DC Power connector • DE-15 VGA connector Connectors (Receiver Unit) • RJ45 Ethernet connector • DC Power connector Maximum Resolution 1920x1200 (50 m/150 ft) Maximum Distance 80 m (250 ft) Operating Temperature 0 - 70 degrees C Storage Temperature... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 8 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
