Installation

The components of the Intellian i2 have been designed to be modular so
that it is suitable for simple installation on all types of vessels.

System Components

Antenna Unit
The antenna of Intellian i2 is comprised with the following components
for optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive an optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits an optimum satellite signal to the receiver.
• Radome – protects the antenna from severe marine environmenta

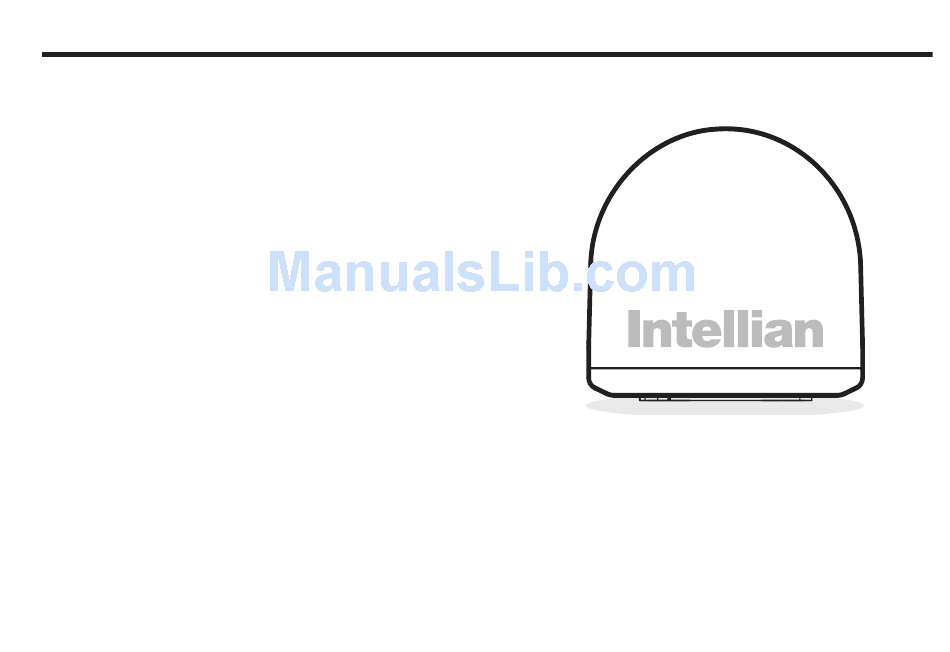

Figure 02 : Radome
7
