RAIN SENSOR SETUP continued
Removing Rain Sensors from Zones continued:

Configuring Rain Sensor Function:

16

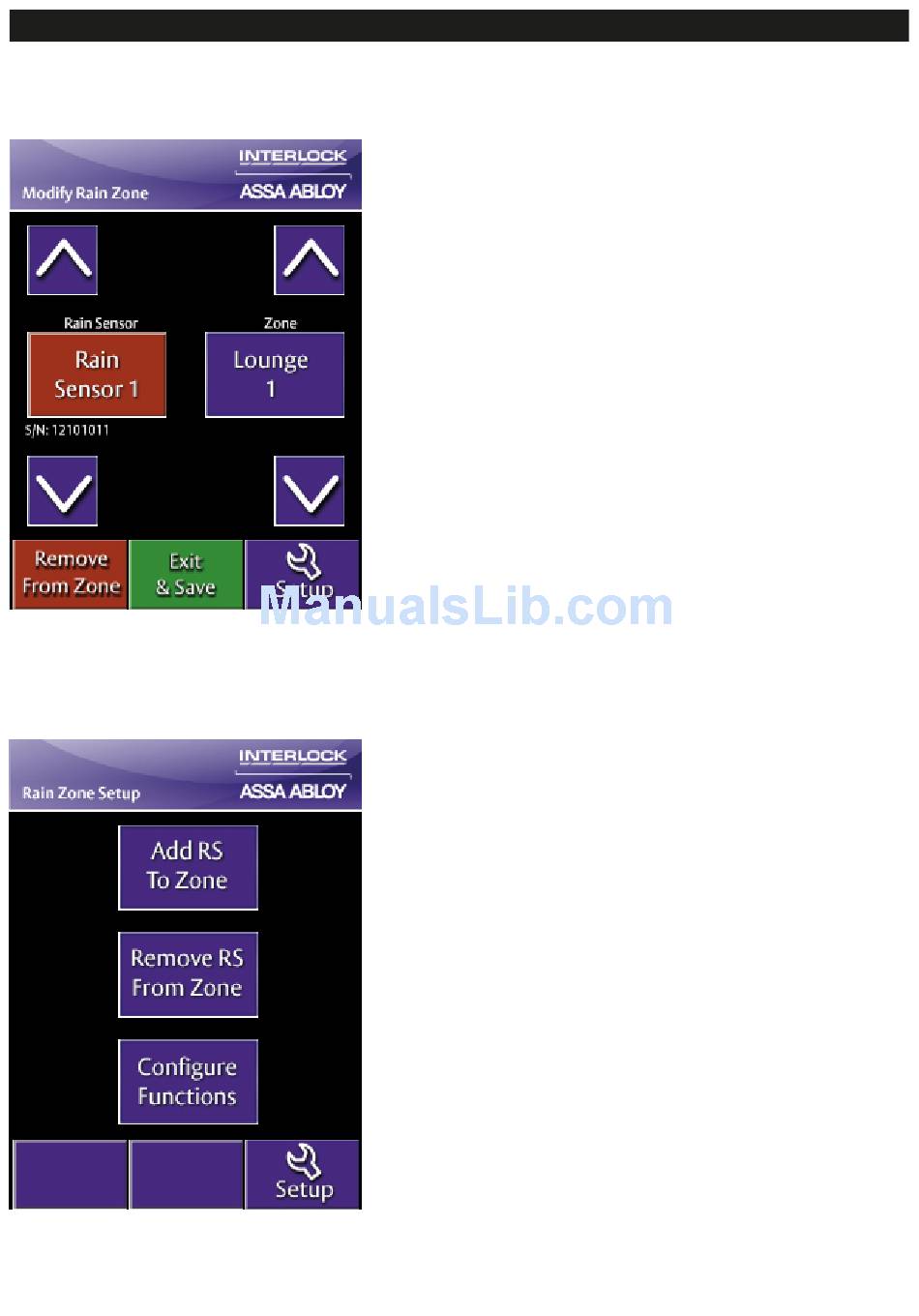

3. Use the arrow keys to scroll to the desired Zone and match it
with the desired Rain Sensor.
4. Press Remove from Zone.
5. Confirm your selection by pressing Yes.
A confirmation screen will be displayed and then the system will
return to the Remove From Zone page.
Note: The Rain Sensor will no longer be displayed on the left hand
side once removed from the Zone.
6. Press Exit & Save once all desired Rain Sensors have been removed.
Note: Restore Previous will not restore Rain Sensor settings.
These will be deleted. See page 11.
There are options in the Rain Sensor Setup page that allow you to
set the way the Zones react in the event of rain.
These options are :
•Disable or Enable Reopen: in the event of rain, the Actuators
will close. If Enable Reopen is selected the Actuators will
automatically reopen to their previous positions once the
Rain Sensor has dried.
•Shut or Vent: in the event of rain the Actuators will move
to this position.
The above options are customized as follows:
1. Press Configure Functions.
