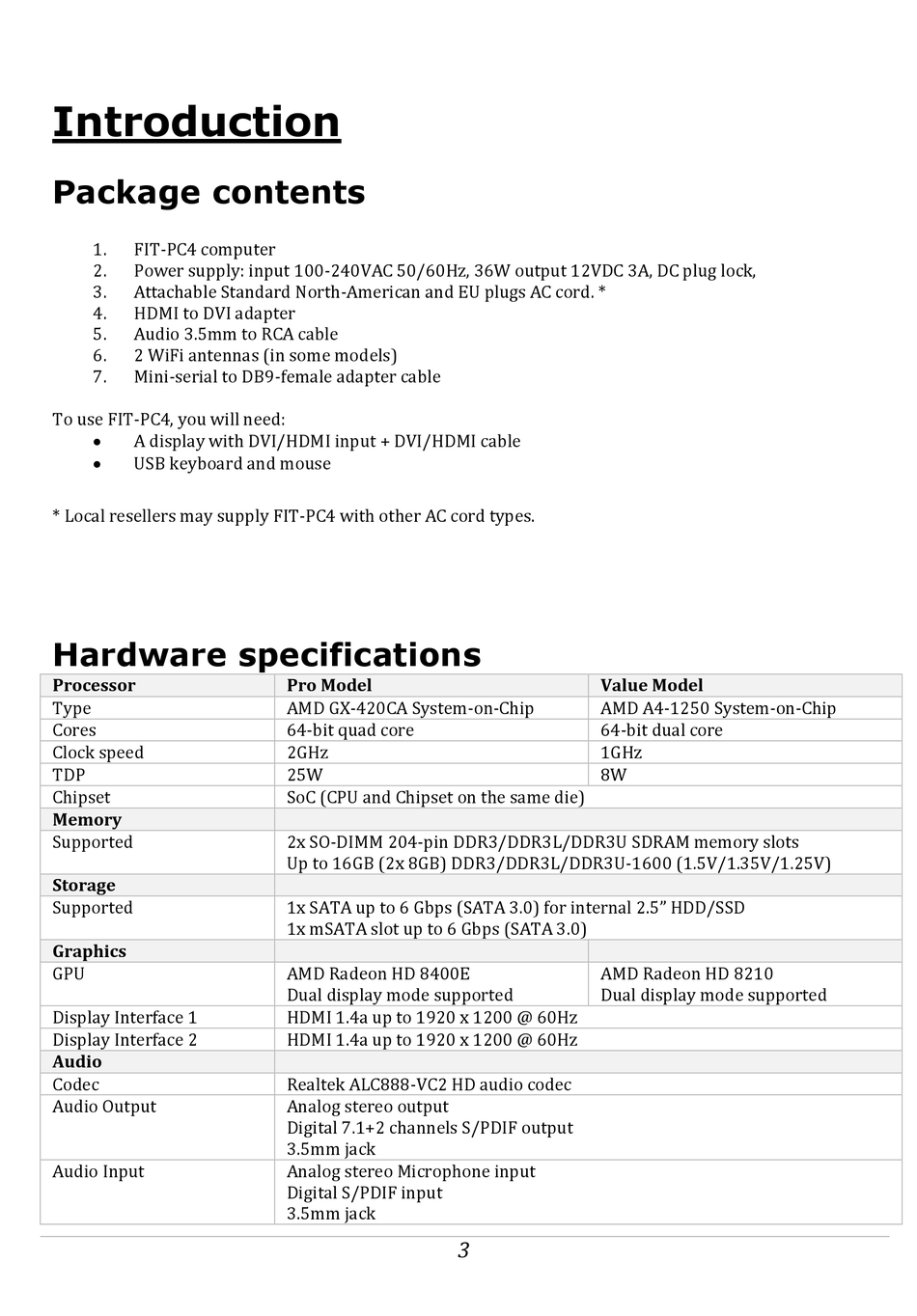

Introduction

Package contents

1. FIT-PC4 computer
2. Power supply: input 100-240VAC 50/60Hz, 36W output 12VDC 3A, DC plug lock,
3. Attachable Standard North-American and EU plugs AC cord. *
4. HDMI to DVI adapter
5. Audio 3.5mm to RCA cable
6. 2 WiFi antennas (in some models)
7. Mini-serial to DB9-female adapter cable
To use FIT-PC4, you will need:

A display with DVI/HDMI input + DVI/HDMI cable

USB keyboard and mouse
* Local resellers may supply FIT-PC4 with other AC cord types.

Hardware specifications

Processor
Type
Cores
Clock speed
TDP
Chipset
Memory
Supported
Storage
Supported
Graphics
GPU
Display Interface 1
Display Interface 2
Audio
Codec
Audio Output
Audio Input
Pro Model
AMD GX-420CA System-on-Chip
64-bit quad core
2GHz
25W
SoC (CPU and Chipset on the same die)
2x SO-DIMM 204-pin DDR3/DDR3L/DDR3U SDRAM memory slots
Up to 16GB (2x 8GB) DDR3/DDR3L/DDR3U-1600 (1.5V/1.35V/1.25V)
1x SATA up to 6 Gbps (SATA 3.0) for internal 2.5" HDD/SSD
1x mSATA slot up to 6 Gbps (SATA 3.0)
AMD Radeon HD 8400E
Dual display mode supported
HDMI 1.4a up to 1920 x 1200 @ 60Hz
HDMI 1.4a up to 1920 x 1200 @ 60Hz
Realtek ALC888-VC2 HD audio codec
Analog stereo output
Digital 7.1+2 channels S/PDIF output
3.5mm jack
Analog stereo Microphone input
Digital S/PDIF input
3.5mm jack
3
Value Model
AMD A4-1250 System-on-Chip
64-bit dual core
1GHz
8W
AMD Radeon HD 8210
Dual display mode supported
