21-Nov-18

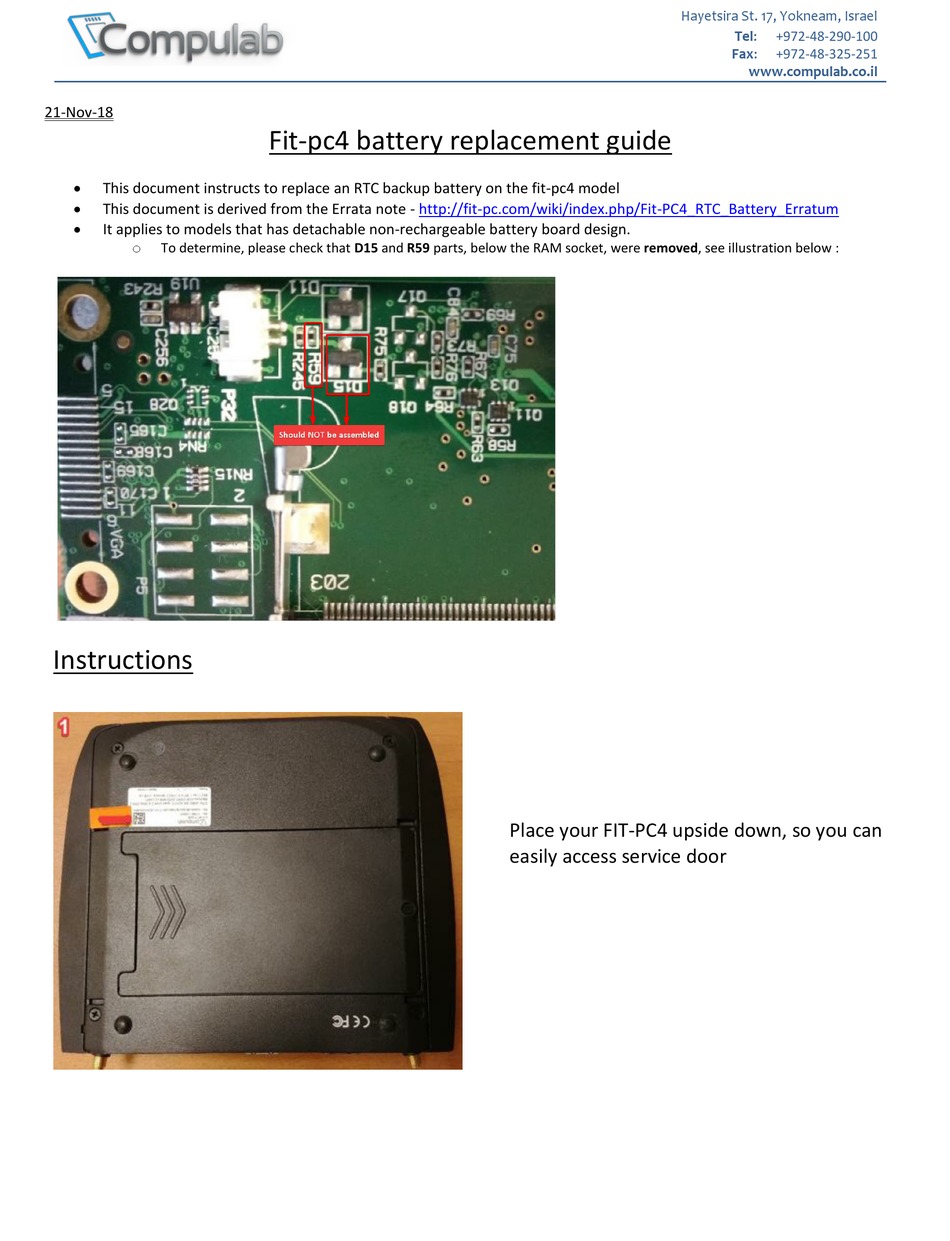

This document instructs to replace an RTC backup battery on the fit-pc4 model
This document is derived from the Errata note -
It applies to models that has detachable non-rechargeable battery board design.
o
To determine, please check that D15 and R59 parts, below the RAM socket, were removed, see illustration below :
Instructions
Fit-pc4 battery replacement guide
http://fit-pc.com/wiki/index.php/Fit-PC4_RTC_Battery_Erratum
Hayetsira St. 17, Yokneam, Israel
Place your FIT-PC4 upside down, so you can
easily access service door
Tel:
+972-48-290-100
Fax:
+972-48-325-251
www.compulab.co.il
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CompuLab Fit-pc4
Summary of Contents for CompuLab Fit-pc4
- Page 1 +972-48-325-251 www.compulab.co.il 21-Nov-18 Fit-pc4 battery replacement guide This document instructs to replace an RTC backup battery on the fit-pc4 model This document is derived from the Errata note - http://fit-pc.com/wiki/index.php/Fit-PC4_RTC_Battery_Erratum It applies to models that has detachable non-rechargeable battery board design.
- Page 2 Tel: +972-48-290-100 Fax: +972-48-325-251 www.compulab.co.il Remove the service door from FIT-PC4. Remove four Philips screws at the FIT-PC4 corners and carefully detach the back panel. Remove the face module’s Philips screw, and detach the face module by lifting it up...
- Page 3 Hayetsira St. 17, Yokneam, Israel Tel: +972-48-290-100 Fax: +972-48-325-251 www.compulab.co.il Now you have easy access to the RTC backup battery, attached to the P32 connector. To remove the battery, you need slightly to lift up the battery plug attached to the P32 connector and pull away the plug from the P32 connector.
