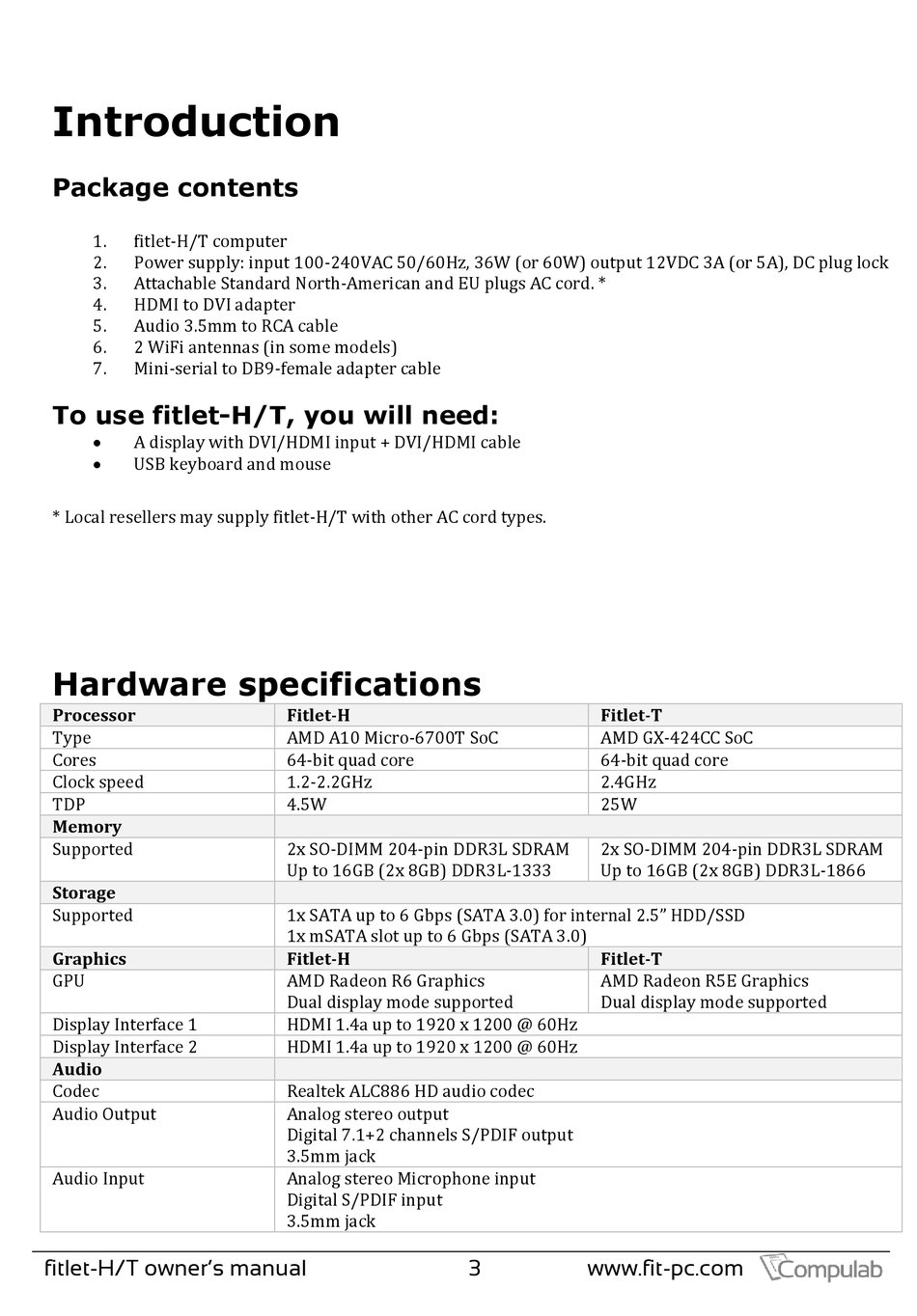

Introduction

Package contents

1. fitlet-H/T computer
2. Power supply: input 100-240VAC 50/60Hz, 36W (or 60W) output 12VDC 3A (or 5A), DC plug lock
3. Attachable Standard North-American and EU plugs AC cord. *
4. HDMI to DVI adapter
5. Audio 3.5mm to RCA cable
6. 2 WiFi antennas (in some models)
7. Mini-serial to DB9-female adapter cable
To use fitlet-H/T, you will need:

A display with DVI/HDMI input + DVI/HDMI cable

USB keyboard and mouse
* Local resellers may supply fitlet-H/T with other AC cord types.

Hardware specifications

Processor
Type
Cores
Clock speed
TDP
Memory
Supported
Storage
Supported
Graphics
GPU
Display Interface 1
Display Interface 2
Audio
Codec
Audio Output
Audio Input
fitlet-H/T owner's manual
Fitlet-H
AMD A10 Micro-6700T SoC
64-bit quad core
1.2-2.2GHz
4.5W
2x SO-DIMM 204-pin DDR3L SDRAM
Up to 16GB (2x 8GB) DDR3L-1333
1x SATA up to 6 Gbps (SATA 3.0) for internal 2.5" HDD/SSD
1x mSATA slot up to 6 Gbps (SATA 3.0)
Fitlet-H
AMD Radeon R6 Graphics
Dual display mode supported
HDMI 1.4a up to 1920 x 1200 @ 60Hz
HDMI 1.4a up to 1920 x 1200 @ 60Hz
Realtek ALC886 HD audio codec
Analog stereo output
Digital 7.1+2 channels S/PDIF output
3.5mm jack
Analog stereo Microphone input
Digital S/PDIF input
3.5mm jack
Fitlet-T
AMD GX-424CC SoC
64-bit quad core
2.4GHz
25W
2x SO-DIMM 204-pin DDR3L SDRAM
Up to 16GB (2x 8GB) DDR3L-1866
Fitlet-T
AMD Radeon R5E Graphics
Dual display mode supported
